FUJITSU MPA3043AT User Manual
Page 144
C141-E034-02EN
5 - 83
5.6.4.6 Host terminating an Ultra DMA data in burst
5.6.4.2 contains the values for the timings for each of the Ultra DMA Modes.
Note: The definitions for the STOP, HDMARDY and DSTROBE signal lines are no longer in
effect after DMARQ and DMACK are negated.

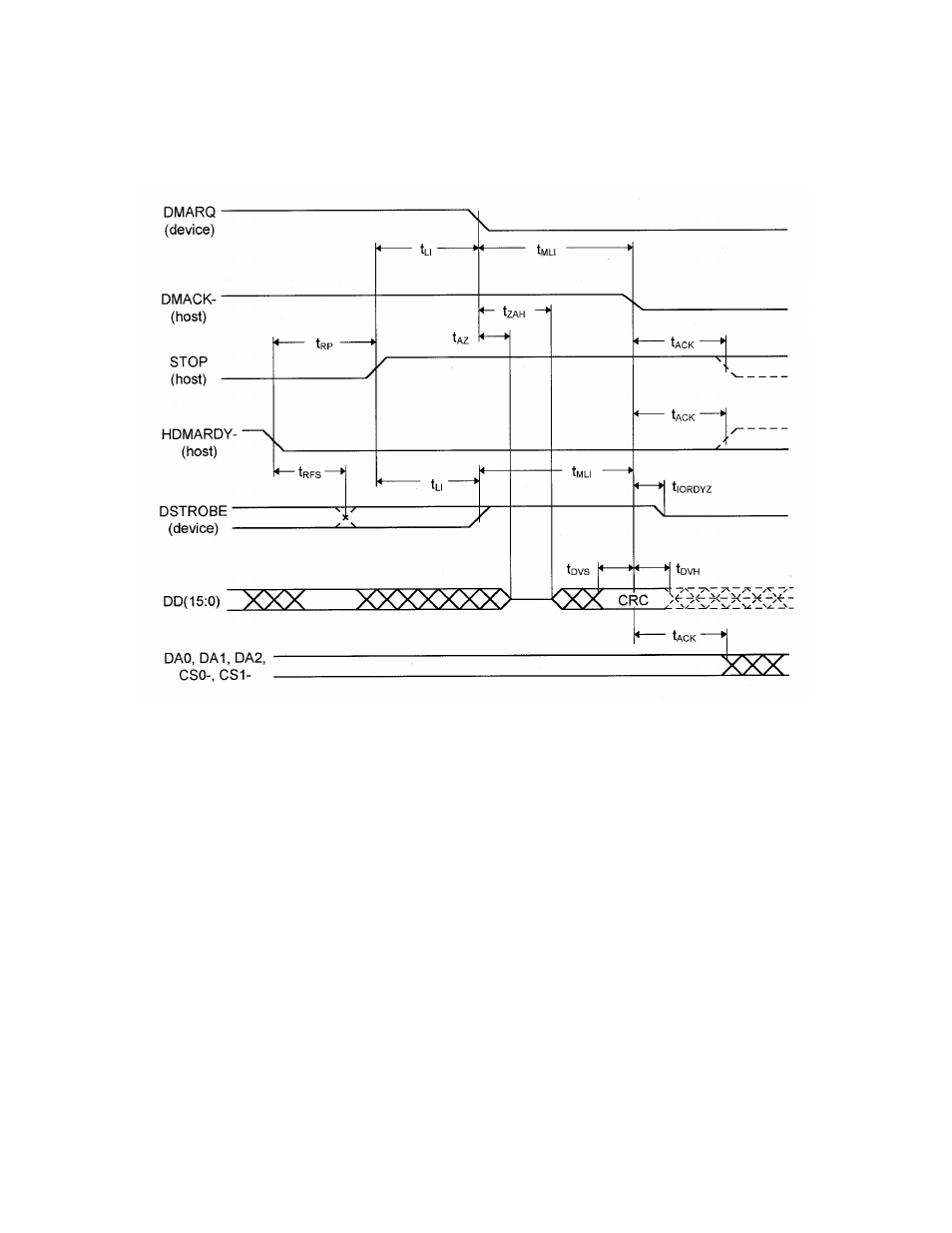

Figure 5.16 Host terminating an Ultra DMA data in burst
