5.6.4.7 Initiating an Ultra DMA data out burst
5.6.4.2 contains the values for the timings for each of the Ultra DMA Modes.
Note: The definitions for the STOP, DDMARDY and HSTROBE signal lines are not in effect
until DMARQ and DMACK are asserted.

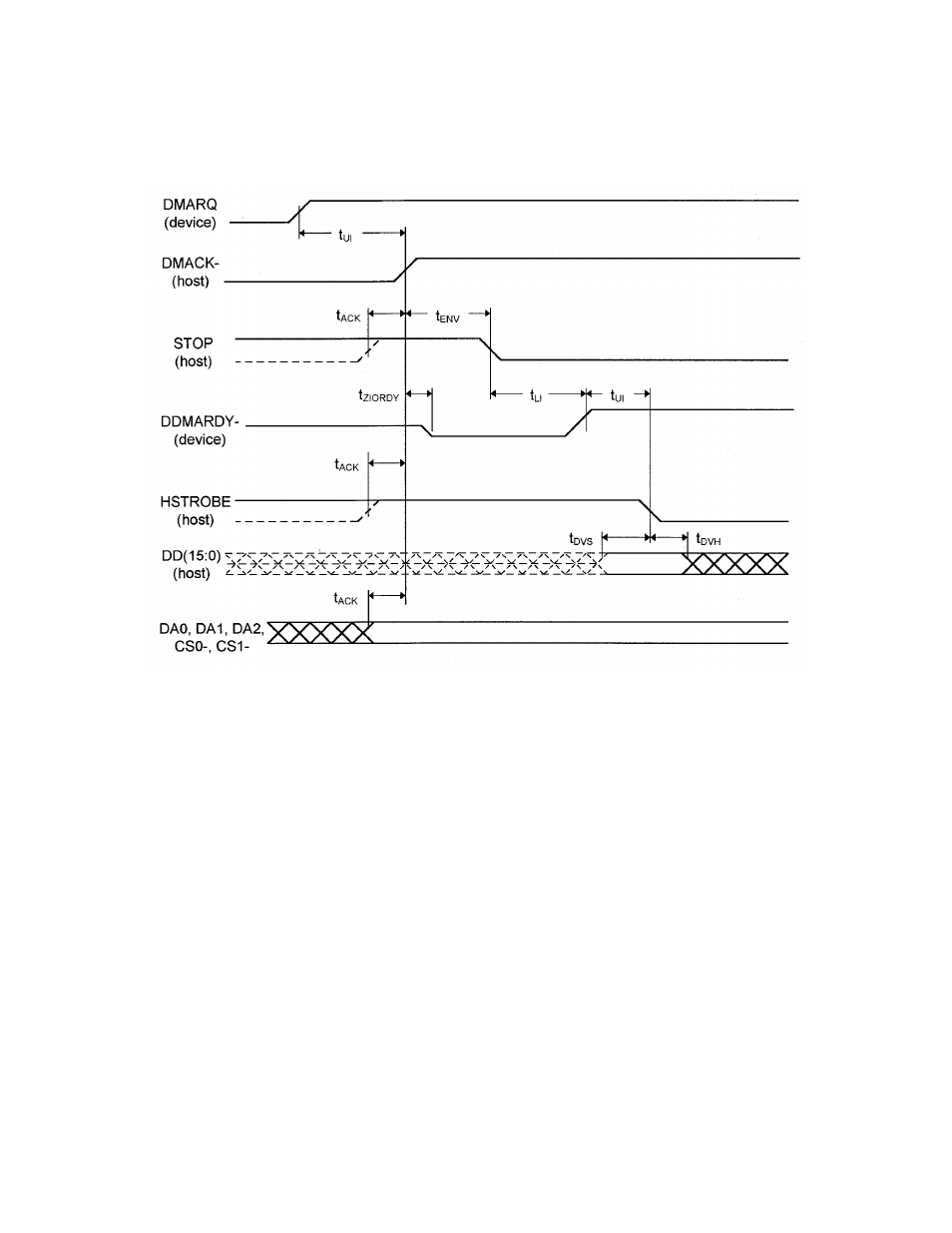

Figure 5.17 Initiating an Ultra DMA data out burst
