Setting the VM200 as Master or Slave
VM200 User’s Guide
163
3.
Press the
[ENTER]
key to confirm your selection.
The VM200 displays the previous function page.
4.
If you select any option other than “INT44” in step 2, and the
VM200 is the last device in the word clock chain, turn the
WORD IN Termination ON/OFF switch to ON on the rear
panel.
Setting the VM200 as Master or Slave
The following examples illustrate the VM200 in various recording
configurations, being used as both word clock master and word clock
slave.

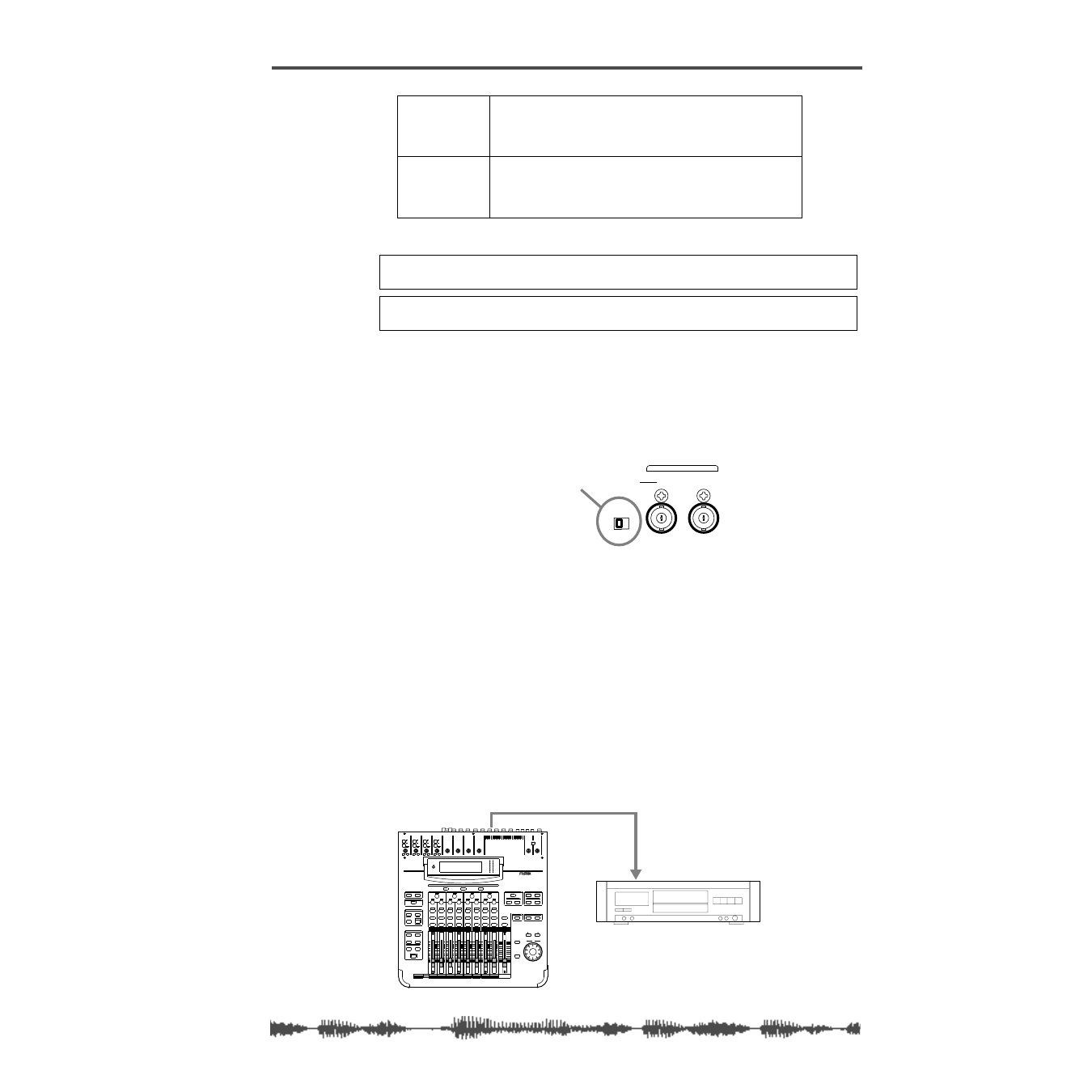

Recording to a Digital Multitrack Recorder or DAT
In this example, a stereo signal is recorded to a DAT recorder. The
VM200 is the word clock master; the DAT recorder is the word clock
slave. Set the Master Word Clock parameter on the VM200 to “INT44.”
The VM200 will generate the word clock and the DAT recorder will
slave to it.
VM200 is the word clock MASTER
WORD44
Select this option to use the VM200 as a word clock slave,
syncing to the clock from a connected FOSTEX VR800
digital multitrack recorder, or a digital device equipped with
a WORD OUT connector, running at 44.1kHz.
WORD48
Select this option to use the VM200 as a word clock slave,
syncing to the clock coming from a connected digital
device equipped with a WORD OUT connector that is run-
ning at 48kHz.
Caution:
Selecting an inappropriate sampling frequency will interfere
with normal recording and playback.
Note:
If the VM200 is only the digital device in your system, use the
default setting of INT44.
