Page 29
2-6

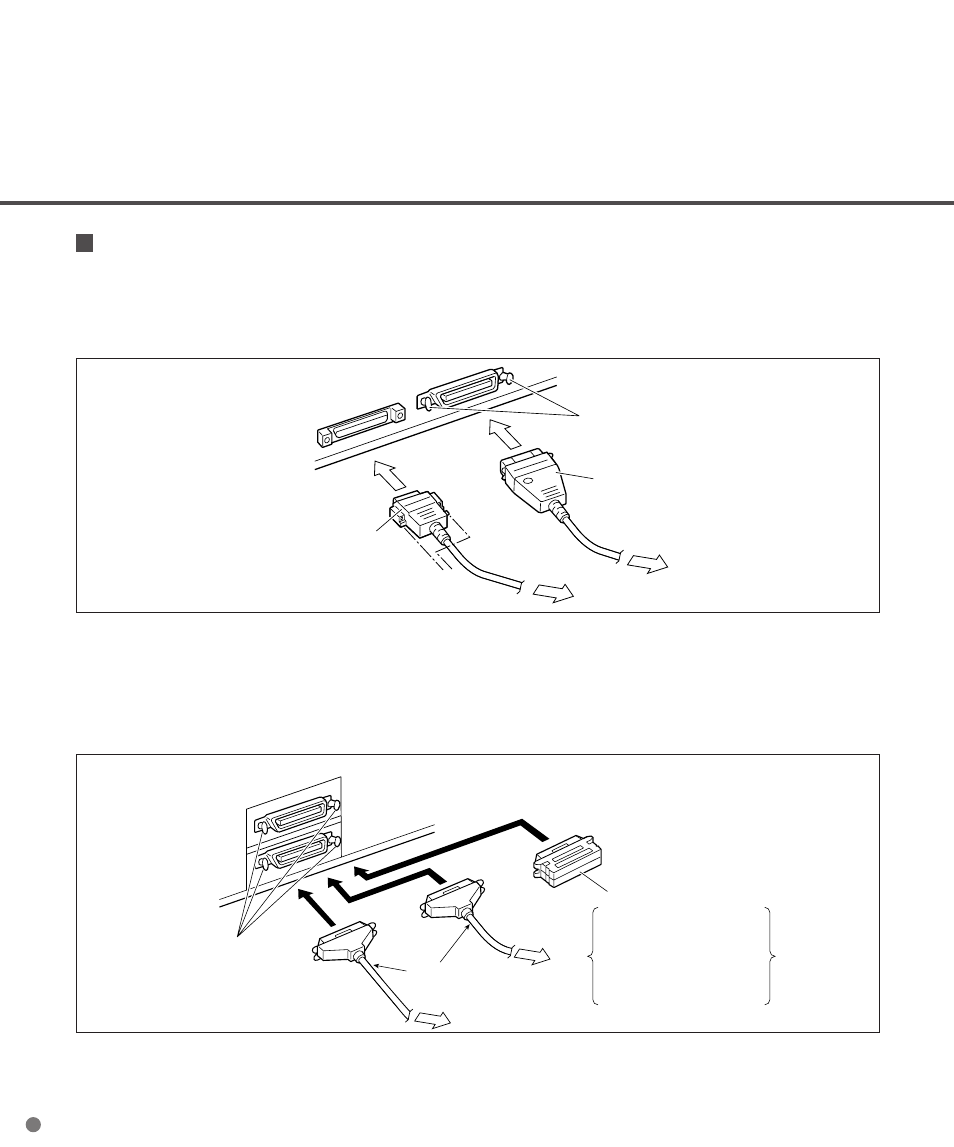

Connecting the interface cable
(M3097DE)
Connect the video interface and RS-232C interface cables and secure them with hooks and screws.
Connect the other ends to the host machine.
(M3097DG)
Connect the SCSI interface cables and secure them with hooks and connect the other ends to the host
machine. When the scanner is at the terminal side, connect the terminator to the connector to which an
interface cable is not connected.
Catches
Interface cable for video
Interface cable for RS232C
Back of the image scanner
To the host system
Screws
Terminator
If the image scanner is at
the terminal side, connect
the terminator to the
connector to which an
interface cable is not
connected.
Back of the image scanner
Catches
Interface cables
To
the host
system
