1-3
No.
Function
q
Document cover:
Closed over and holds a document to be read.
w
Document bed:
A document to be read is placed on the bed also called
Flatbed (FB).
e
Document holding pad:
Presses a document to the document bed.
r
Automatic document feeder (ADF):
Automatically feeds documents to the reading position.
t
Stacker:
Stacks the read documents.
y
Power switch:
Turns the power on or off.
u
Operator panel:
The indication panel indicates the status of the scanner.
i
ADF paper chute:
Holds the documents to be fed by the automatic
document feeder.
o
ADF lever:
Opens or closes the automatic document feeder to
remove documents jammed in the feeder.
!0
Power inlet:
To be connected to an AC power outlet with the power
cable.
!1
Interface connectors:
To be connected to the host system with interface cables.
!2
Third party slot:
Reserved. (M3097DE)
!3
Memory cover:
Reserved.

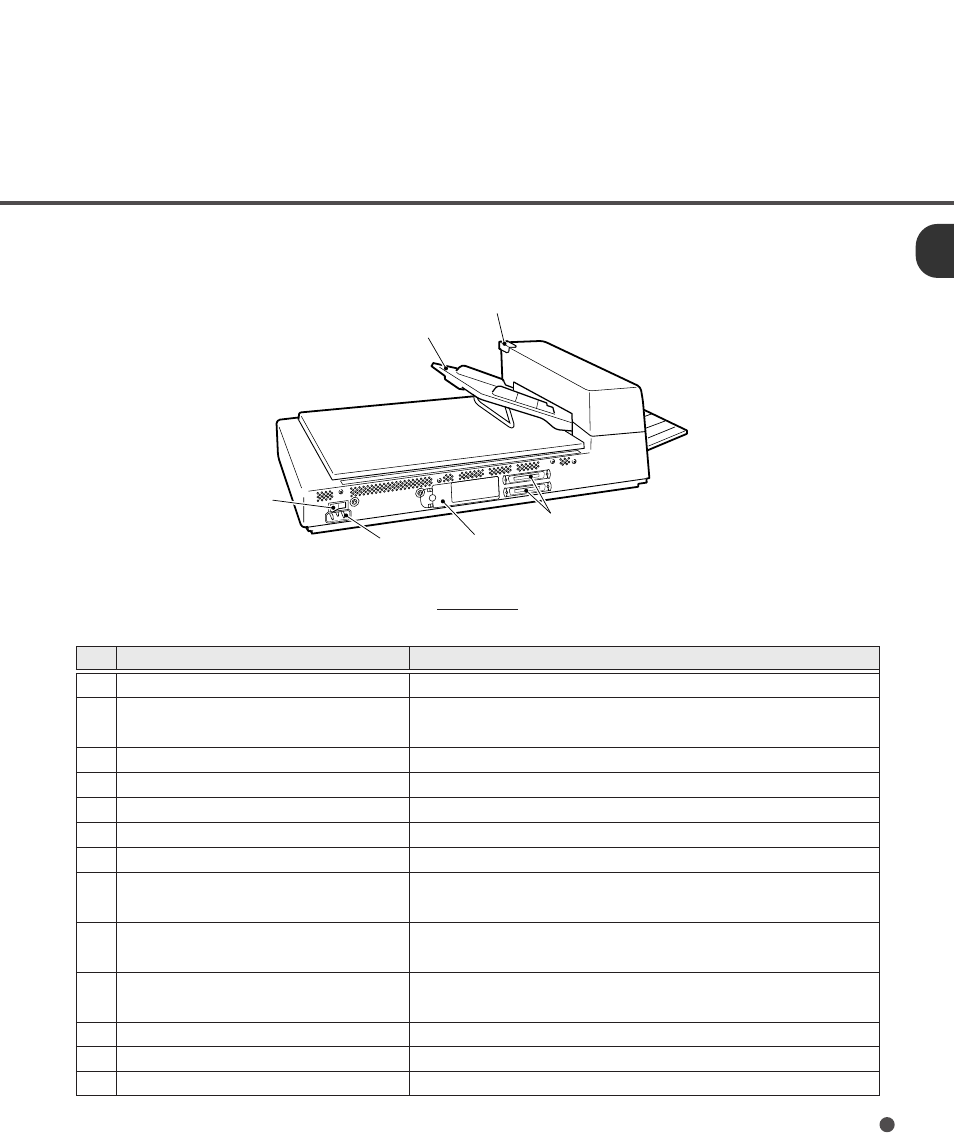

M3097DG
o
ADF lever
i
ADF paper chute
y
Power switch
!0
Power inlet
!1
Interface connectors
!3
Memory cover
