2. MENU OPERATION
2-13

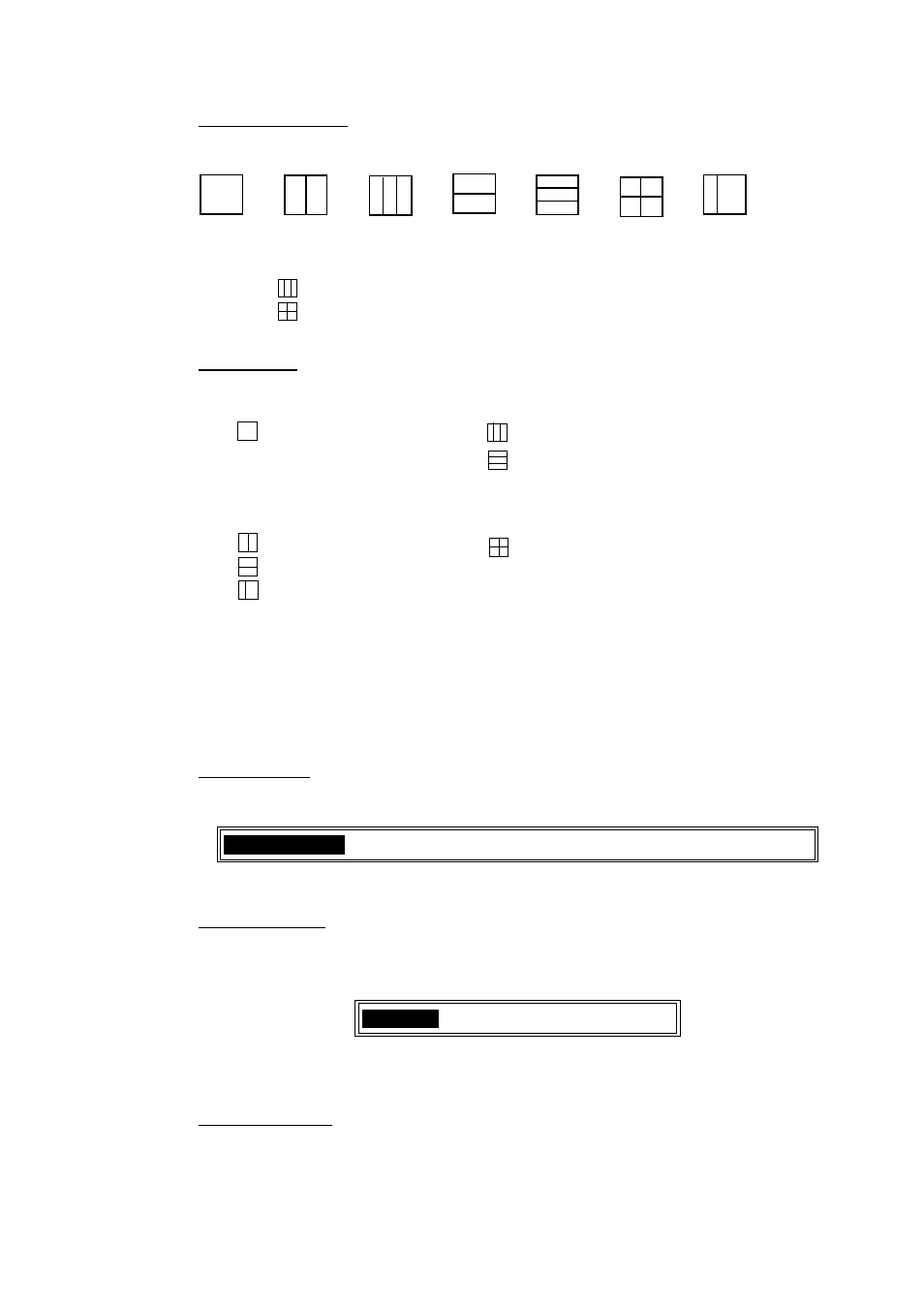

SCREEN LAYOUT
Chooses the screen division layout among the patterns shown below.
The default settings are as follows:
USER-1:
( [LF]+[HF] +[MIX])
USER-2: ([LF]Zm/Nor+[HF]Zm/Nor)
DISP MODE
Chooses the picture to display in respective screen layout.
[HF]:Normal
[LF]:Normal
[HF]:Zoom
[LF]:Zoom
[MIX]:Normal
[HF]:Zm/Nor
[LF]:Zm/Nor
[LF]+[HF]
[LF]:Zm+[HF]:Zm
[HF]+[MIX]
[LF]+[MIX]
[LF]+[HF]:Zm/Nor
[LF]:Zm/Nor+[HF]
[LF]+[HF]+[MIX]
[LF]:Zm/Nor+[HF]:Zm/Nor
HF: high frequency LF: low frequency
NOR: normal ZM: zoom
MIX: mix
ZOOM MODE
Chooses the zoom mode to use.
BOTTOM LOCK BOTTOM ZOOM MARKER ZOOM DISCRIM-1/2 DISCRIM-1/3
Zoom mode choices
TARGET ECHO
Chooses the target echo from normal, surface, squid and deep sea. For details,
see page 3-10.
NORMAL SURFACE SQUID DEEP SEA
Target echo choices
NAV DATA DISP
Nav data may be displayed at the left or right half of the screen, or turned off.
