1. OPERATIONAL OVERVIEW
1-2

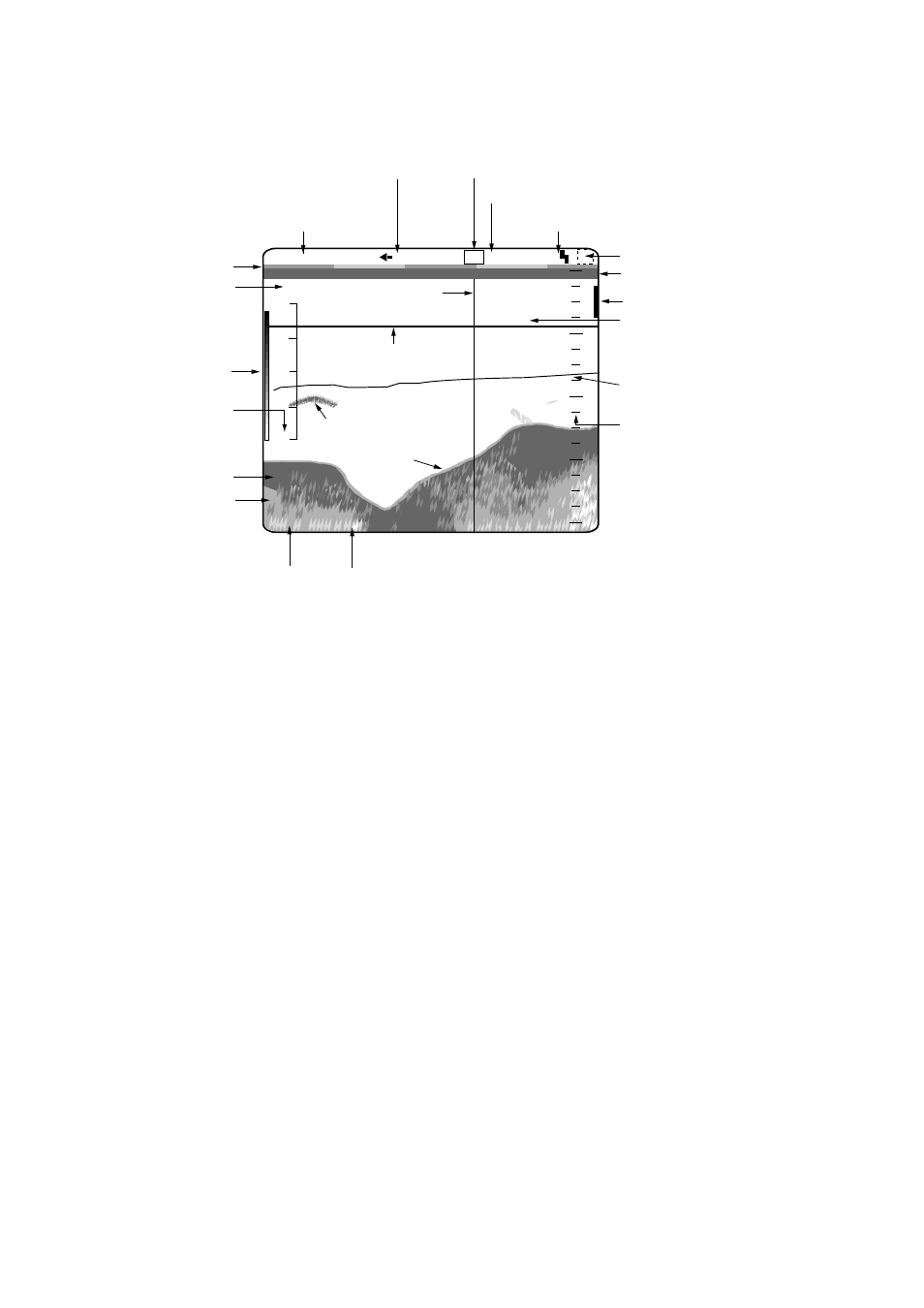

1.2 Indications
20
40
60
80
0
N1 5.30
°
C
10
° C
5
0
0H01M
49.6
m
17.8kt
1'21"
19.7
LF 1/1 0
Bottom
echo
Fish school
Depth scale
Depth to VRM
Water temperature graph*
*: Appropriate sensor
required.
Shift
Zero line
Alarm marker
Alarm type
Frequency
Noise limiter
Picture advance speed
Minute marker
Water temperature*
Elapsed time
(From pressing
MARKER/TLL
key)
Marker
line
VRM
Temperature scale*
Color bar
Depth
Ship's speed*
Scroll time
Transducer power reduction
Indications
1.3 Turning the Power On/Off
1. Press the [PWR] key. A beep sounds, and then the power turns on.
2. Press the [PWR] key again to turn the power off.
Note 1: Wait five seconds before turning on the power again.
Note 2: The example screens shown in this manual may not match the screens
you see on your display. The screen you see depends on your system
configuration and equipment settings.
