6 External speaker output terminal (EXT SP)
Connect this terminal to the optionally available speaker.
When connecting a cable, attach a ferrite core to the cable. (See P. E-13.)
*See the speaker instruction manual for more information.
7 Audio1 input terminal (AUDIO1 INPUT)
8 Audio2 input terminal (AUDIO2 INPUT)
9 Audio3 input terminal (AUDIO3 INPUT)
Connect this terminal to the sound output terminal of your VCR, etc. (See P.E-36 for the selection of audio input for video input.)
0 Component video input terminal (VIDEO3 INPUT)
Connect this terminal to the component video output (color difference output) terminal of your HDTV unit or DVD player.
A S-Video input terminal (VIDEO2 INPUT)
Connect this terminal to the S-video output terminal of your VCR.
B Video input terminal (VIDEO1 INPUT)
Connect this terminal to the video output terminal of your VCR.
C Component video input terminal (VIDEO4 INPUT)
Connect this terminal to the component video output (color difference output) terminal of your HDTV unit or DVD player.

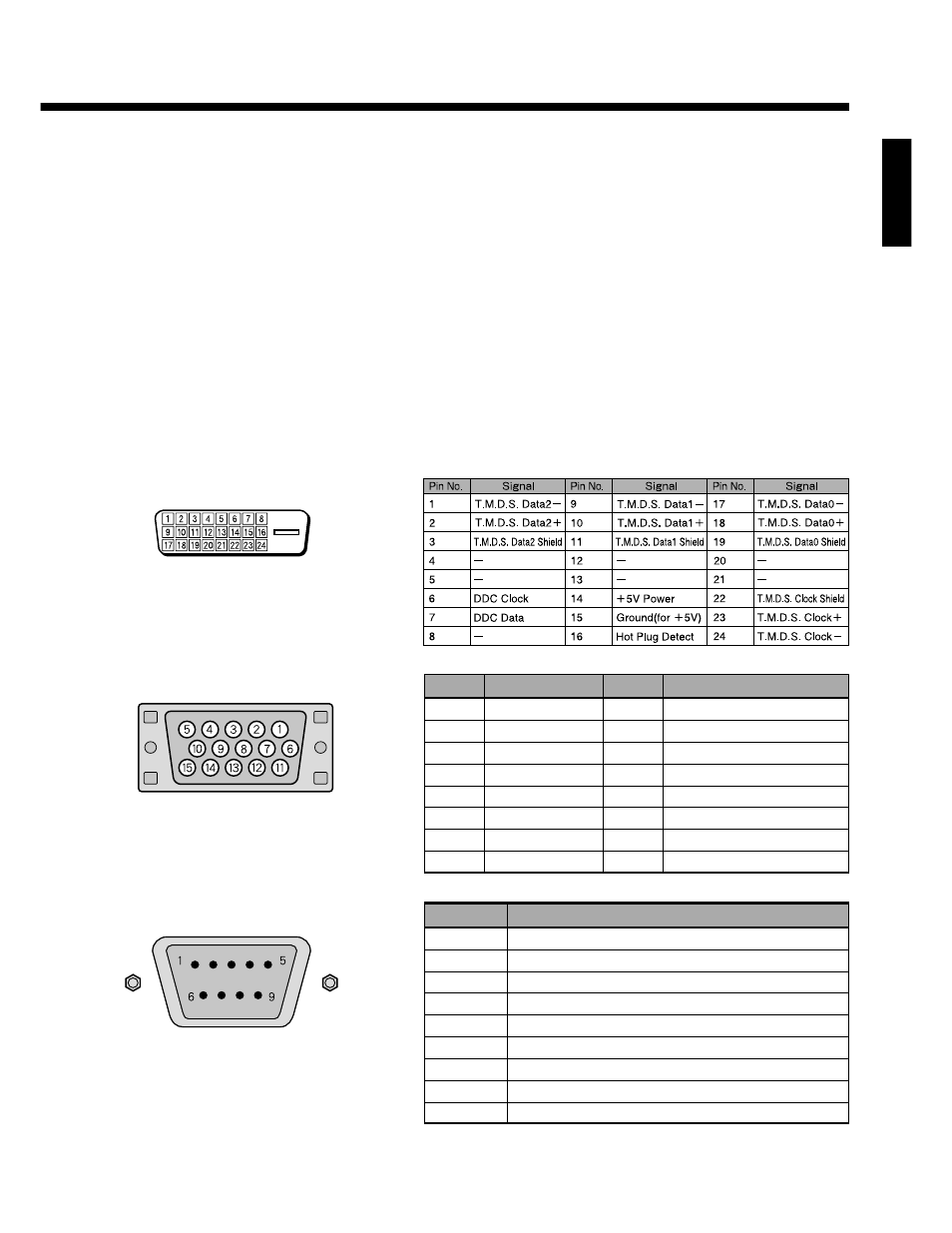

Description of Input Terminals
DVI-D terminal (RGB1 INPUT/DVI-D)
Pin No. Input signal Pin No. Input signal
1 Red 9 —
2 Green 10 Ground
3 Blue 11 —
4 — 12 —
5 Ground 13 Horizontal synchronization
6 Ground 14 Vertical synchronization
7 Ground 15 —
8 Ground Frame Ground
RGB2 input terminal (RGB2 INPUT/mD-sub)
Pin No. Signal
1 DCD (Data Carrier Detect)
2 RD (Received Data)
3 TD (Transmit Data)
4 DTR (Data Terminal ready)
5 GND (Ground)
6 DSR (Data Set Ready)
7 RTS (Request To send)
8 CTS (Clear To Send)
9 RI (Ring Indication)
RS-232C terminal (RS-232C)
