E-8
1 /I power switch
When pressed while in the “OFF” state, the power indicator lamp lights and the display is placed in the “ON ” state, and the power
can be turned “ON” or “OFF” by the remote control or on the control panel of the display. When pressed while in the “ON ” state,
the power indicator lamp goes out and the display is placed in the “OFF” state where power is still partly supplied.
2 RS-232C terminal (RS-232C)
This terminal is provided for you to control the display from the PC. Connect it to the RS-232C terminal on the PC.
When connecting a cable, attach a ferrite core to the cable. (See P. E-13.)
3 RGB1 input terminal (RGB1 INPUT/DVI-D)
Connect this terminal to the PC’s display (digital RGB) output terminal.
*The connection cable No.88741-8000 made by molex Inc. is recommanded.
4 RGB2 input terminal (RGB2 INPUT/mD-sub)
Connect this terminal to the PC’s display (analog RGB) output terminal or decoder (digital broadcast tuner, etc.) output terminal.
5 Power input terminal
Connect this terminal to the power cable supplied with the display.
When connecting a cable, attach a ferrite core to the cable. (See P. E-13.)
PART NAMES AND FUNCTIONS (Continued)

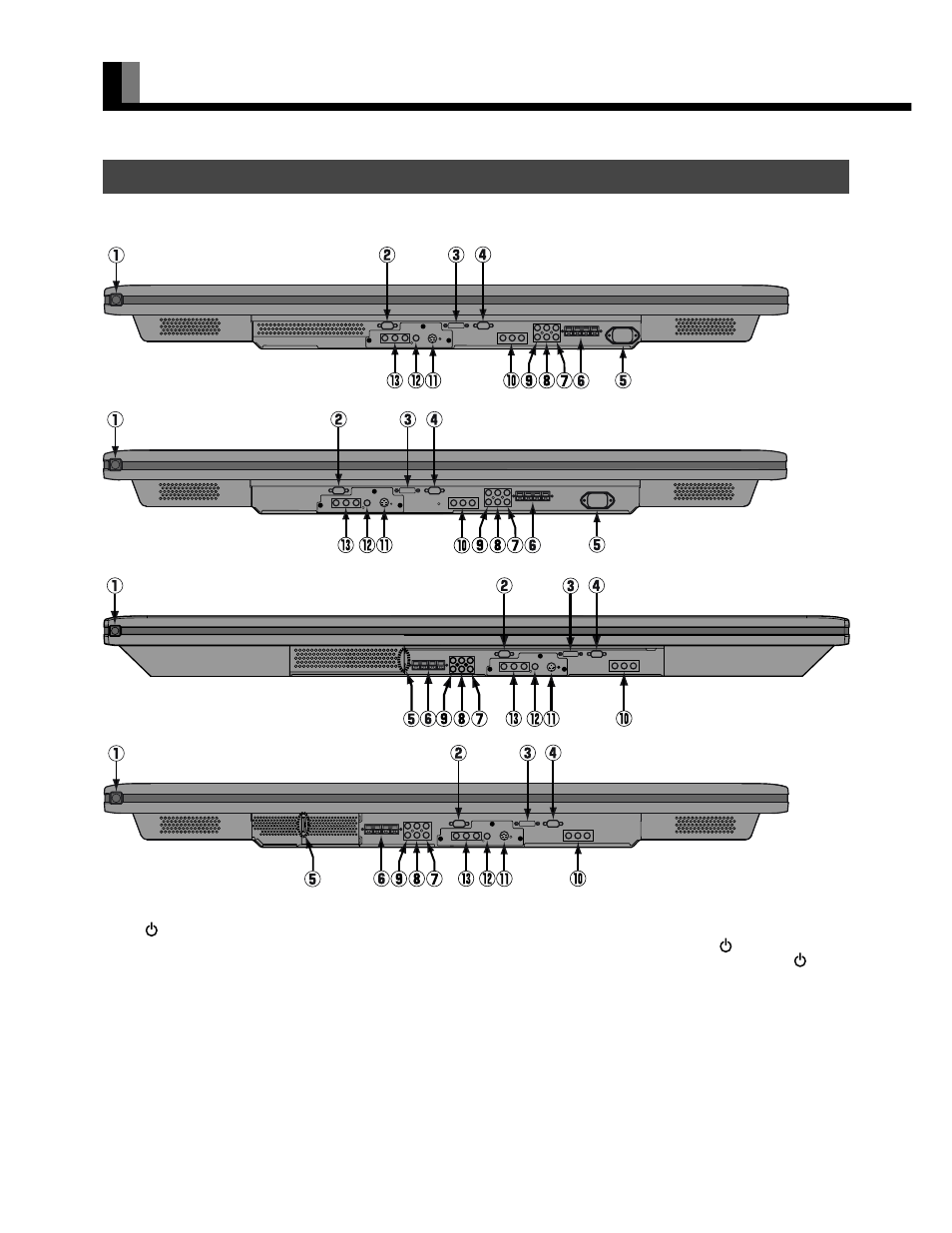

DISPLAY SECTION – LOWER PART
Bottom (P42VHA10 type)
Bottom (P42HHA10 type)
Bottom (50”)
Bottom (P42VHA20 type)
