PART NAMES AND FUNCTIONS
DISPLAY SECTION – FRONT
1 Power indicator lamp
This lamp shows the state of the power supply.
Lit (red):
Stand-by
Lit (green):
Power ON
Lit (orange):
Power saving (DPMS: Power saving
function) mode ON (See P. E-36.)
Flashing (red): Malfunction (Flashes differently depending
on the type of malfunction. See P. E-45 for
more information.)
2 Remote control signal receiver
Receives signals from the remote control.
3 Input mode selector button [MODE]
4 Input mode selector button [MODE]
Switches between picture input modes.
5 VOL + button
6 VOL – button
Adjusts the sound volume.
7 Wide screen selector button [WIDE]
Switches the screen over to a desired wide screen.
8 ON/OFF button
Turns the power “ON” and “OFF (standby state)”.
Warning
If the power indicator lamp flashes red, this signifies that the display has developed a problem. When this happens, be sure to remove the
power plug from the receptacle and contact your dealer. Leaving the display power ON can result in fire or electric shock.
(Right section)

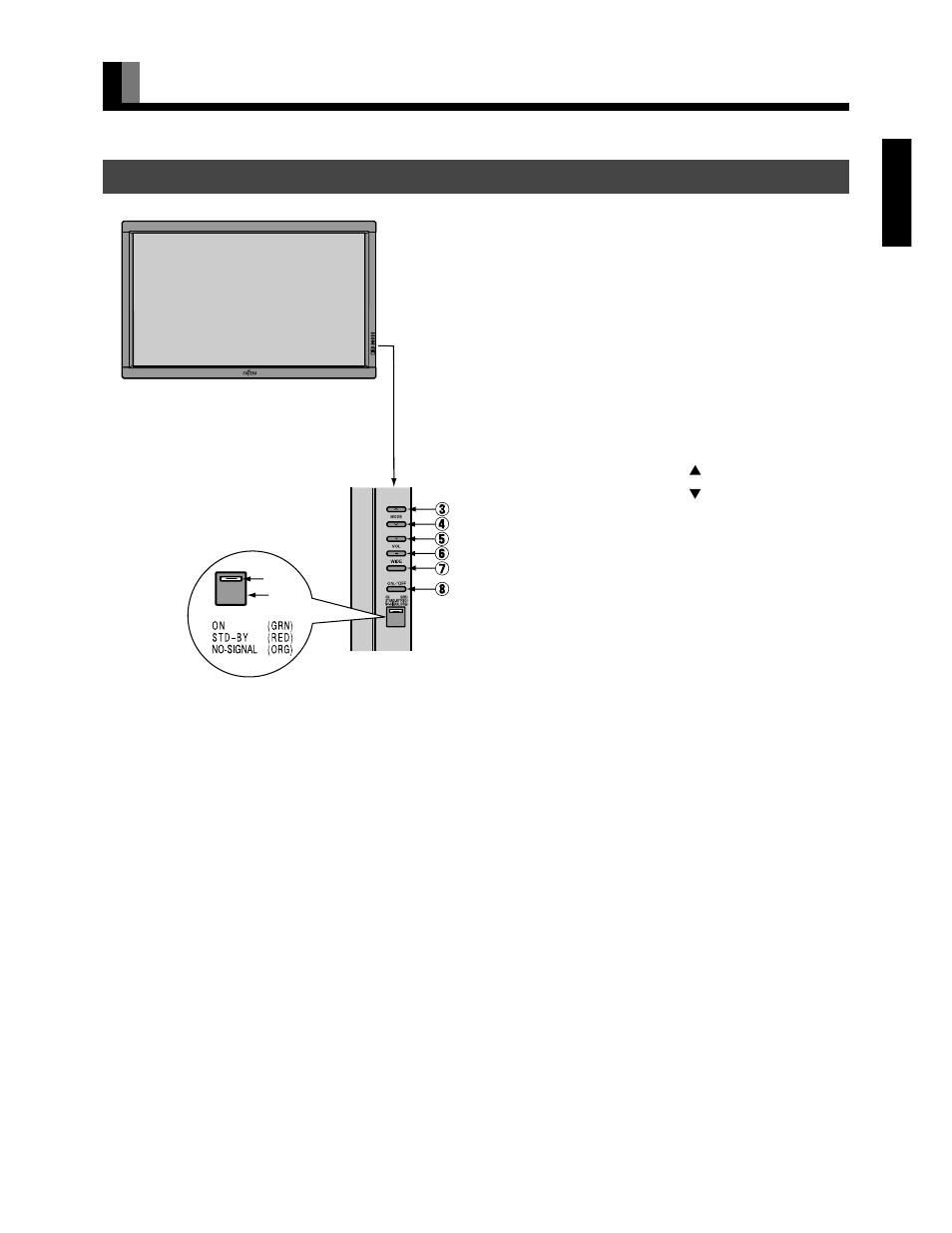

Control Panel (Right side of display)
