VCR

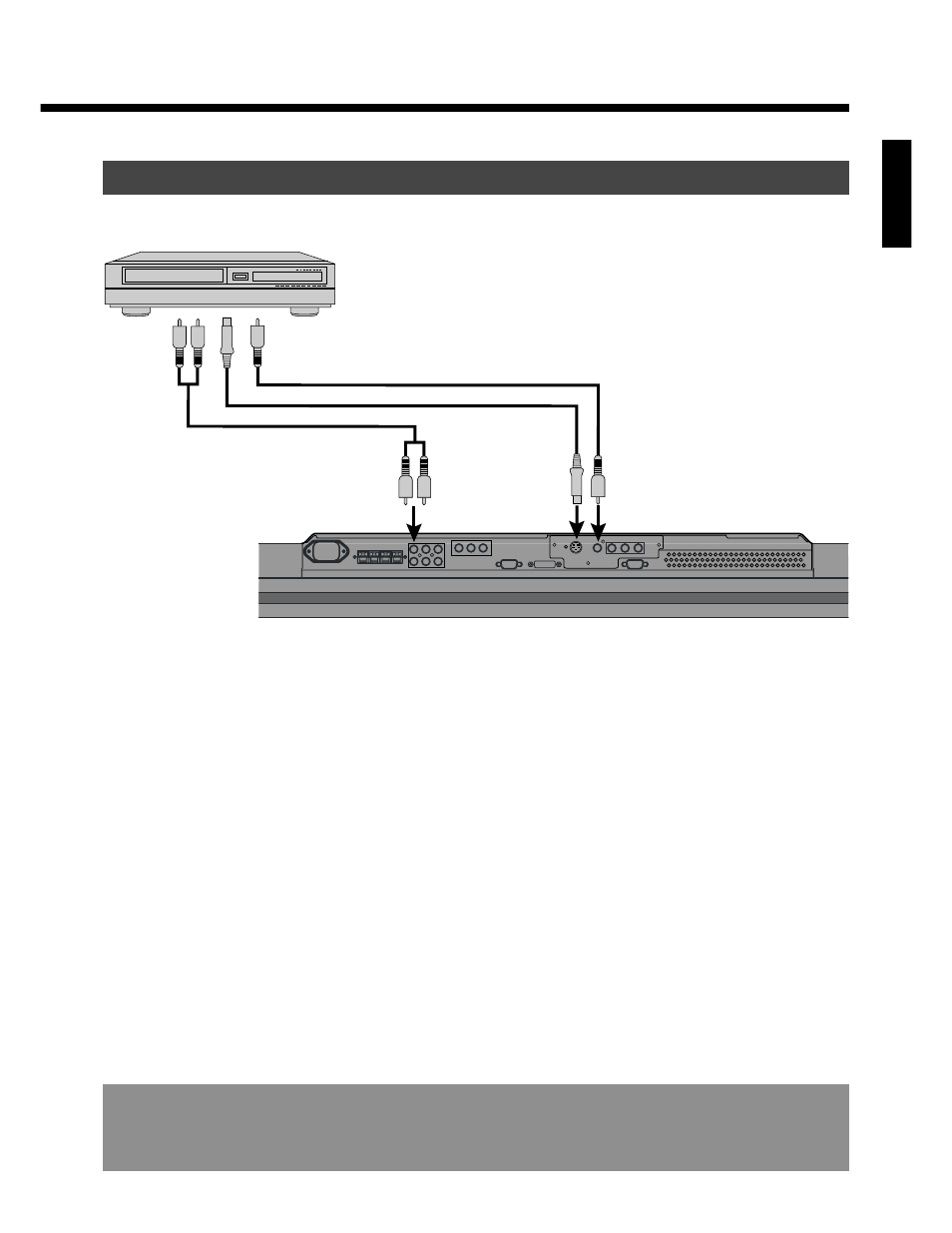

• Connect the video signal cable to either the S-video input terminal or the video input terminal.
To video output
To video input
Bottom of Display (Ex.: P42VHA10)
Note
• Unplug the power cord from the AC outlet before you connect external components.
• Also refer to the instructions for the component to be connected.
• When inputting audio, connect to the terminals corresponding to the used video input or RGB input.
To S-video output
To audio
outputs
To audio inputs
To S-video input
