10

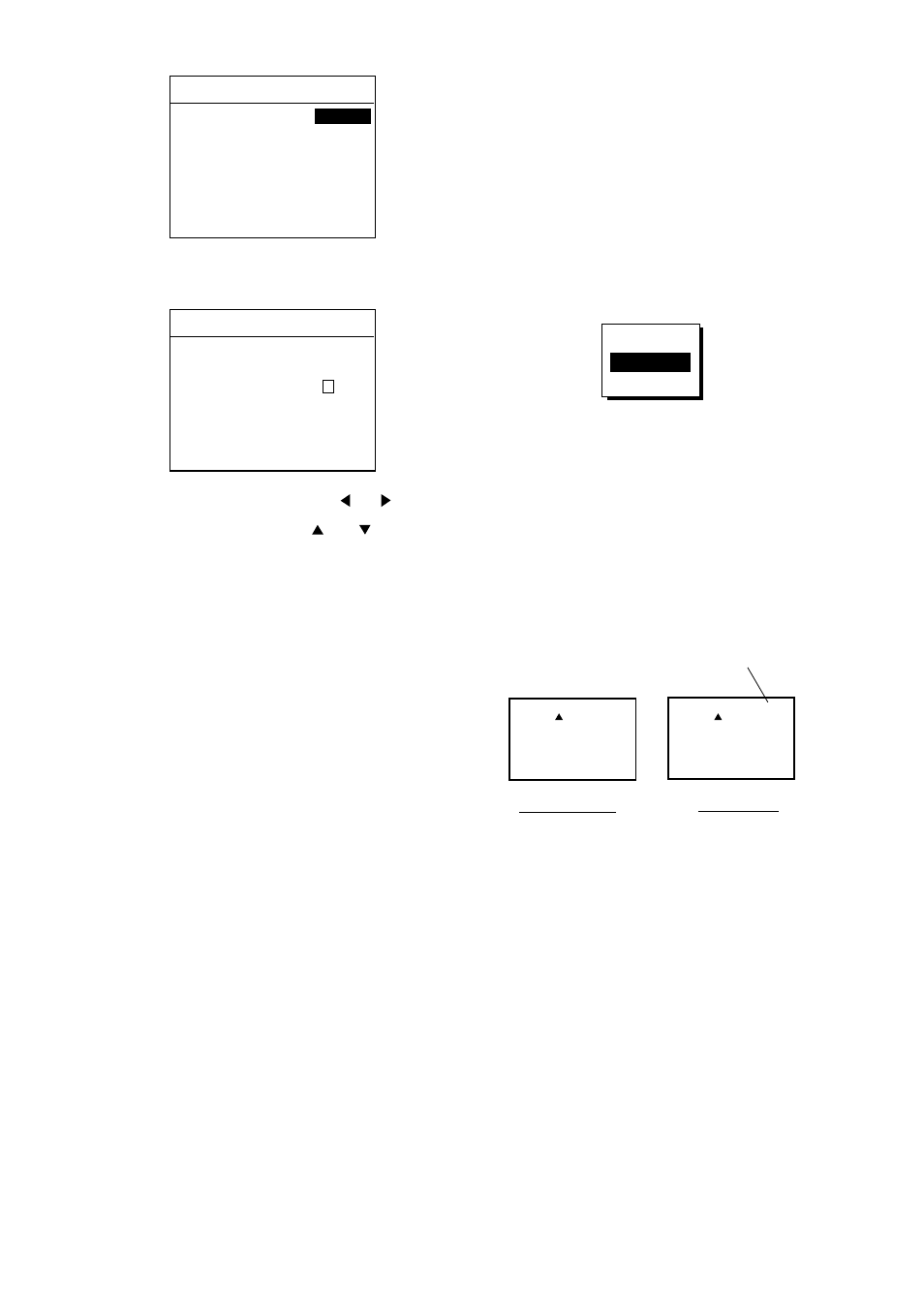

SYSTEM MENU
SHIP SPEED AVG 30 SEC
SPEED OFFSET +0.0%
TRACK DEPTH 2.0 m
XDR OFFSET +00˚
SPD DATA SELECT
DOPPLER
ENT: SET
2. Select TRACK DEPTH and press the
[ENT] key.
SYSTEM MENU
SHIP SPEED AVG 30 SEC
SPEED OFFSET +0.0%
TRACK DEPTH 2.0 m
XDR OFFSET +00˚
SPD DATA SELECT
DOPPLER
ENT: SET
3. Select the digit to change or and
change the value with or on the
Omnipad.
4. Press the [ENT] key.
5. Press the [MENU] key twice to close the
menu.
1.7.5 Transducer offset
Sets the deviation angle of the transducer’s
orientation with reference to the ship’s
longitudinal axis. This is done at installation;
no user adjustment is necessary.
1.7.6 Speed data selection
When the DS-80 fails to work as an SDME,
the display unit can be used as a monitor
display tool for a GPS speed or other
equipment measuring the ship’s speed.
1. Open the SYSTEM MENU.
2. Select SPD DATA SELECT and press
the [ENT] key.
GPS
DOPPLER
AUTO
3. Select the option GPS and press the
[ENT] key.
4. Press the [MENU] key twice to close the
menu.
See the illustration below for speed display
information. If the speed displayed is
unstable perform the check described in
paragraph 3.2.
SPEED STW
DISTANCE
nm
10.0
12.50
Doppler speed
SPEED GPS
DISTANCE
nm
10.0
12.50
GPS speed
GPS-measured
speed
kt kt
"AUTO" position indicates a Doppler speed
(SDME) but if the DS-80 fails, a GPS speed
will be indicated.
Note 1: If the log speed fails, the display
unit reads a GPS speed, but speed data will
not be output to other equipment.
Note 2: Doppler speed is used to calculate
speed when both DOPPLER and GPS are
abnormal in AUTO.
