C141-E078-02EN

4 - 12

4.3.2

Interface connector

The connector for the fibre channel loop bus is an unshielded SCA-2 connector conforming to
SCSI-3 type which has two 20-pin rows spaced 1.27 mm (0.05 inch) apart. Figure 4.12 shows the
fibre channel connector. See Section C.5 in Appendix C for signal assignments on the connector.

For details on the physical/electrical requirements of the interface signals, refer to Sections 1
Interface Specifications.

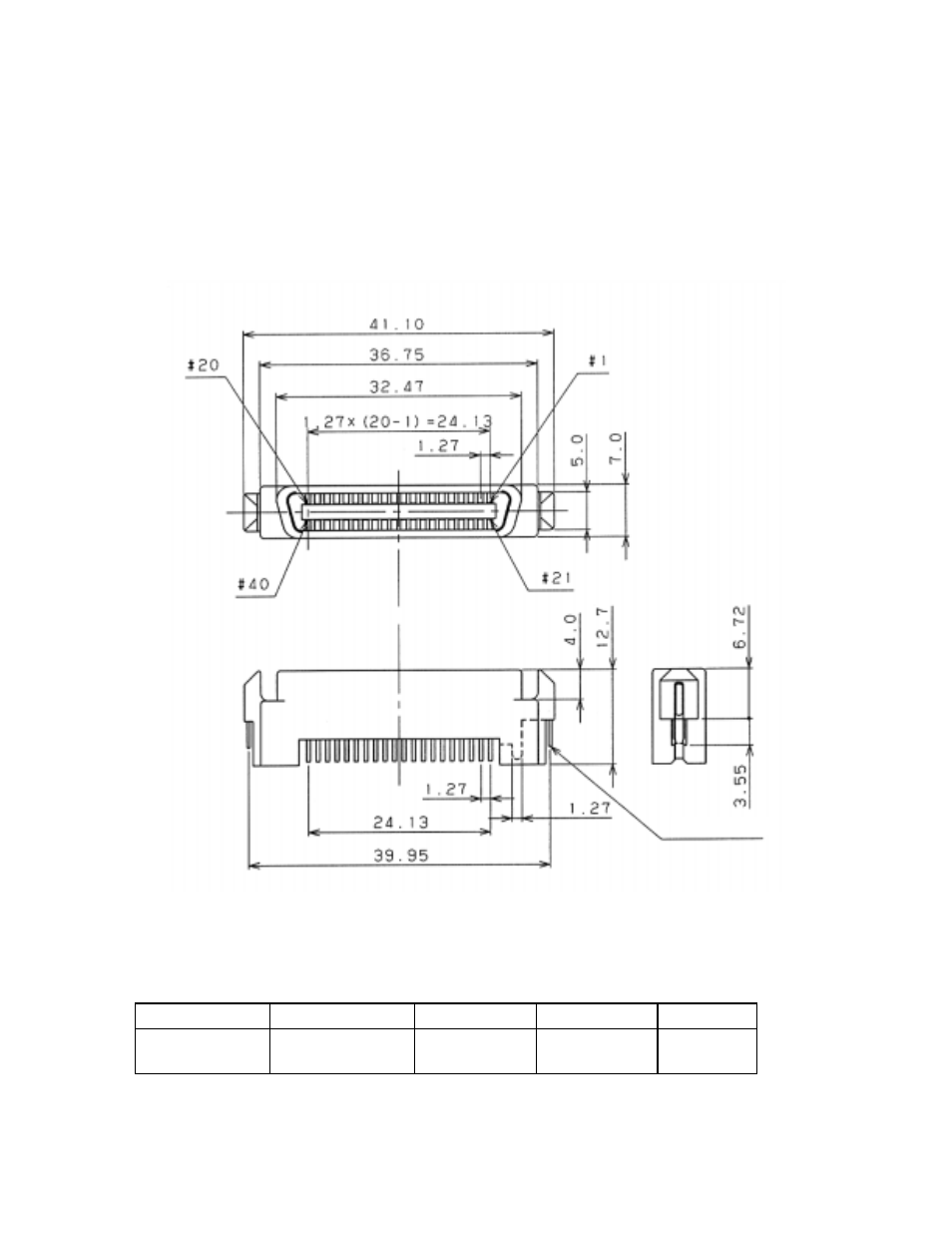

Figure 4.12 SCA2 type interface connector

4.3.3

Recommended components for connection

Applicable model

Name

Par number

Manufacturer

MAF3364FC
MAG series

Interface connector
(CN1)

Connector

787317-1

AMP

ESD contact
