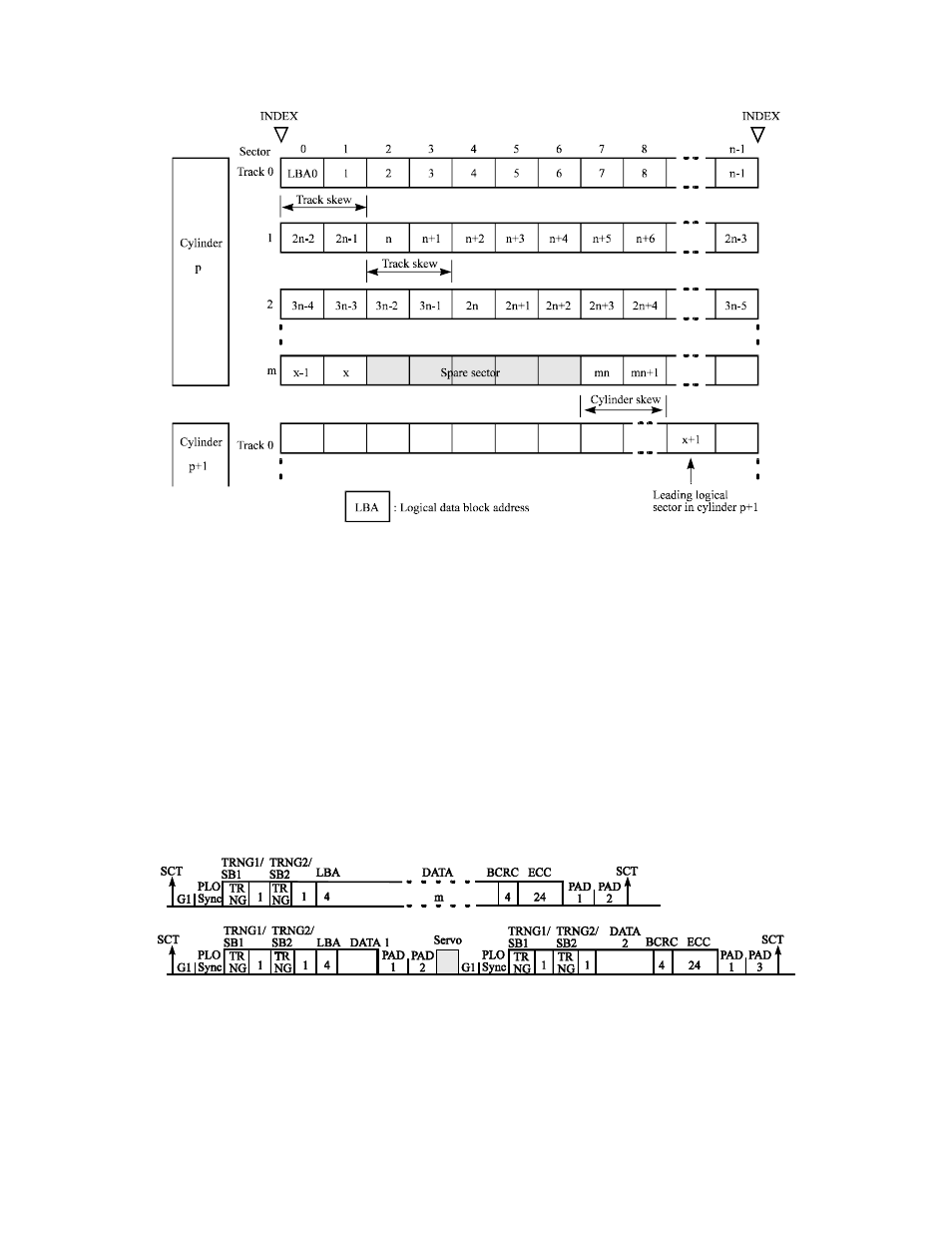

Figure 3.5 Track skew/cylinder skew
The number of physical sectors (track skew factor and cylinder skew factor) corresponding to the
skew time varies depending on the logical data block length because the track skew and the
cylinder skew are managed for individual sectors. The IDD automatically determines appropriate
values for the track skew factor and the cylinder skew factor according to the specified logical
data block length. The value can be read out by the MODE SENSE or MODE SENSE
EXTENDED command after the track has been formatted.
3.1.4 Sector format
Each sector on the track consists of an ID field, a data field, and a gap field which separates
them. Figure 3.6 and Table 3.3 gives sector format examples.
Figure 3.6 Sector format
G1: 8 bytes
PLO Sync: 17 bytes
TRNG1/SB1: 5 bytes
TRNG2/SB2: 6 bytes
PAD 1: 7 bytes
PAD 2: 8 bytes
PAD 3: 6 bytes
