FUJITSU MAG3091FC User Manual
Page 45
C141-E078-02EN
3 - 14
(2)
Alternate block allocation by REASSIGN BLOCKS command
When the REASSIGN BLOCKS command is specified, the alternate block is allocated to the
defective logical data block specified by the initiator by means of alternate sector treatment. If
there are unused spare sectors in the same cylinder as the specified defective logical data block,
the alternate block is allocated to these unused spare sectors. However, the alternate block is
allocated to unused spare sectors in the alternate cylinder when all spare sectors in the cylinder
are used up.

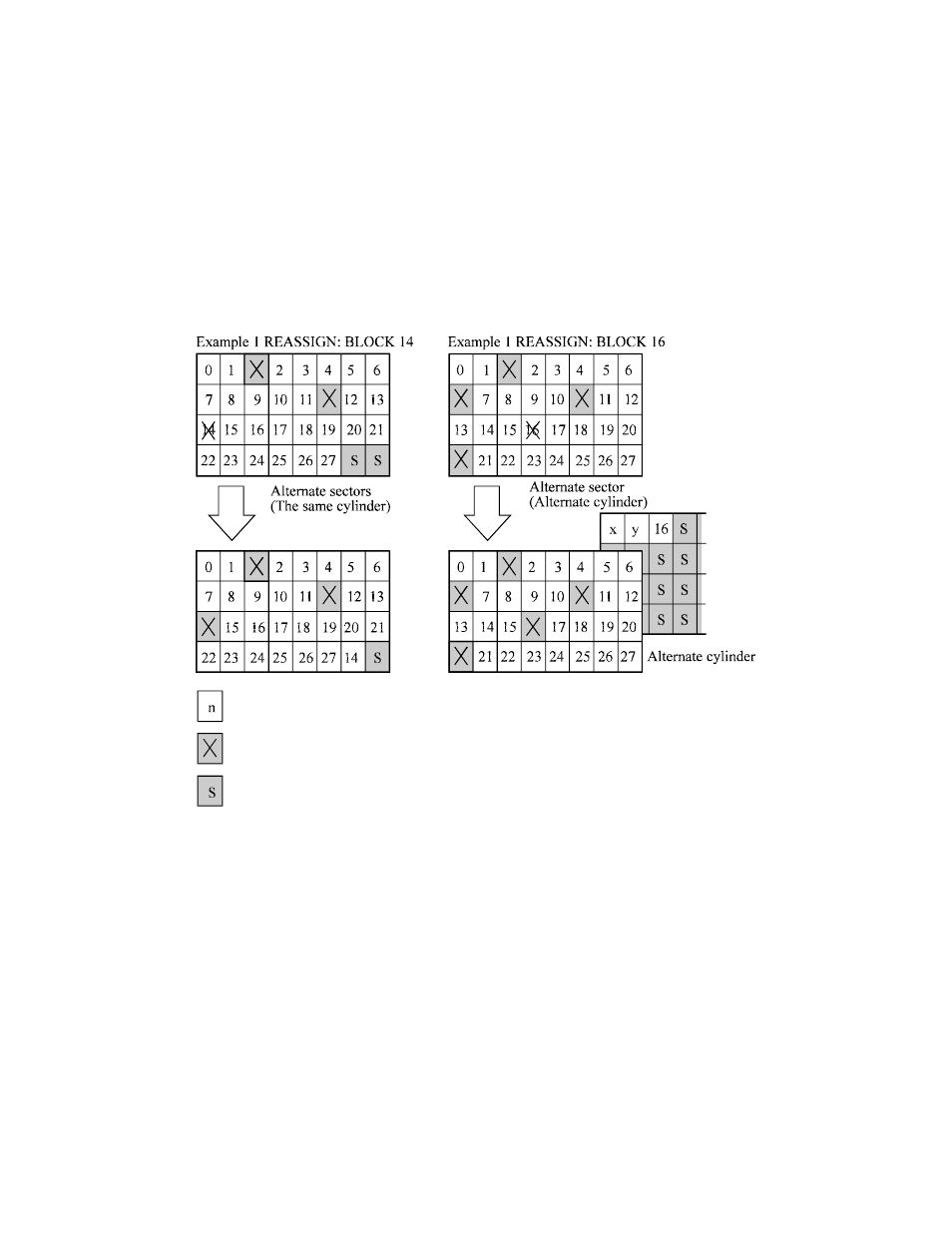

Figure 3.8 is examples of the alternate block allocation by the REASSIGN BLOCKS command.
Figure 3.8
Alternate block allocation by REASSIGN BLOCKS command
: Unused spare sector
: Defective sector
: n represents a logical data block number
