C141-E078-02EN 4 - 5
a) Use the frame with an embossed structure, or the like. Mount the IDD with making a
gap of 2.5 mm or more between the IDD and the frame of the system.
b) As shown in Figure 4.6, the inward projection of the screw from the IDD frame wall at
the corner must be 4 mm or less.
c) Tightening torque of screw must be secured with 6kg-cm or less.
d) Impact caused by the electric driver must be within the device specifications.
e) Must be handled on an anti-static mat.

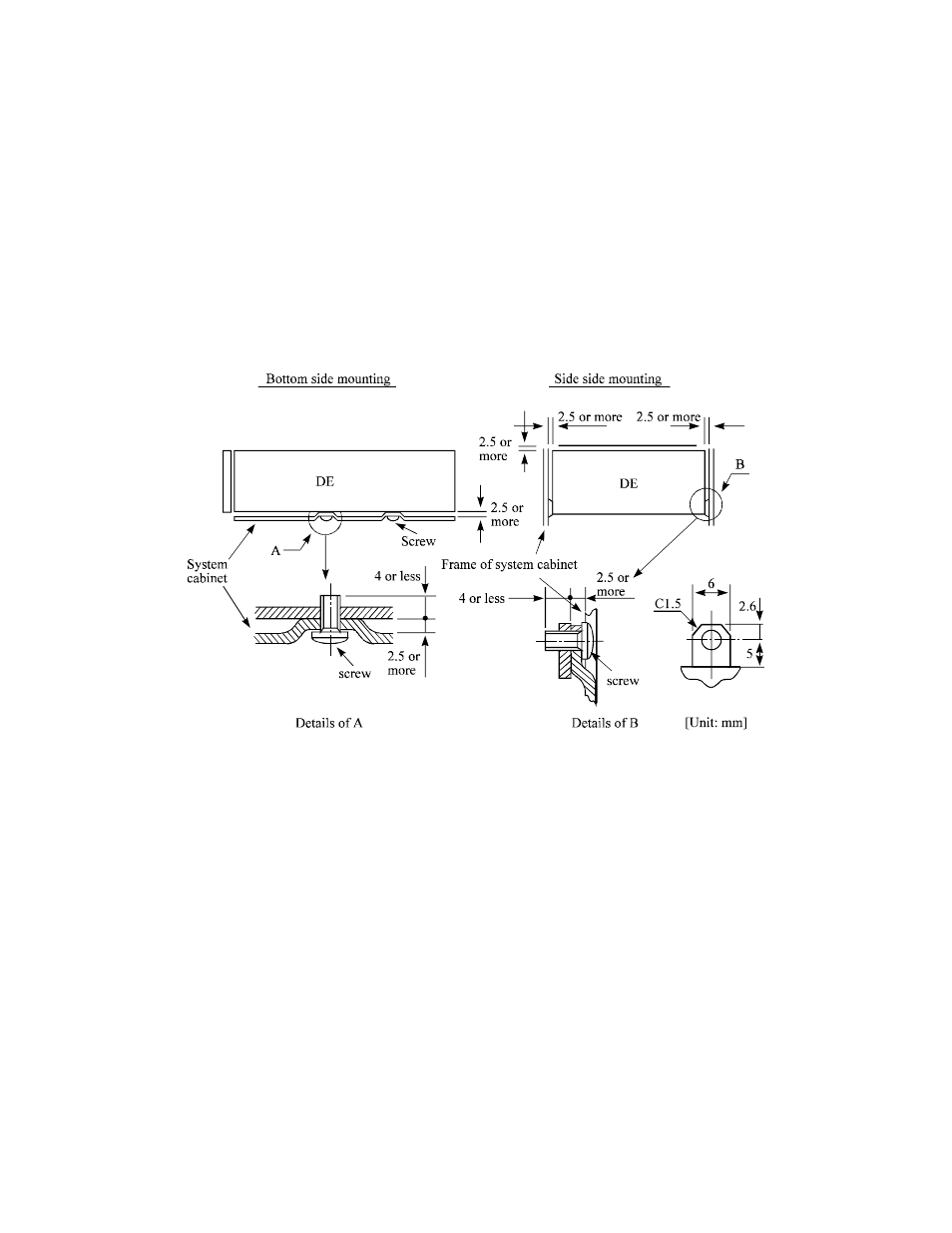

Figure 4.4 Mounting frame structure
