Page 25
Instruction Manual
D500243X012
1035/El-O-Matic Actuator
August 2012
25

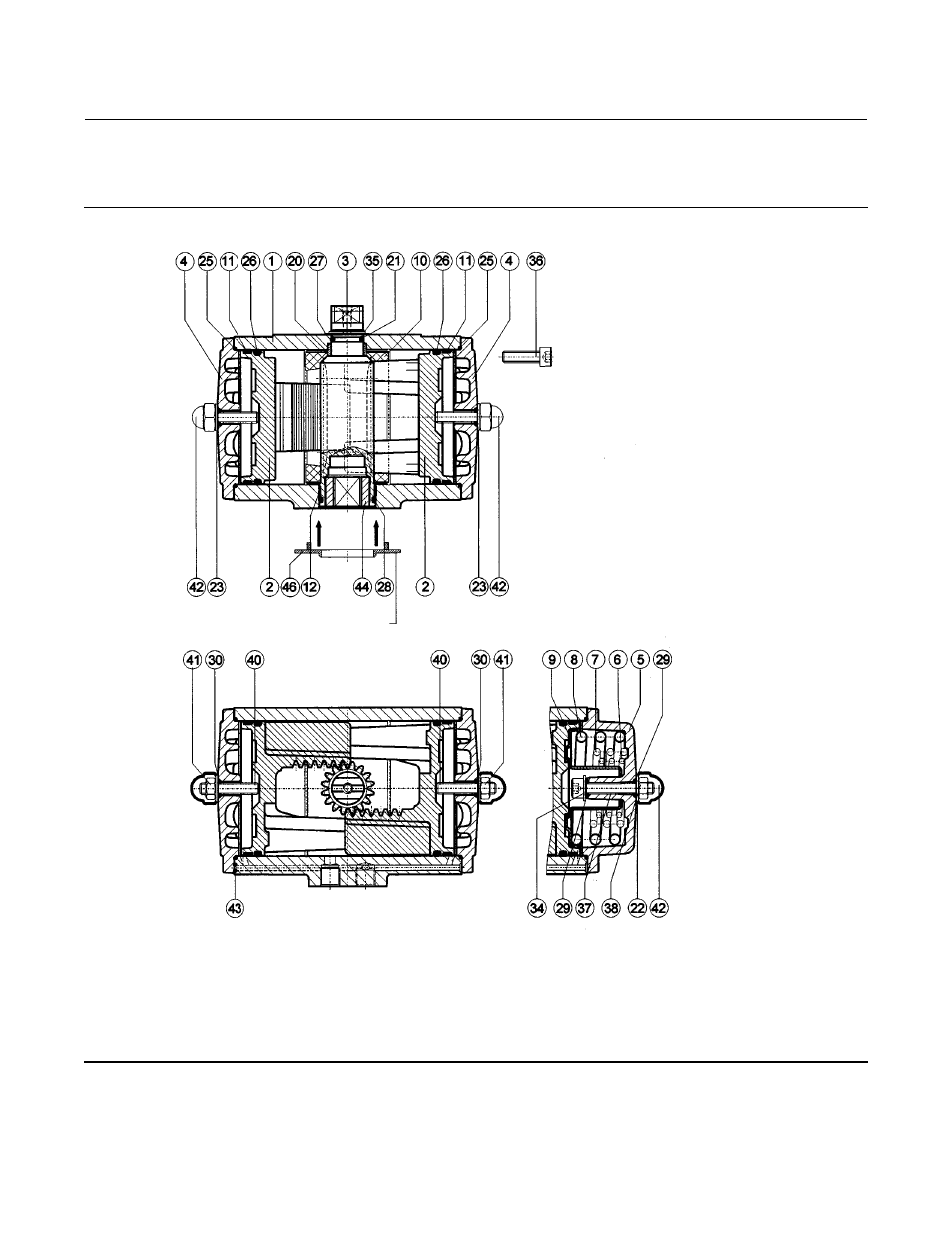

Figure 11. Fisher 1035 E Series Actuator Assembly
ELO A 1.101.33 (3-96)
DOUBLE ACTING
SPRING RETURN
END CAP
NOTE:
PARTS NOT SHOWN ARE HOUSING ADJUSTMENT SCREW, HEX (LOCK) NUT AND
STROKING CAM. REFER TO FIGURE 4 FOR LOCATION OF PARTS.
OPTIONAL CENTER-PLATE
