Instruction Manual
D500243X012
1035/El-O-Matic Actuator
August 2012
19

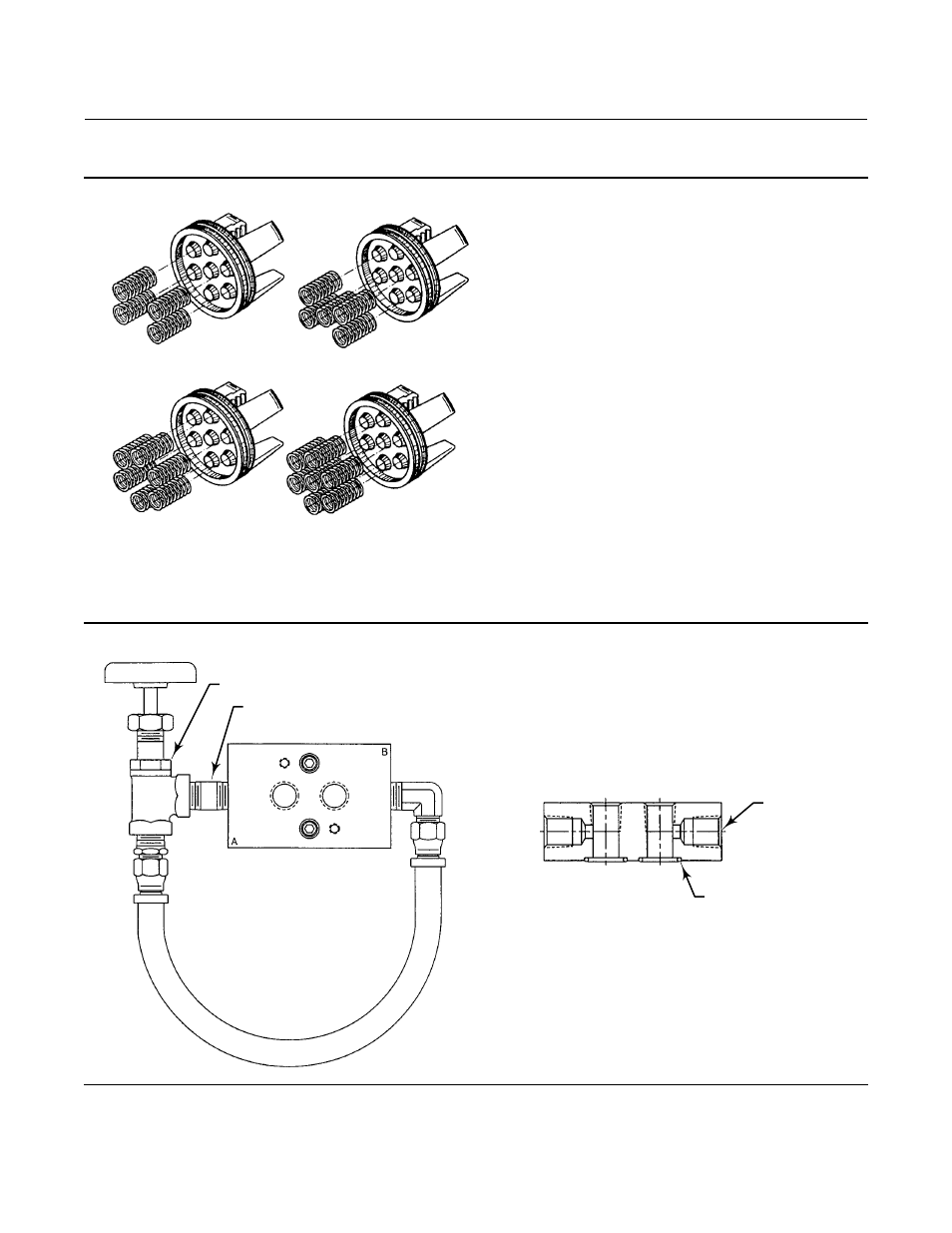

Figure 9. Spring Arrangement for P Series Actuators
ELO A 4.201
A7041-1
8 SPRINGS
14 SPRINGS
12 SPRINGS
10 SPRINGS
Figure 10. Bypass Valve
1F1137 - ANGLE NEEDLE VALVE
1C4882 - PIPE NIPPLE
4 X 1/4-NPT
11A8741
5/8X3/4X1/16
BYPASS ASSEMBLY
SCALE 1=1
SECTION C-C
E0059
