9
SUPPLY AREA DIMENSIONS INCHES MM
A Distance from either edge of product to supply area 1/4 6
B Height of supply area (from floor) 8 1/8–10 1/8* 207–257*
C Width of gas supply area 23 9/16 599
D Width of electrical supply area 11 13/16 300
E Depth of supply area (ie max. protrusion of gas and
electrical connection from wall) 4 1/2 115
*Depending on adjustment of feet.
Island trim and backguard
z It is mandatory to install and use the appliance with
either the island trim or the optional backguard
correctly in place.
z The island trim is already fitted to the appliance while
the backguard can be purchased as a separate kit.
z If replacing the island trim with the backguard,
assemble it by using the same screws/spacers used
for fixing the island trim.
Grounded outlet
(Gas Gas)
z The electric cord with
3-prong ground plug
(NEMA 5-15P) has
a length of 72"
(1830mm).
Grounded outlet
(Dual Fuel)
z The electric cord with
4-prong ground plug
(NEMA 14-50P) shall
have a minimum length
of 48" (1220mm beyond
the back of the range.

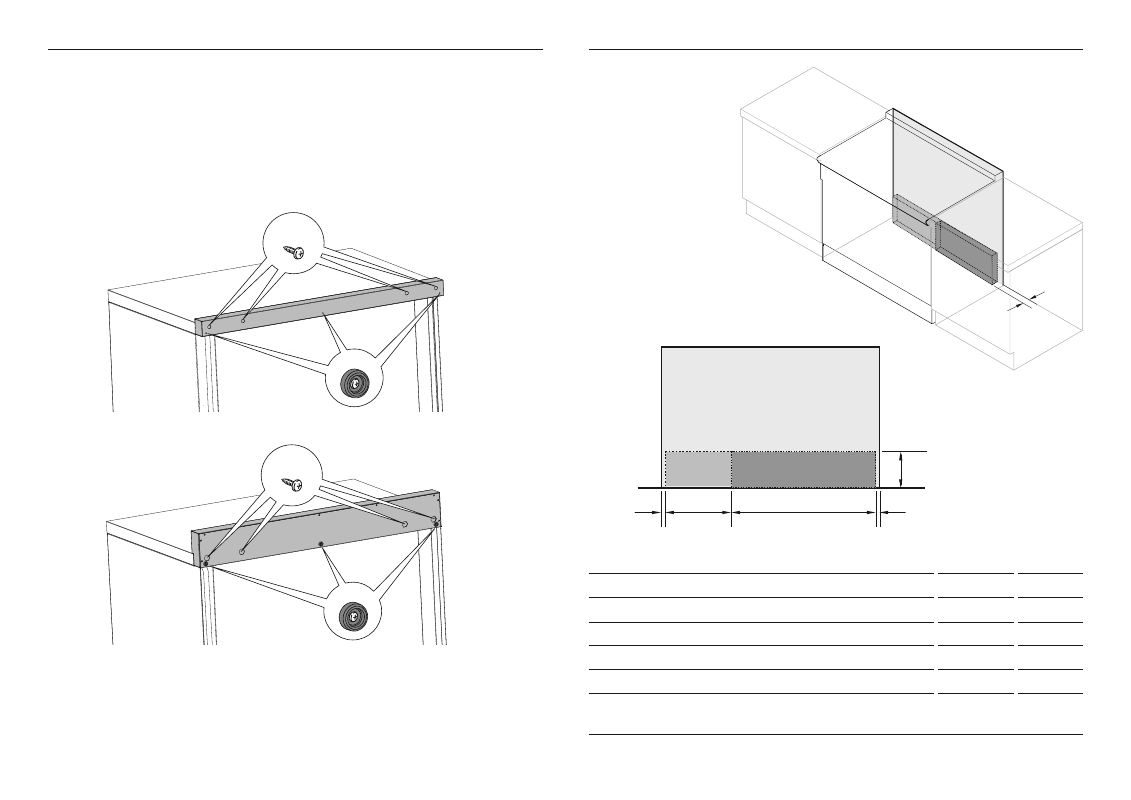

FITTING THE OPTIONAL BACKGUARD LOCATION OF ELECTRICAL & GAS SUPPLY
Final position of cooker
against wall Left side
of cavity
Floor
Gas Electricity B
C D A A
E
