GAS CONVERSION
Conversion to LP/Propane Gas
z
This range can be used with NATURAL or LP/PROPANE gas. It is shipped from the factory
adjusted for use with NATURAL gas.
z
Any conversion required must be performed by your dealer, a qualified licensed technician
or gas service company. Provide the service person with this manual before any work is
started on the range. (Gas conversions are the responsibility of the dealer or end user.)
z
The range is supplied with a set of injectors required for converting the range burners.
z
Refer to the following table to select the appropriate size injector. The nozzle diameters
(hundredths of a millimetre) are marked on the body of each injector.
IMPORTANT!
z
After converting the range repeat manifold pressure testing.
z
If the range has been disconnected and re-connected to the gas supply line
repeat leak testing.
z
After conversion to LP/PROPANE gas affix the supplied conversion label near the data
plate on the product, as well as at the beginning of this manual.

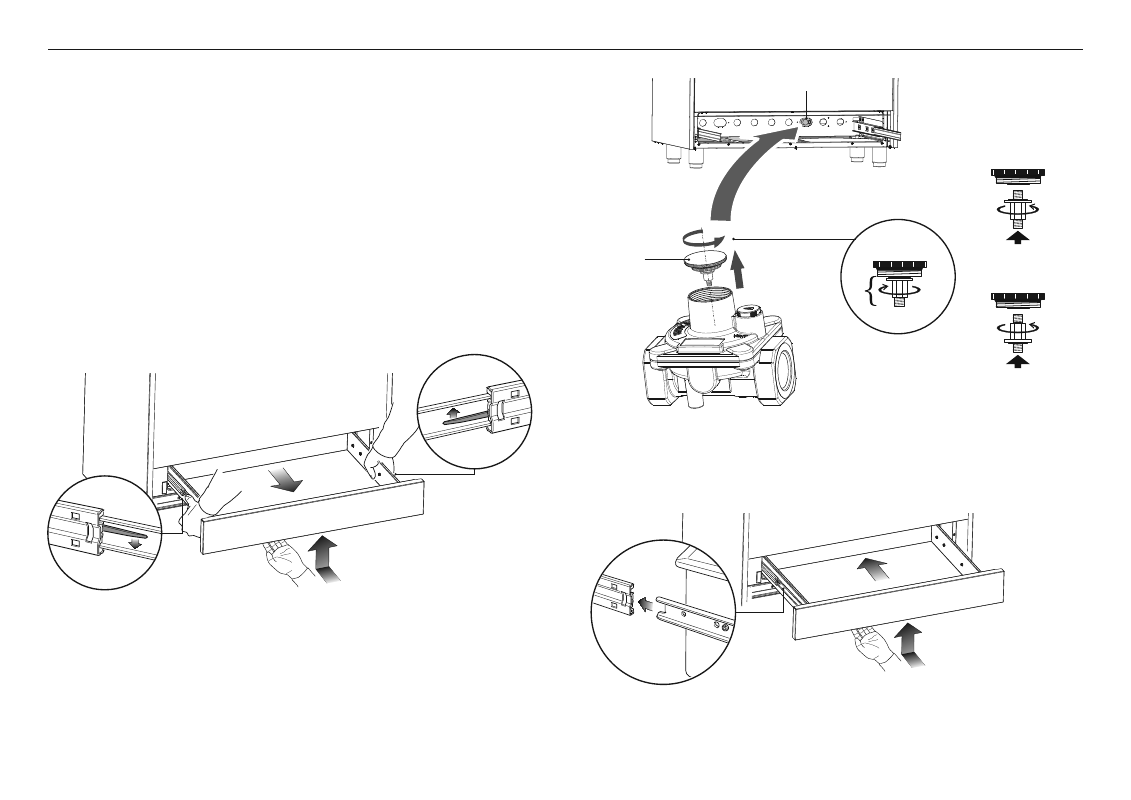

Setting the pressure regulator
The pressure regulator is accessible by removing the storage/warmer drawer;
the pressure regulator is positioned on the rear right side of the range
C
.
To set the pressure regulator
1
Unscrew the regulator cover.
2
Unscrew the
C
component, reverse and screw it according to the LP/PROPANE
(or NATURAL GAS) regulation.
To replace the storage/warming drawer
1
Insert the storage/warming drawer guides into the range guides.
2
Gently close the drawer completely; the safety catches will automatically hook into place.
Regulator
cover
To remove the storage/warming drawer
1
Open the storage/warming drawer completely.
2
Move down the lever of left guide
A
and up the lever of right guide
B
.
3
Remove the drawer holding the levers in the same position.
IMPORTANT
z
Do not remove storage/warming drawer while hot.
z
Do not remove storage/warming drawer during operation.
z
Be sure storage/warming drawer is empty before removing.
z
Always position your hand below the front panel to open/close the drawer.
Natural gas
regulation
LP/propane
regulation
1
2
C
Pressure regulator
B
