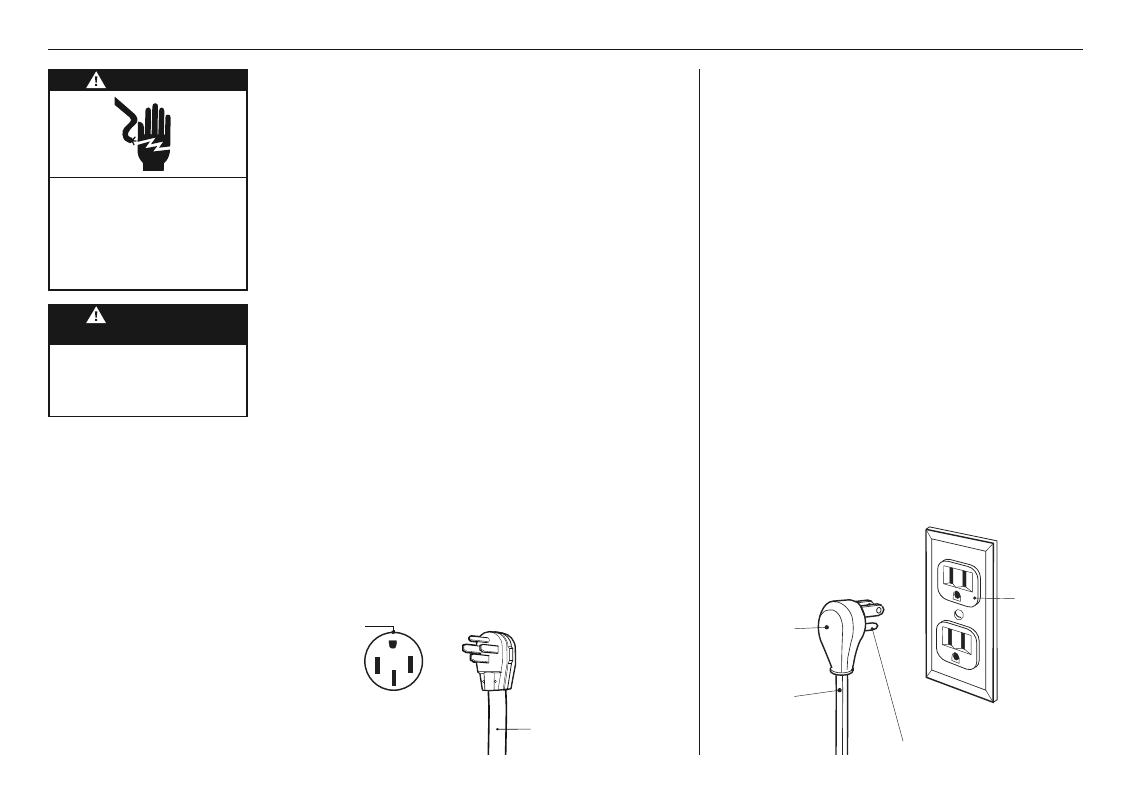

ELECTRICAL CONNECTION
OR36 Gas Gas models ONLY
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that
the ground path is adequate.
Check with a qualified electrician if you are not sure whether
the range is properly grounded.
Do Not ground to a gas pipe.
z A 120-volt, 60-Hz, AC-only, 15 A, fused electrical
supply is required.
z A time-delay fuse or circuit breaker is recommended.
z It is recommended that a separate circuit serving only this
appliance be provided.
z The outlet must be checked by a qualified electrician to see
if it is wired with correct polarity.
z This appliance, when installed, must be electrically grounded
in accordance with local codes.
Recommended ground method
z For your personal safety, this range must be grounded.
z This range is equipped with a 3-prong ground plug.
z To minimize possible shock hazard, the cord must be plugged
into a mating 3-prong ground-type outlet, grounded in
accordance with the National Electrical Code ANSI/NFPA 70
latest edition and local codes and ordinances.
z If a mating outlet is not available, it is the personal responsibility
and obligation of the customer to have a properly polarized and
grounded, 3-prong outlet installed by a qualified electrician.
IMPORTANT!
The third (ground) prong should not, under ANY circumstances,
be cut or removed.
3-prong
ground plug
Power supply
cord
Ground prong
OR36 Dual Fuel models ONLY
If codes permit and a separate ground wire is used, it is recommended
that a qualified electrician determine that the ground path is adequate.
Be sure that the electrical connection and wire size are adequate
and in conformance with:
O ANSI/NFPA 70 latest edition and local codes and ordinances.
O CSA Standard C22.1, Canadian Electrical Code, Part 1 – latest edition,
and all local codes and ordinances.
ONLY FOR CANADA:
A copy of the above code standards can be obtained from:
CANADIAN STANDARDS ASSOCIATION
178 Rexdale Boulevard, TORONTO, ON M9W 1R3, CANADA
z Do not ground to a gas pipe.
z Check with a qualified electrical installer if you are not sure the range
is properly grounded.
z Do not have a fuse in the neutral or ground circuit.
z When a 4-wire, two phase 240-208/120-volt, 60Hz, AC-only electrical
supply is available, a 30 A maximum circuit protection is required,
fused on both sides of the line.
z A time-delay fuse or circuit breaker is recommended
Recommended ground method
z This range is equipped with a Certified Power Cord intended to be
plugged into a standard 14-50R wall receptacle. Be sure the wall
receptacle is within reach of range’s final location.
z Do not use an extension cord.
z In the case of substitution of the power cord always replace it with
a suitable UL or CSA approved one (with the same technical features
of the replaced cord).
z Tighten the power cord by using only the power cord strain relief
bracket supplied with the appliance.
z Allow enough slack to easily attach the cord terminals to the
terminal block.
z These operations must be carried out only by an
authorized technician.
WARNING!
Electrical Shock Hazard
Plug into a grounded outlet.
Do not remove ground prong.
Do not use an adapter.
Failure to follow these
instructions can result in death,
fire, or electrical shock.
WARNING!
VERY IMPORTANT
Before any operation of
maintenance disconnect
the appliance from the
electrical main supply.
3-prong
polarized
ground-type
outlet
Power supply cord with
NEMA 14-50P plug
Standard NEMA
14-50R wall
receptacle
IMPORTANT!
The fourth (ground) prong should
not, under ANY circumstances, be
cut or removed.
