INSTALLING THE ANTI-TIP BRACKET
3 Fix the stability bracket in place. It can be fixed as follows:
z To the floor OR on the rear wall by #4 screws (supplied).
z To the floor AND on the rear wall by #8 screws (supplied).
z There are 8 x wood screws and 8 x screws with plastic
sleeve anchors supplied with the range in two separate kits.
Use the proper screws according to the type of material on
the floor and/or wall.
z If using the the plastic sleeve anchors: drill 5/16" (8mm)
diameter holes and insert the supplied plastic sleeve anchors
before attaching the stability bracket with the screws.
4 Slide the range into place, ensuring the bolt on the adjustable
bracket slots under the stability bracket.
z Adjust the length of the bolt as necessary. Ensure the two nuts
are well tightened after any adjustments.
IMPORTANT!
z Use the proper screws to fix the stability bracket in place
according to the type of material on the floor and/or wall.
z Before drilling and holes or inserting any screws into the floor
or wall check that you will not damage any wiring or pipes.

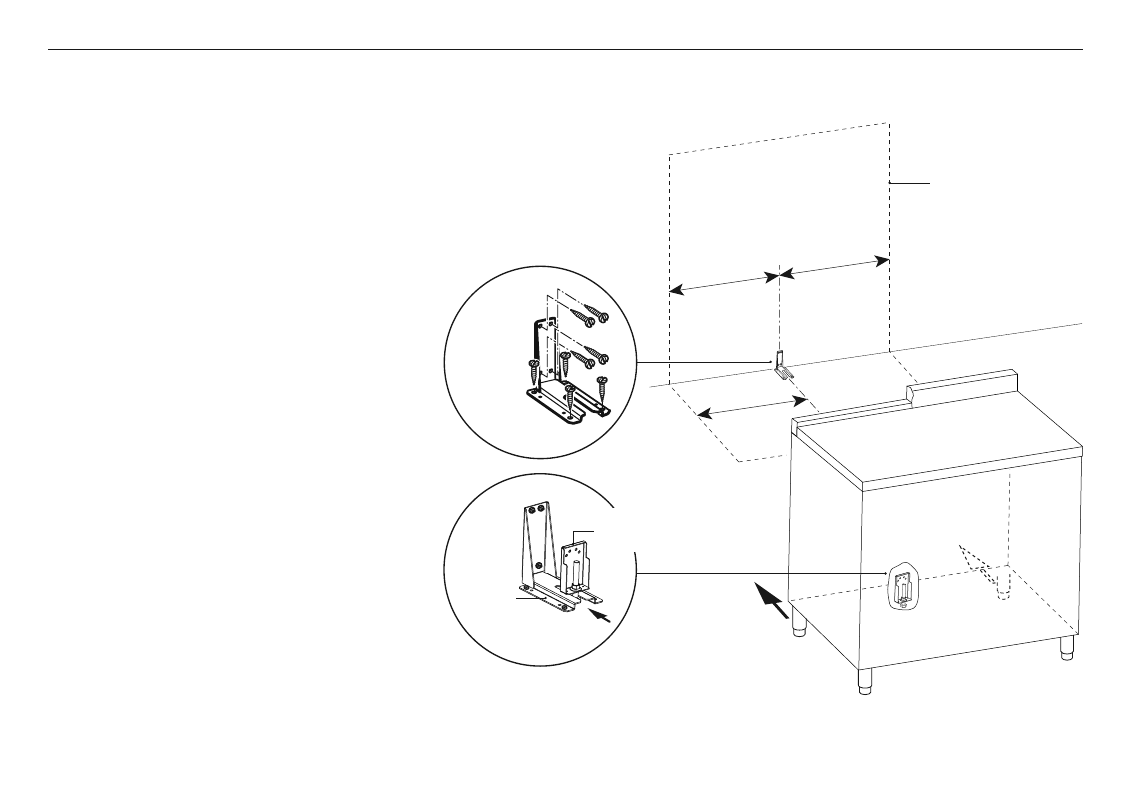

17 15/16"
(456mm)
=
=
Dotted line
showing the
position of the
range when
installed
Adjustable
bracket with
bolt correctly
fitted
Stability
bracket
Stability
bracket
