Gas conversion – Fisher & Paykel Series 7 Classic Series 36 Inch Freestanding Gas Range Installation Guide User Manual
Page 23
23
Injectors table
BURNERS
NOMINAL
POWER
REDUCED
POWER
LP/PROPANE
11" (279.4mm)
W.C.P.
NATURAL GAS
4" (101.6MM)
W.C.P.
BTU/HR
BTU/HR
Ø INJECTOR
[1/100 MM]
Ø INJECTOR
[1/100 MM]
Semi-rapid (SR)
LP/Propane Gas
7600
1800
78
n/a
Natural Gas
8000
1800
n/a
136
Triple ring
LP/Propane Gas
12000
6300
97
n/a
Natural Gas
14000
6300
n/a
180
Dual (D)
Inner crown
2800
1
1100
1
47
3
80
3
Full burner
18000
2
6500
2
79 (x2)
4
135 (x2)
4
GAS GAS MODELS ONLY
Oven burner
17000
3200
120
208
Broil burner
13000
n/a
105
184
1
Power calculated with inner and outer crown operating
2
Power calculated with inner and outer crown operating
3
Inner crown injector
4
Outer crown injector

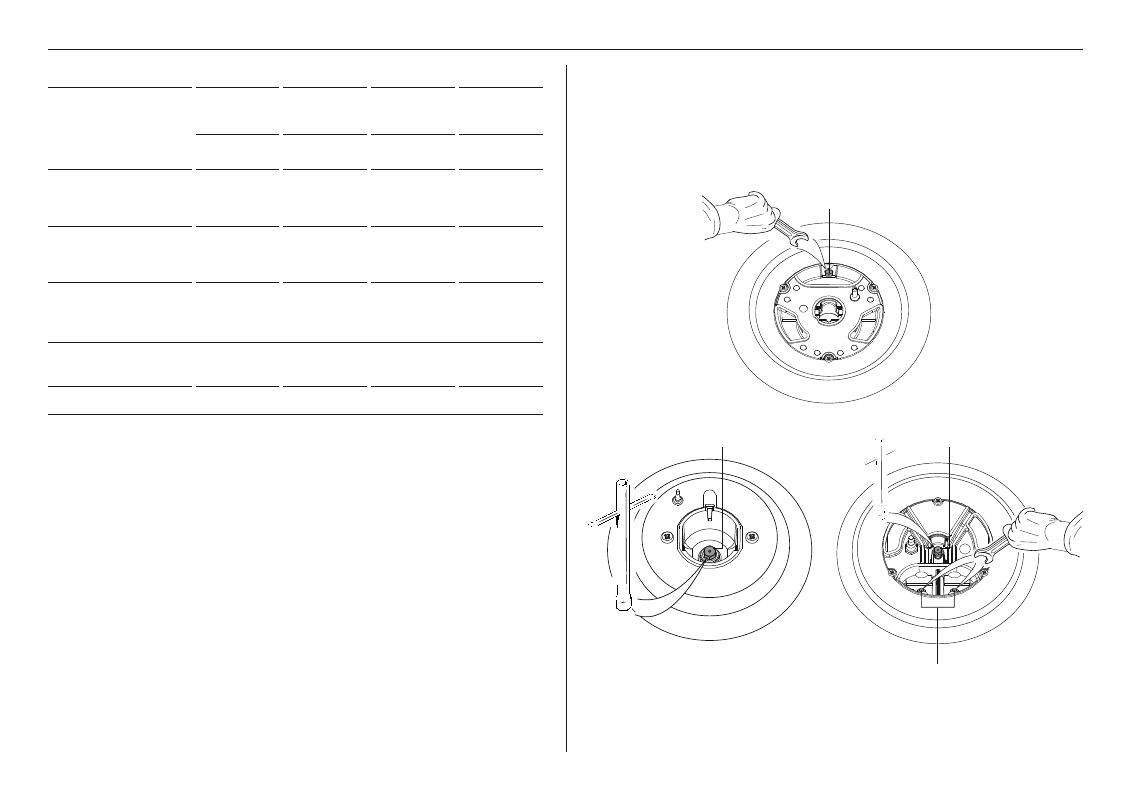

Replacing the cooktop burner injectors
z
Remove the pan supports, the burner caps and the flame spreaders.
z
Using a wrench substitute the nozzle injectors with those most suitable for the kind of
gas for which it is to be used.
z
Refit the flame spreaders, the burner caps and the pan supports.
The burners are designed so that no regulation of the primary air is required.
GAS CONVERSION
Semi-rapid burner
Dual burner
Outer crown injector
Inner crown
injector
Inner crown
injector
Inner crown
injector
