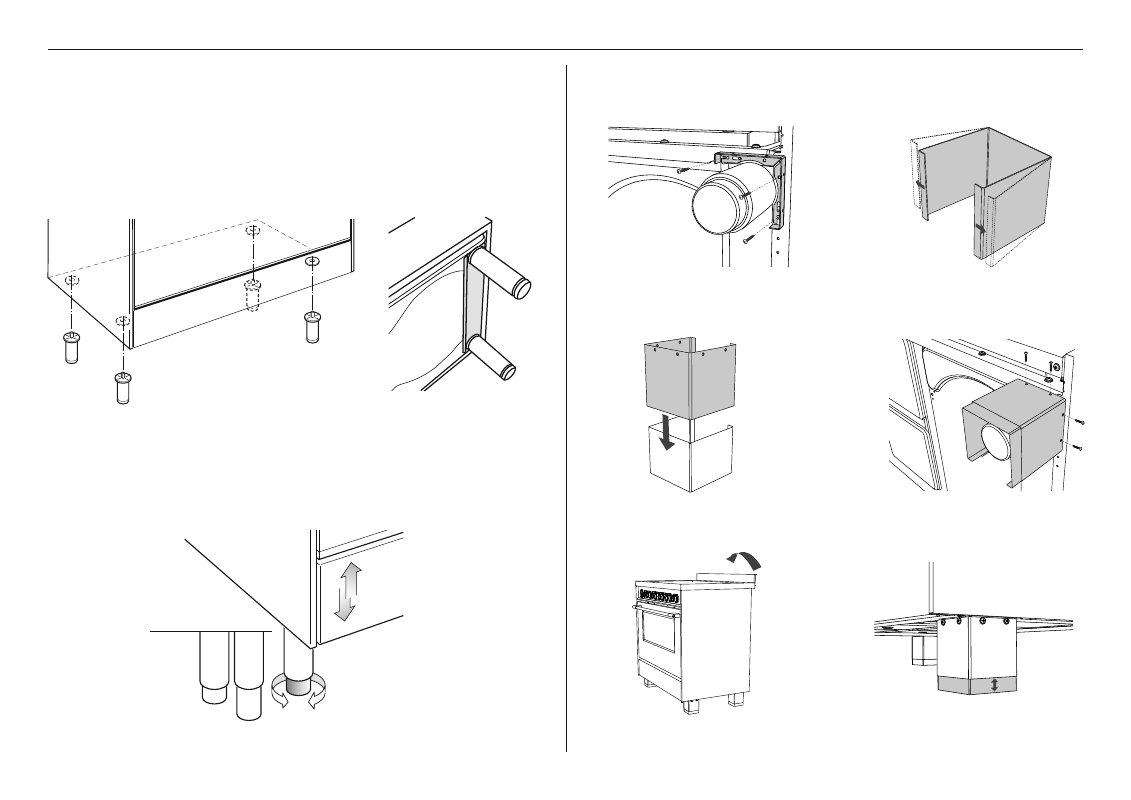

Fitting the adjustable feet
The adjustable feet must be fitted to the base of the range before use.
Rest the rear of the range on a piece of the polystyrene packaging exposing
the base for the fitting of the feet.
IMPORTANT
Take care not to damage the range during this operation.
Fit the four legs by screwing them tight into the support base as shown.
Levelling the range
z
The range may be levelled by screwing the lower ends of the feet IN or OUT.
z
Small adjustments may be made to the range in the upright position, however it
may be necessary to tip the range again to make larger adjustments.
Fitting the adjustable (front) feet covers (optional)
If using the adjustable feet covers fit these while the range is tipped over.
3
Slot the outer panels over the
tensioned inner panels.
5
Stand range back upright.
6
Adjust the inner panels of the foot
covers to suit height of range feet.
4
Secure covers to brackets using
the provided screws
2
Gently bend the sides of the inner
panels outwards to tension.
1
Tip range onto its back and fix
brackets to mounting holes.
FITTING THE ADJUSTABLE FEET
