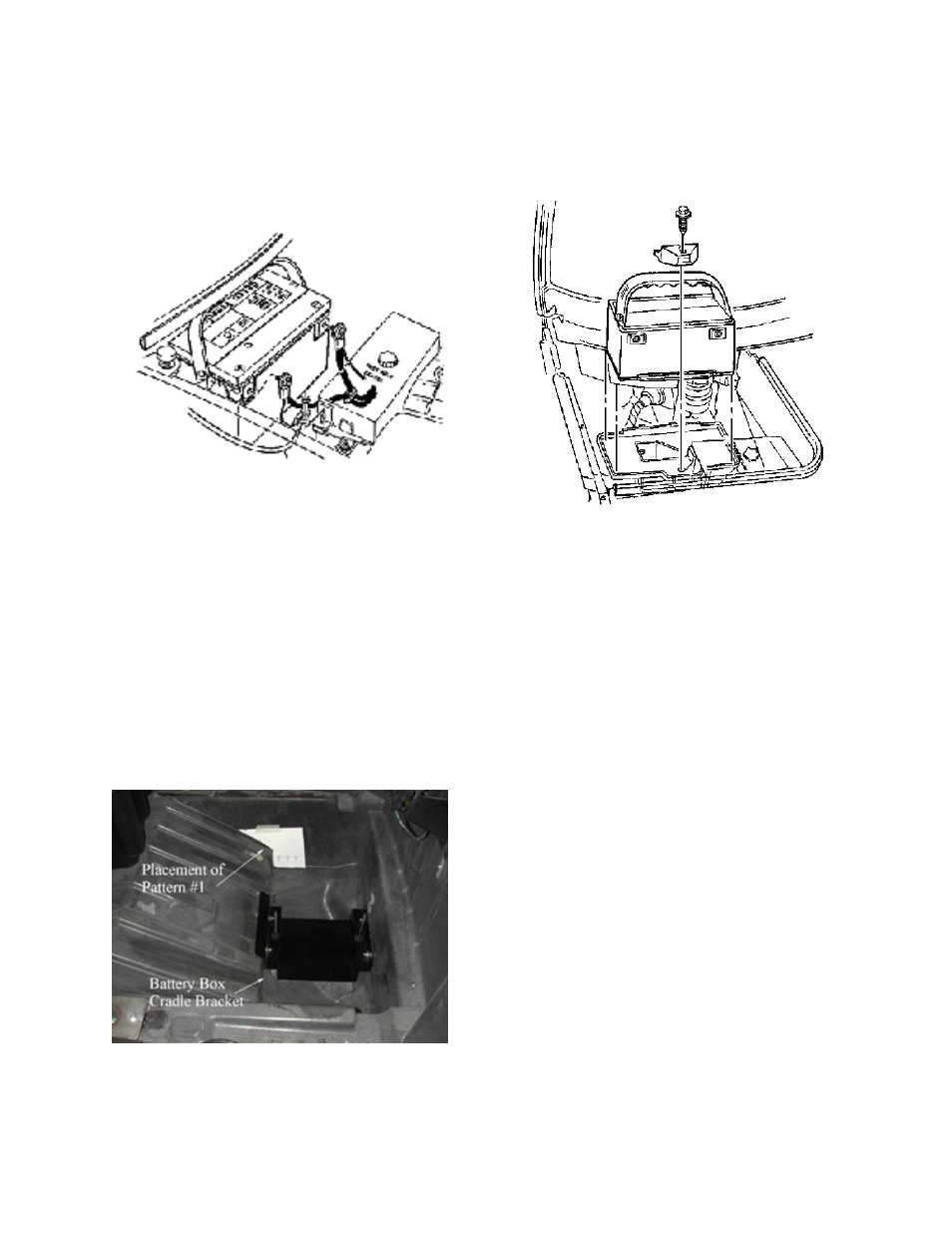

1. Disconnect the negative battery cable.
2. Disconnect the positive battery cable.
3. Remove the battery hold down retainer
bolt.
4. Remove the battery retainer.
5. Remove the battery with the insulator
from the tray.
Remove carpet in rear of car to expose the fiberglass tub area in the center and rear of car.
Cut out the supplied pattern labeled “Pattern 1”
(found on page 14). Lay it in the right side of the tub
section inside of the car. It should fit the contour of
the fiberglass. Mark the three hole centers and drill
to the proper size. The size of the holes that are being
drilled are specified on “Pattern #1.” There are two
holes that are 1 1/16 inches in diameter and one hole
that is ¾ inches in diameter. If you don’t have a step
drill, a spade wood bit will work. Drop the carpet
back in location and mark the three holes onto the
carpet from outside the car. Remove carpet and cut or
punch the three holes. Cut the carpet according to the
“Carpet Cutting” instruction sheet.
Remove the battery and remove from the car. Always turn the ignition OFF when connecting or
disconnecting battery cables, battery chargers, or jumper cables. Failing to do so may damage the
Powertrain Control Module (PCM) or other electronic components.
