Figure: 1 top view – Lingenfelter L450010197 L450020197 Lingenfelter C5 Corvette Battery Relocation v1.5 User Manual
Page 17
Carpet Cutting Instructions for
C5 Convertibles & Coupe Corvette
Figure: 2 (Close up of Figure 1)

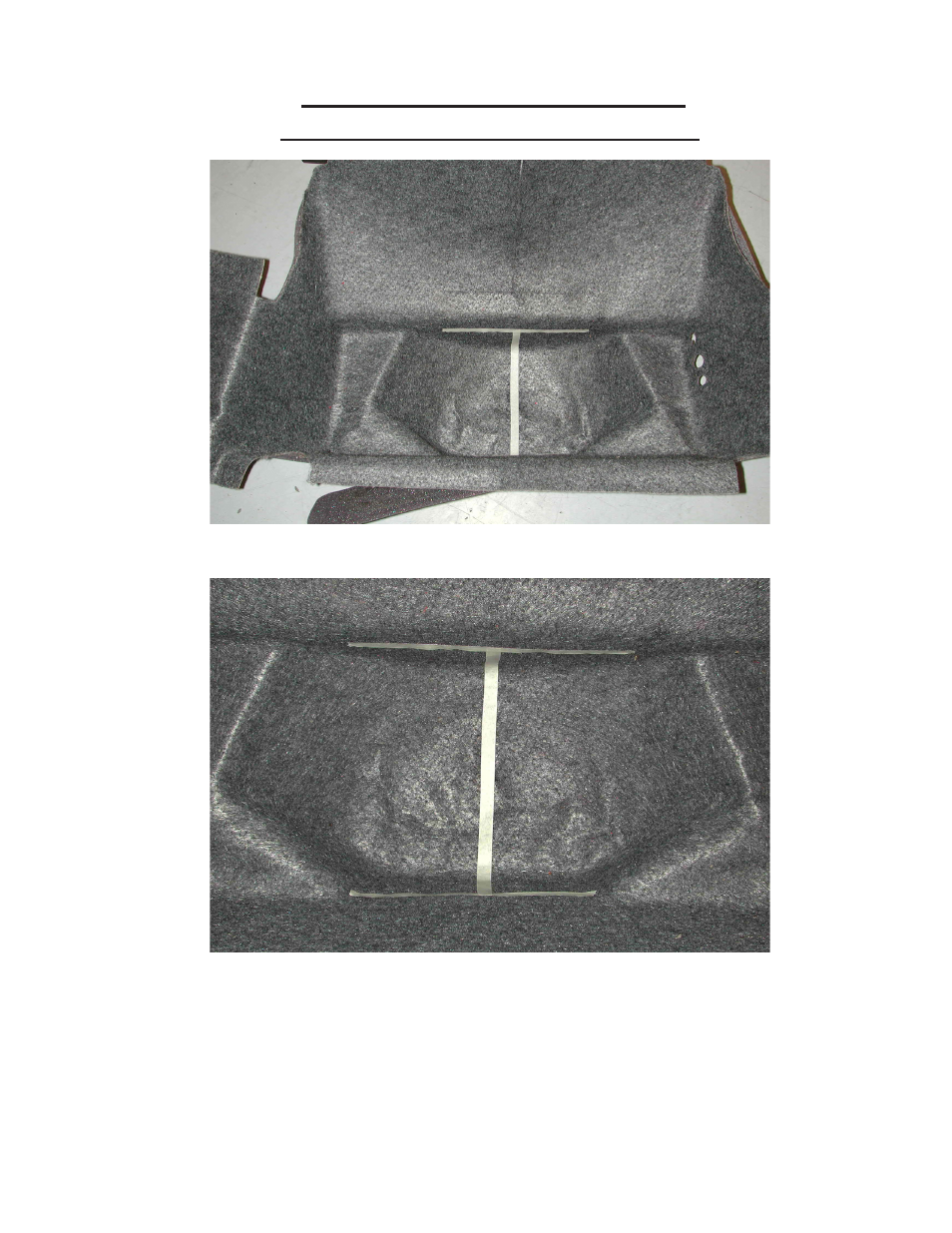

Figures 1 & 2 are top views of the trunks molded carpet section. The cutting lines are laid
out in the shape of the letter “I”. This is the pattern your will be cutting to fit your carpet around the
battery tray.
NOTE: YOU ARE ONLY CUTTING SLITS IN THE CARPET, YOU ARE NOT
REMOVING ANY MATERIAL!
Figure: 1 Top View
Page 16 of 21
