Remove the plastic panel behind the right front tire.

This can be achieved more easily when you take the

tire off.

Remove the stock battery tray from the engine com-

partment, noting that it is bolted from the center out-

ward. Route the cable(s) forward from the rear fender

well until they come out of the front fender well area.

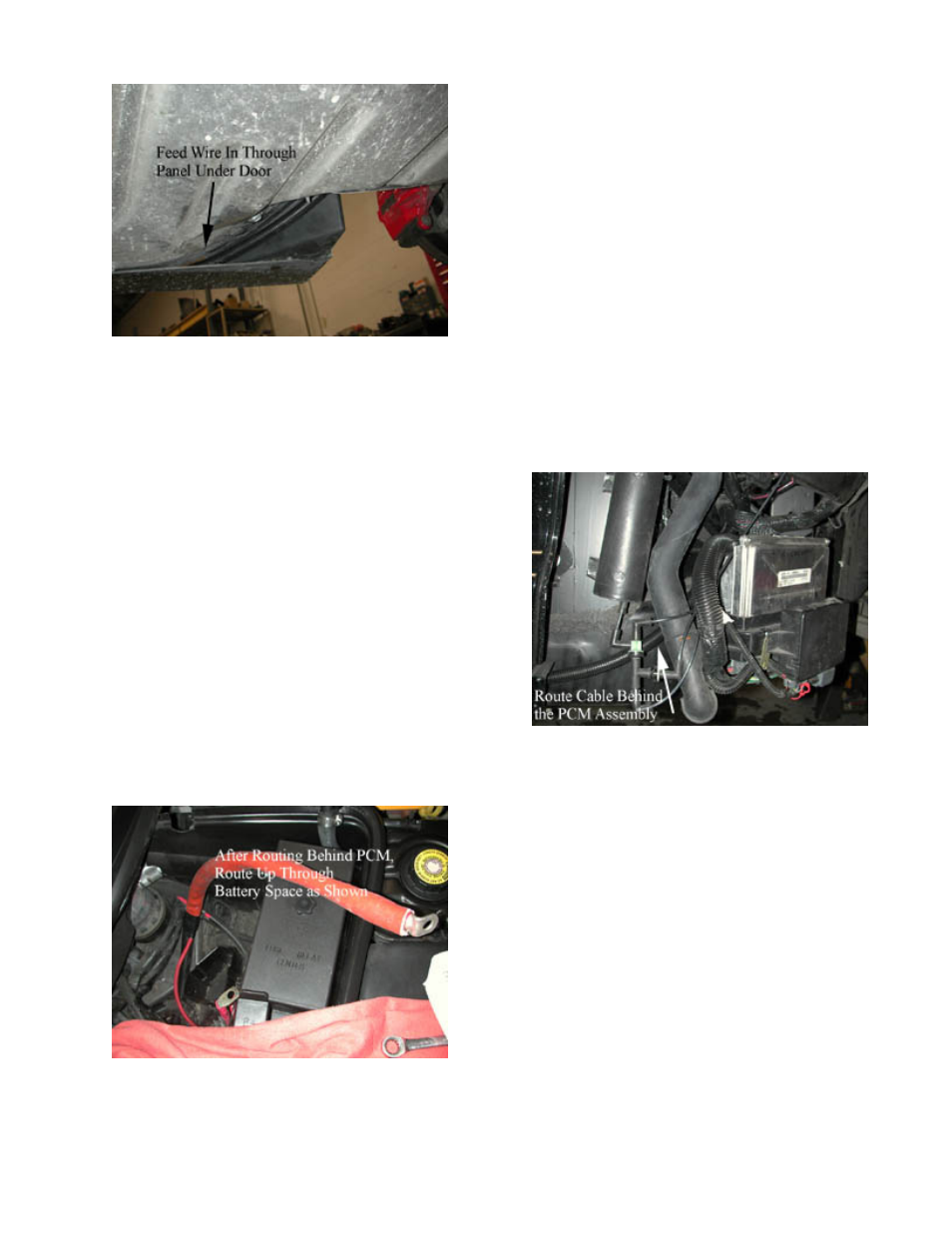

Cable(s) should route above the PCM (Powertrain

Control Module) as shown.

Slide the heat sleeve (part #27) over the positive

cable, using electrical tape or self fusing silicone tape

to secure it. Once the cable(s) have reached the stock

battery location they will take the route of the stock

cables. The supplied heat shield should be used on

the positive (red) cable from the starter lug back. Use

cable ties to secure cable(s) to loom against fire-

wall. Make sure there is adequate clearance between

cable(s) and exhaust manifold. Connect the red wire

(part #3) to the lug on the fuse relay center, it should

appear similar to the stock wire. Both red and black

stock cables should be removed from the vehicle.
