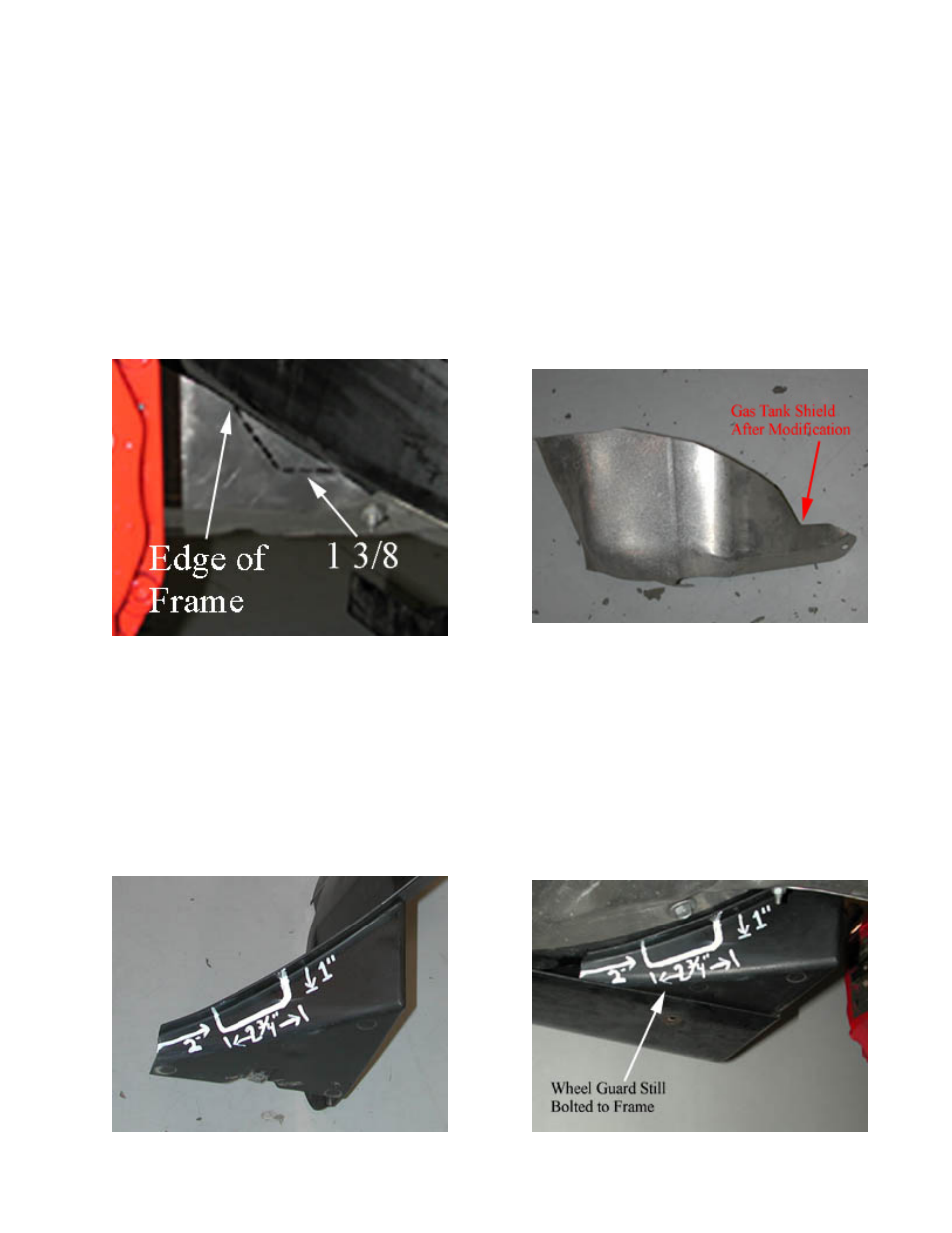

Mark the gas tank shield as shown. The line should start at the point where the shield is approxi-

mately flush with the frame rail. Extend downward until about 1 3/8 inch up from the horizontal

break; draw a line horizontally staying 1 3/8 inches from the break.

Mark the inner fender liner as shown; this will be your wire routing. Remove the gas tank shield and

cut with tin snips. Use the supplied, pre-cut black piece of edge protector (part #31) on the shield,

this must be installed to prevent cutting of the battery cable. Remove the inner fender liner and cut

as marked. Install the gas tank shield but leave the fender liner out for now. For the LPE minitub

kit, cut a notch of the same width and height in approximately the same location shown here.

When installing the clear plastic tube (part #14), it should go through both of the smaller grommets

so that it protrudes inside the battery box a few inches and outside the fiberglass at least one inch.
