INSTALLING THE UNIT
I. ELECTRICAL CONNECTION
The FAX-210 can be plugged into any standard power (110 VAC) outlet. Make sure that the
outlet is grounded and that it is not on the same iine as appliances or office machines which tend
to draw a iot of power in a very short period of time, such as refrigerators, copiers, etc. The
FAX-210 power requirements are listed in the SPECIFICATIONS.
After you plug in the power cord into the outiet, the LCD will display:
MSGCTR
AUTO ANS
•PASSWORD
PRESS STOP KEY
Press STOP. If you have not inserted the paper roll into the unit, "ADD PAPER" message
appears. If you have already inserted the paper roll, the unit is ready for use. The LCD will
display the date and time as foilows:
P_ MSG CTR
— AUTO ANS
"•-PASSWORD
01/01/89 00:00
This LCD reading is referred to as the "standby mode" and it indicates that the unit is ready to
perform its functions. Later, we will show you how to set the date and time.
NOTE: THE FAX-210 DOES NOT HA VE A POWER ON/OFF SWITCH.
II. SINGLE-LINE TELEPHONE CONNECTIONS
The FAX-210 must always be connected to the power outlet prior to making the telephone line
connection. Similarly, when disconnecting the unit, the telephone line connection should be
removed before unplugging the unit. This procedure is necessary because the unit relies on the
power outlet's ground for your protection from any possibly hazardous electrical conditions that
may arise on the telephone network.
The simplest way to connect the Brother FAX-210 unit to the public switched telephone
network (phone company lines) is to use a single telephone line. The connection is particuiarly
simple if you have a modular wall jack. The most common modular jack is referred to as the
USOC RJ11C jack. If you have such a jack, follow the instructions below. If your wall jack is
not modular. It is very easy to convert the wali piug to a modular form. Conversion is very
simple and conversion kits are avaiiable from your local phone company, an electronics /
computer store (e.g.. Radio Shack) or the AT&T phone stores.
To connect your FAX-210 to the telephone line, foliow these steps:
• Connect one end of the curled handset cord to the handset and the second end to the RJ7
jack on the side of the handset cradle.
• Take the telephone cord which is also included in the carton and connect one of its plugs to the
LINE jack in the back of the FAX-210 unit and the second plug to your modular wall jack
(USOC RJ11C). Now, the FAX-210 is connected to the telephone network.
Please see the illustration on the next page for the telephone connections.

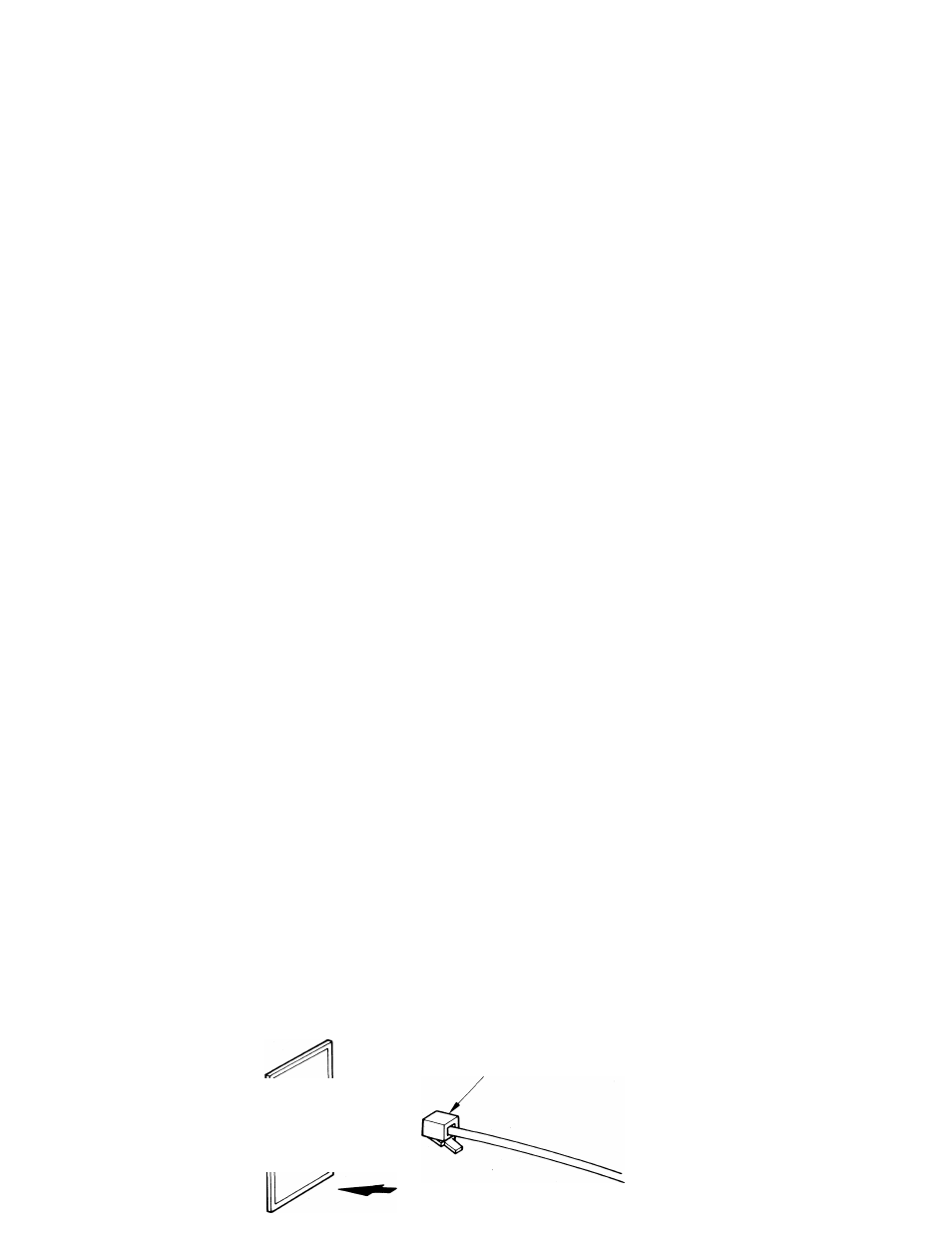

MODULAR PLUG
TO WALL OUTLET
