• When the belt hook is not used, be sure
to return it to the storing position. The belt
hook may catch on something.
This may result in an accident or injury.
• When the unit is hooked onto the waist beit
by the belt hook, do not attach driver bits to
the unit. A sharp edge object, such as a drill
bit, may cause injury or an accident.____

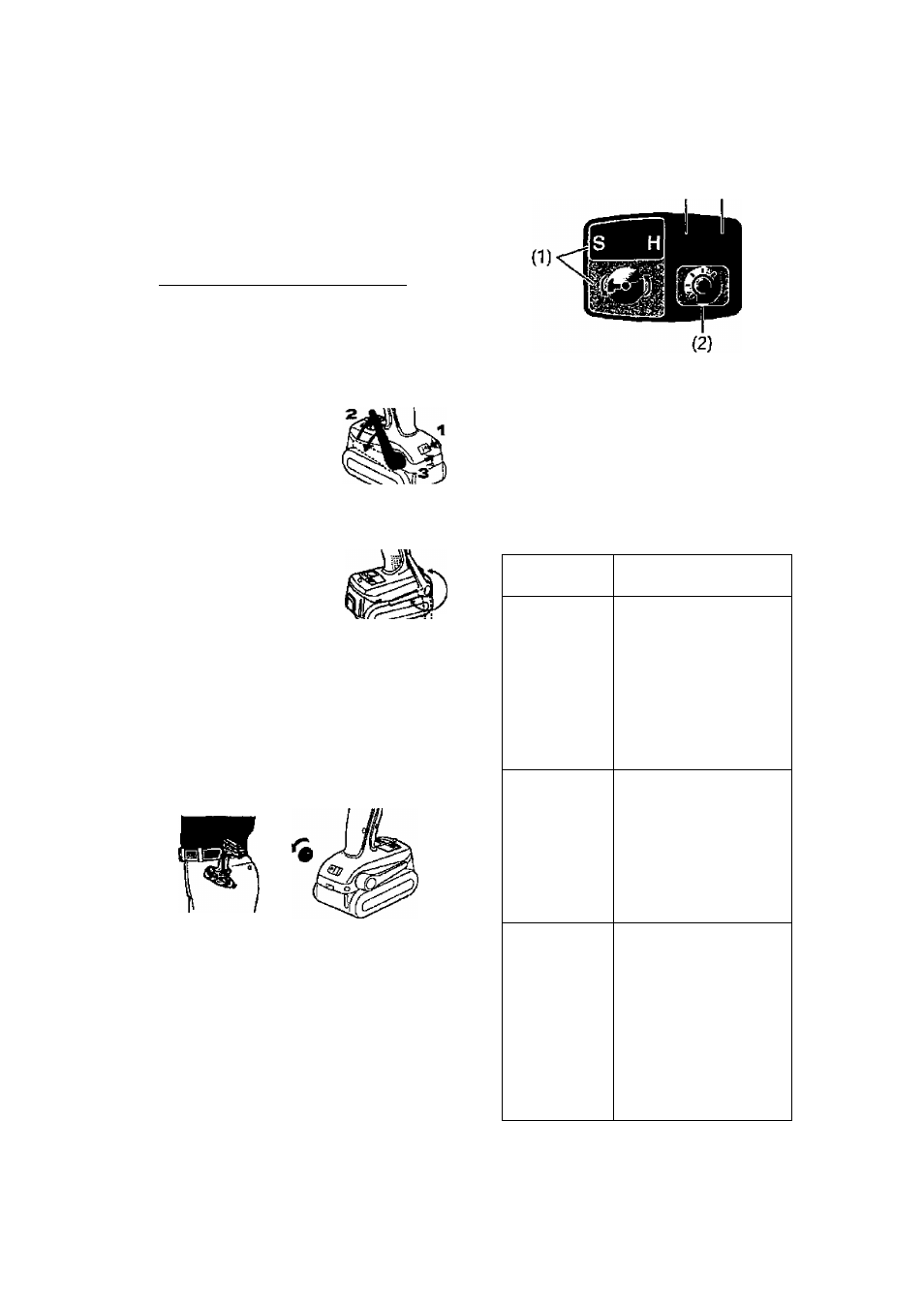

Control Panel
To Set the Belt Hook Angle
Position
1. Slide the belt hook lock lever i and hold
it to unlock the belt hook.
2. Pull the belt hook from
storing position 2 and
set it.
3. Release the belt hook
lock lever to lock the
angle of belt hook.
4. Make sure the belt hook is firmly locked.
Also make sure the belt hook is firmly
locked into position 3.
• The belt hook cannot
be locked in this posi­
tion. Firmly lock it into
position before use. \s
To return the belt hook to the storing position,
Follow step 1. and 2. above, then lower the
belt hook.
To secure the lock, follow 3 and 4 above.
To Change the Belt Hook
Location Side
The belt hook can be attached to either
side of the unit.
1. Set the belt hook at storing positon.
2. Loosen the screw turning it counter­
clockwise, using a flat metal or a flat
blade screw driver.
3. Take out the belt hook and insert into
the other side of the slot on the main
unit.
4. Fasten the screw firmly, turning it clock­
wise.
The belt hook can be taken out from the
main unit only when it is at storing posi­
tion.
(4) (3)
(
1
)
Impact Power Mode Select
Selecting the impact power among 3
modes {Soft, Medium, Hard),
Press the impact power mode button to set
it. The mode changes to hard, medium, or
soft each time the button is pressed.
The driver is preset to "hard" impact mode
setting when shipped from the manufac­
turer.
Recommended work guideline table
Impact
Power mode
Display
Recommended Application
Approx.
3000 b.p.m.
(Max.)
Jobs requiring a high level
of torque where there is
no possibility of the screw
breaking, its lop shearing off,
or the bit coming loose. (This
setting provides maximum
torque.) Suitable applications
include:
• Tightening M8 and larger
bolts
• Tightening long screws
during interior finishing work
Approx.
Z800 b.p.m,
(Max.)
Jobs requiring limited torque
where there b a possibi% oi
the screw breaking or ib top
shearing off. (This setting limits
torque.) Suitable applications
include:
• Tightening bolts with
smaller diameters (M5)
• Tightening metalwork
screws when installing
fixuires
Approx.
ZOOD b.p.m.
(Max.)
Jobs requiring limited torque
where there is a possibility
of the screw breaking, its
top shearing off. or the bit
coming loose and damaging
a finieiied exterior surface.
(This setting limits torque.)
Suitable applications indude:
• Tightening bolls smaller
than MB that may shear
easily
• Tightening screws into
molded pfastic
• Installing gypsum wallboard
