Viewing Additional Controller Status Details
1. Display the Controller Status Report as described in the Viewing the Controller Status Report
topic above.
2. Press the  button. The Controller Status details for the first controller display.

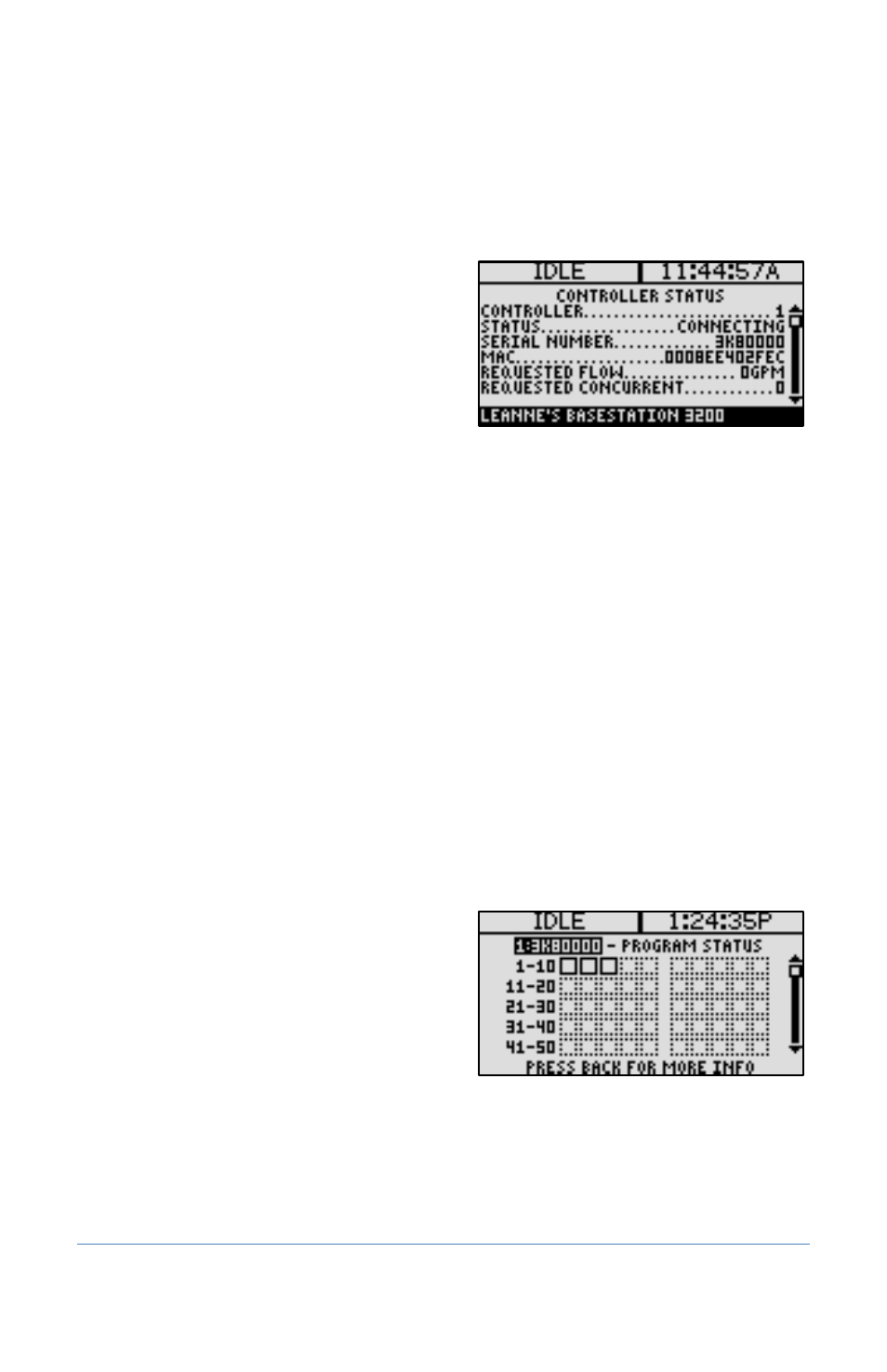

 Controller – Shows the sequential
number of the controller based on the
slot in which this controller is assigned
on the FlowStation
 Status – Shows the status of the
connection between this controller and
the FlowStation
 Serial Number – Shows the serial
number of this controller
 MAC – Shows the MAC address of this controller
Note: The next two fields alternate between showing the requested and the assigned
amounts.
 Requested/Assigned Flow – Shows the amount of flow that this controller has
requested/assigned for its running programs
 Requested/Assigned Concurrent – Shows the number of concurrent zones that this
controller has requested or has been assigned to run
Note: The “Friendly Name” assigned to this controller in BaseManager displays at the
bottom of the Controller Status Detail screen. If the BaseStation 3200 controllers in the
shared flow group are connected to BaseManager, Baseline recommends that you
assign a friendly name to each controller so your controllers are easier to identify.
3. To view the Controller Status details for the next controller, press the  button.
4. To return to the Status Report menu, press the BACK button.
Viewing the Program Status Report
1. Press the RUN button.
2. Press the BACK button. The Status Report
menu displays.
3. Press the  or  button to highlight Program
Status, and then press the OK button. The
Program Status screen for the first controller
displays. The controller’s serial number
displays at the top of the screen.
4. To view the status for the programs on another controller, press the + button.
5. To return to the Status Report menu, press the BACK button.
