4.5. VALVE AND VALVE MOUNT
1. Loosen
the
1/2”
x 1” bolt on the
pounder valve mount arm (bolt not
shown) and remove.
2. Slide the SP valve mount arm over
the lower pipe on the pounder valve
mount arm and put it back in the
control mount holder. Set the pounder
control valve back into position and
retighten the bolt.
3. Install
the
handles into the valve and
attach to the SP valve mount plate
with three 5/16” x 2-1/2” bolts and
locknuts.
4. Move the SP valve mount arm into the
operating position and tighten the
bolts (Figure 4.7).

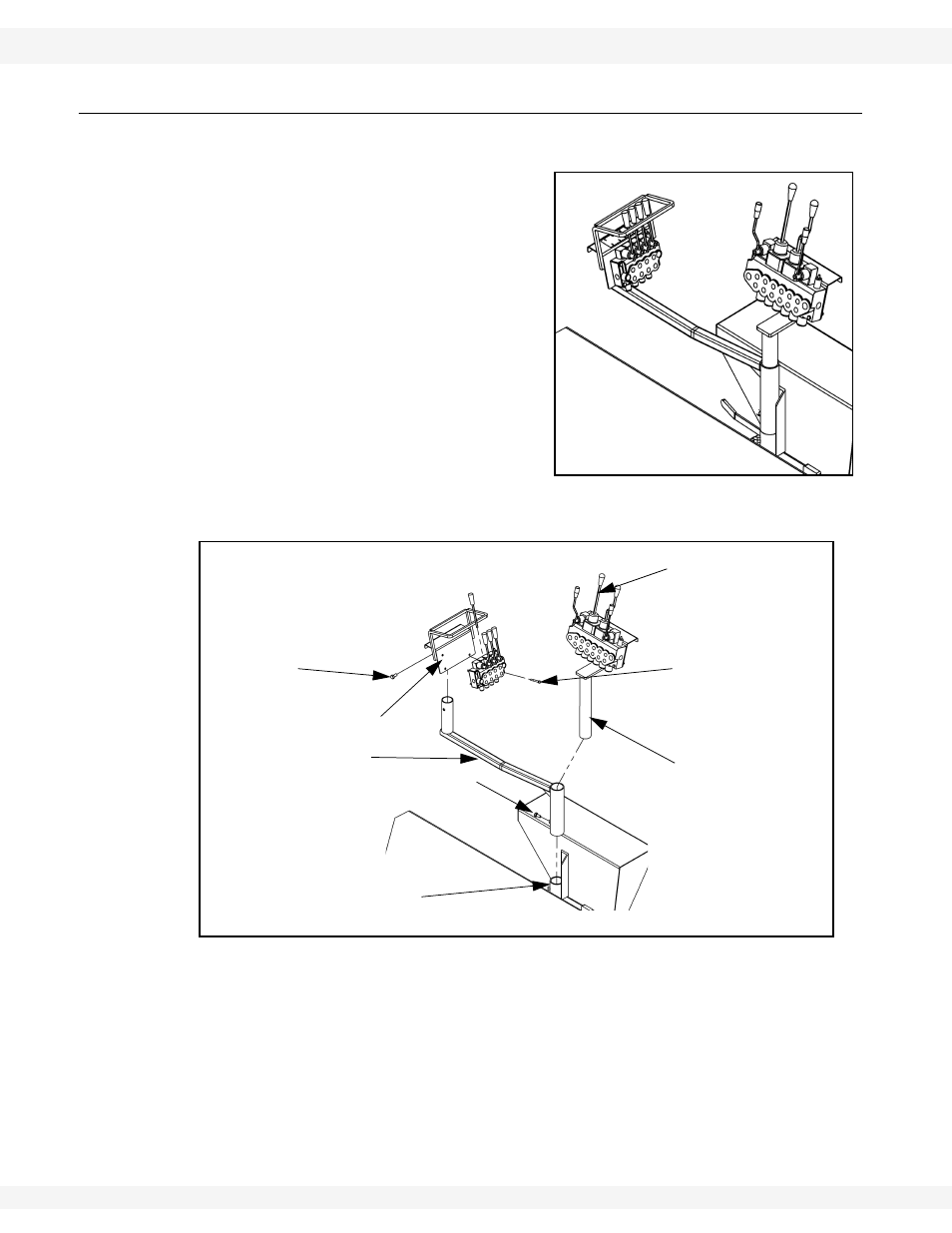

Figure 4.8
Figure 4.7
HANDLES
5/16” x 2-1/2” BOLTS
SP VALVE MOUNT ARM
1/2” X 1”
BOLT
SP VALVE MOUNT PLATE
1/2”X1” BOLT
POUNDER VALVE
MOUNT ARM
CONTROL MOUNT HOLDER
