Form No. 20027 • G6-42P Owner/Operator Manual
20.2
CARRARO AXLE
1. If possible position unit on level ground lower attachment to approximately
one foot from ground, move forward/reverse lever to “Neutral”, apply
parking
brake and stop engine.
2. Chock all wheels to prevent inadvertent movement.
Figure 20-3
3. Working one side at a time, remove three plugs from differential housing
(located at 12 o’clock, 4 o’clock and 8 o’clock). Put plugs aside.
4. Tighten each release screw revealed by the plugs, lightly until some
resistance is felt.
5. Working carefully, tighten each release screw only 1/2 turn (180°) at a
time, in sequence, until all three screws have been turned approximately
five full turns. Larger turns could cause components to bind and cause
brake failure.
6. Repeat this procedure on other side of differential. Parking brake should
be released.
TO RESTORE PARKING BRAKE
1. Make certain engine is stopped and all wheels are chocked.
2. Loosen each release screw, only 1/2 turn at a time, in sequence, until
each screw has lost contact with guide pin. Back out each screw until it
bottoms out against the stop. Then screw the bolts back in 1/4 turn.
3. Install plugs over each release screw.
4. Repeat procedure on other side of differential. Parking brake should be
restored to operation.

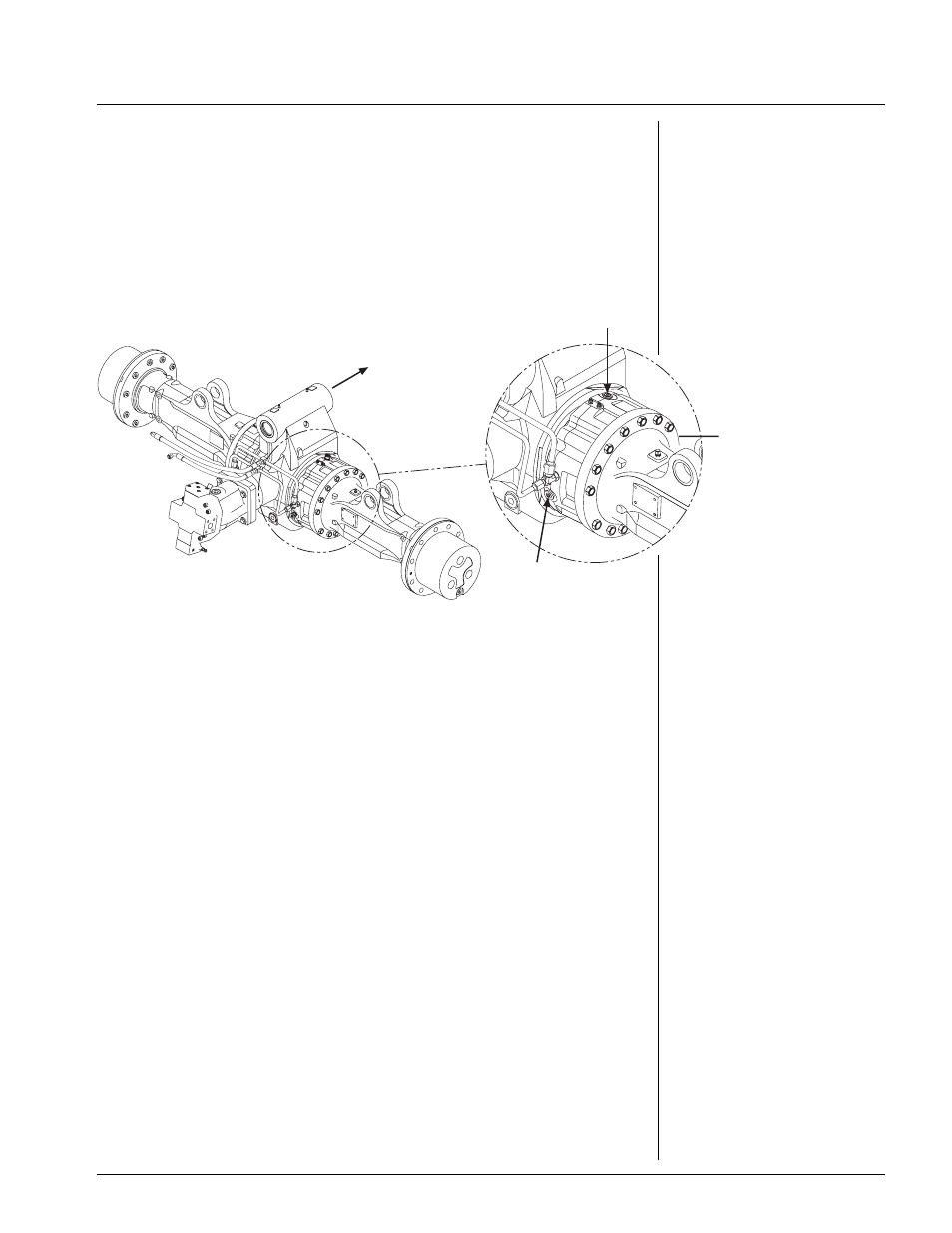

RELEASE
SCREW
(12 o’clock
position)
RELEASE
SCREW
(4 o’clock
position)
RELEASE
SCREW
(8 o’clock
position)
FRONT OF
MACHINE
