Form No. 20027 • G6-42P Owner/Operator Manual
Seat Lock Release Lever: This lever unlocks and locks seat position
adjustment.
Service Brake/Inching Travel Pedal: This pedal operates the service brakes
on the front axle. It also permits slow travel speed while engine speed is kept
high for other handler functions. The further the pedal is depressed, the slower
the travel speed. Full depression of pedal causes full service brake application.
Steering Wheel: The steering wheel controls the angle of wheels. Turning the
steering wheel to the right causes a right turn by angling rear wheels to left. A
left turn is caused by angling rear wheels to right.
Traction-lock Pedal: This pedal operates traction-lock valve which functions
to restore traction when a wheel spins in four-wheel drive.
Voltmeter: This gauge indicates alternator output and battery condition.
4x2/4x4 Switch: This switch engages and disengages rear-wheel drive motors.
Rear drive motors are engaged for four-wheel drive. Indicator light on switch
glows (amber) to indicate four-wheel drive is engaged. When park brake is
applied, light will not glow.

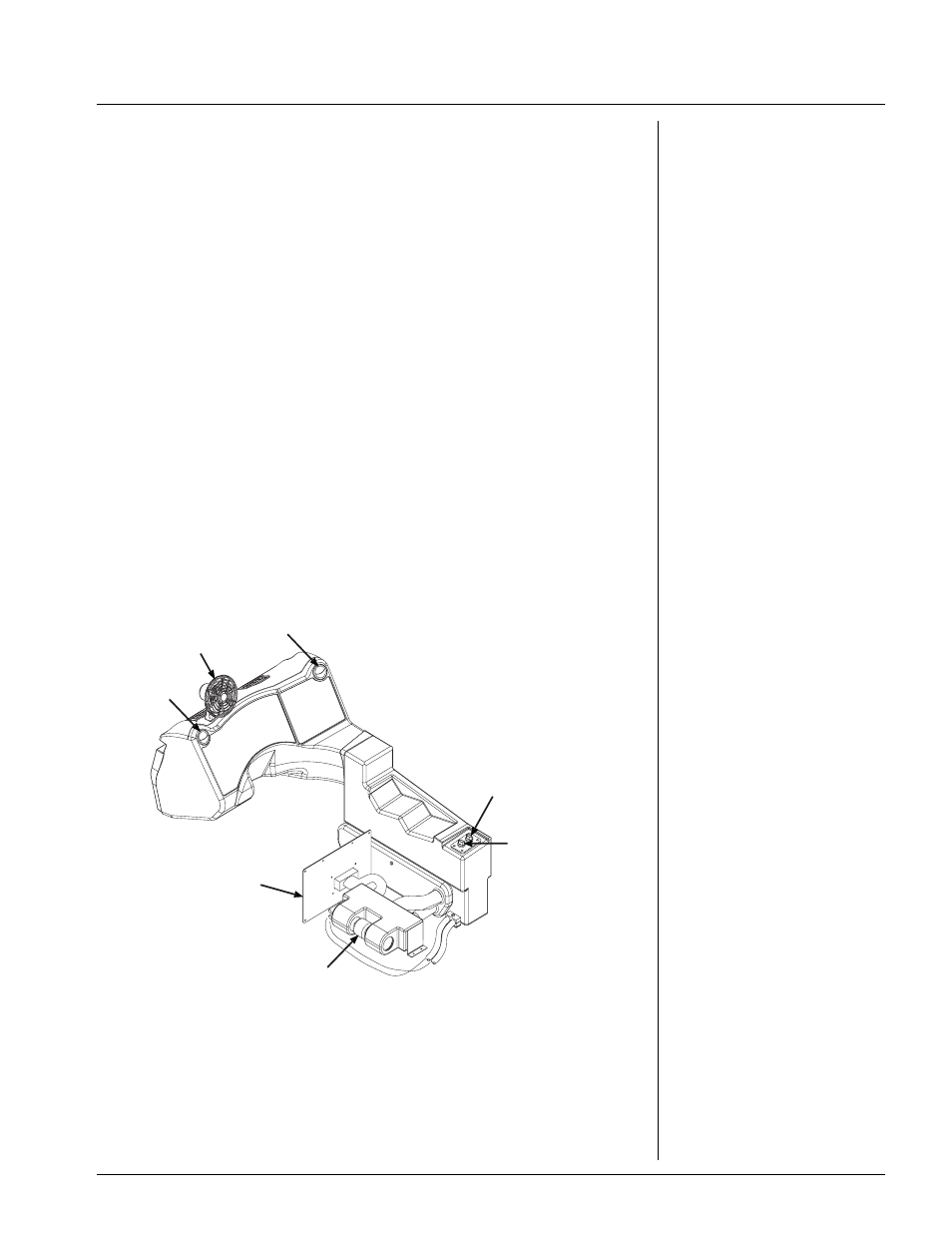

OPTIONAL HEATER CONTROLS
Figure 3-2
3.2
DEFROSTER FAN
AIR VENT
AIR VENT
TEMPERATURE CONTROL
BLOWER CONTROL
ACCESS COVER/
HEATER VENT
HEATER
