Form No. 20027 • G6-42P Owner/Operator Manual
OPERATOR’S CAB
The standard cab permits vision from all sides and includes an overhead guard
to provide protection from falling objects.
A fully-enclosed cab with windows and a lockable door is available as an option.
The top half of the cab door must be secured in the fully-opened or closed
position. The bottom half of the cab door can be secured in the closed position
only. Be sure the door and window are fully secured when operating the
handler.
The operator’s seat is equipped with a seat belt and includes fore and aft
adjustment to compensate for variations in operator size. The adjustment
release/lock is located on the side of seat. Wear seat belt when operating
machine.
An optional windshield wiper/washer is available for use with enclosed cabs. A
control switch is located on the instrument panel.
A variable-speed defroster fan is available for use with enclosed cabs. An “On/
Off” control switch and speed control are located on the base of the fan.
The heater fan speed is controlled by a knob on the panel to the right of the
operator’s seat. Hot water to the heater can be controlled by a knob on the
same panel or a valve in the engine compartment.
The operator’s cab is an S.A.E. “FOPS/ROPS” structure. Do not make
any modification to this structure. If damaged, the cab cannot be repaired.
It must be replaced.

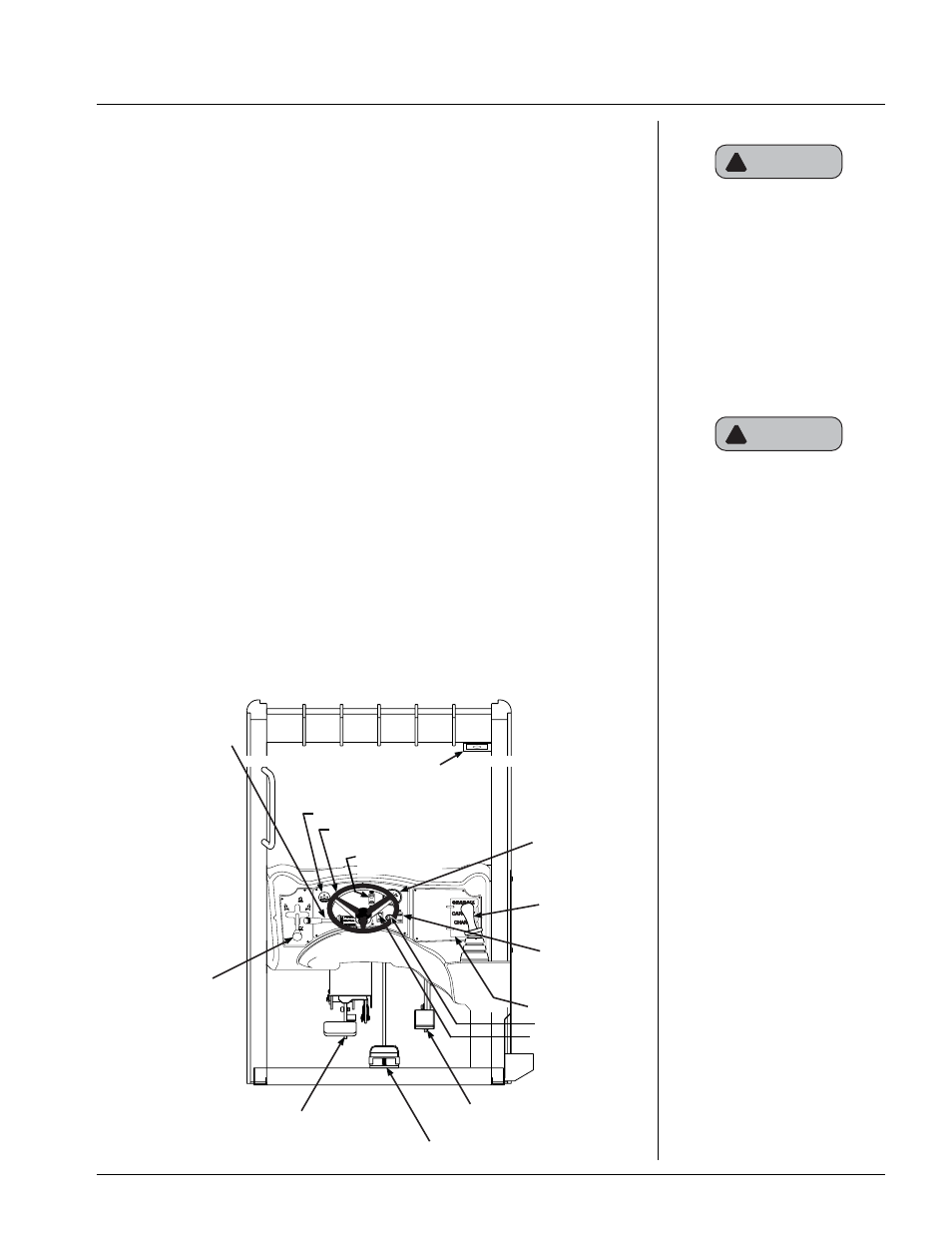

CONTROL AND INSTRUMENT IDENTIFICATION
Figure 3-1
OPERATOR’S CAB 3.0
NOTE!
Relevant S.A.E. Recommended
Practices:
S.A.E. J1040 for ROPS
S.A.E. J231 for FOPS
WARNING !
Any modification which adds
weight to this machine must be
approved by GRADALL to assure
compliance with FOPS/ROPS
certification for this cab/machine
configuration.
WARNING !
Never operate the handler unless
the overhead guard is in good
condition.
WORK
TRAVEL MACHINE MUST BE IN NEUTRAL AND PARK BRAKE ON TO START
R
OFF ACC RUN ST AR T
IGNITION
240
100
F
E
80
0
16
10
TEMP
FUEL OIL
VOLTS - + 0 0 0 0 0 0
QUARTZ
48" & 72" CARRAIGE
48" & 72" CARRAIGE
48" & 72" CARRAIGE
FORWARD/NEUTRAL
REVERSE LEVER
ATTACHMENT TILT/
MACHINE LEVEL
(STANDARD)
AUX CONTROL LEVER
(OPTIONAL)
LEVEL
INDICATOR
HOURMETER
STEERING
WHEEL
PARK BRAKE
SWITCH
BOOM CONTROL
JOYSTICK
OIL PRESSURE/
COOLANT TEMP/
VOLTMETER/
FUEL GAUGE
HORN BUTTON
CAPACITY CHARTS
4x2/4x4 SWITCH
IGNITION SWITCH
ACCELERATOR PEDAL
TRACTION LOCK SWITCH
SERVICE BRAKE/
INCHING TRAVEL PEDAL
