UNIT COMPONENTS Magic-Pak: HW/HWC
SRM-HW/HWC 2/99
Ignition Controls (*24)
FENWAL
®
¨
V2
GND
FC-
CAUTION:
HIGH VOLTA
GE DISCONNECT
WIRING BEFORE SER
VICING
FC+
24
VAC L1
IND
V1 PSW
TH
Fenwal Triton 2461D
Ignition Control Specifications
Manufacturer: Fenwal
Model: Triton 2461D
Armstrong P/N 43110-002
Pre-purge: 30 seconds
Ignition: 15 seconds
Input: 24VAC, 50/60 Hz 300 mA
Valve: 24VAC, 2.0 A max.
Inducer: 120VAC, 3.0 A or 240VAC, 1.5 A, 1/4 HP
Ambient: – 40°F to +160°F
ANSI Z21.20-1993 CAN/CSA-C22.2 No. 199-M89

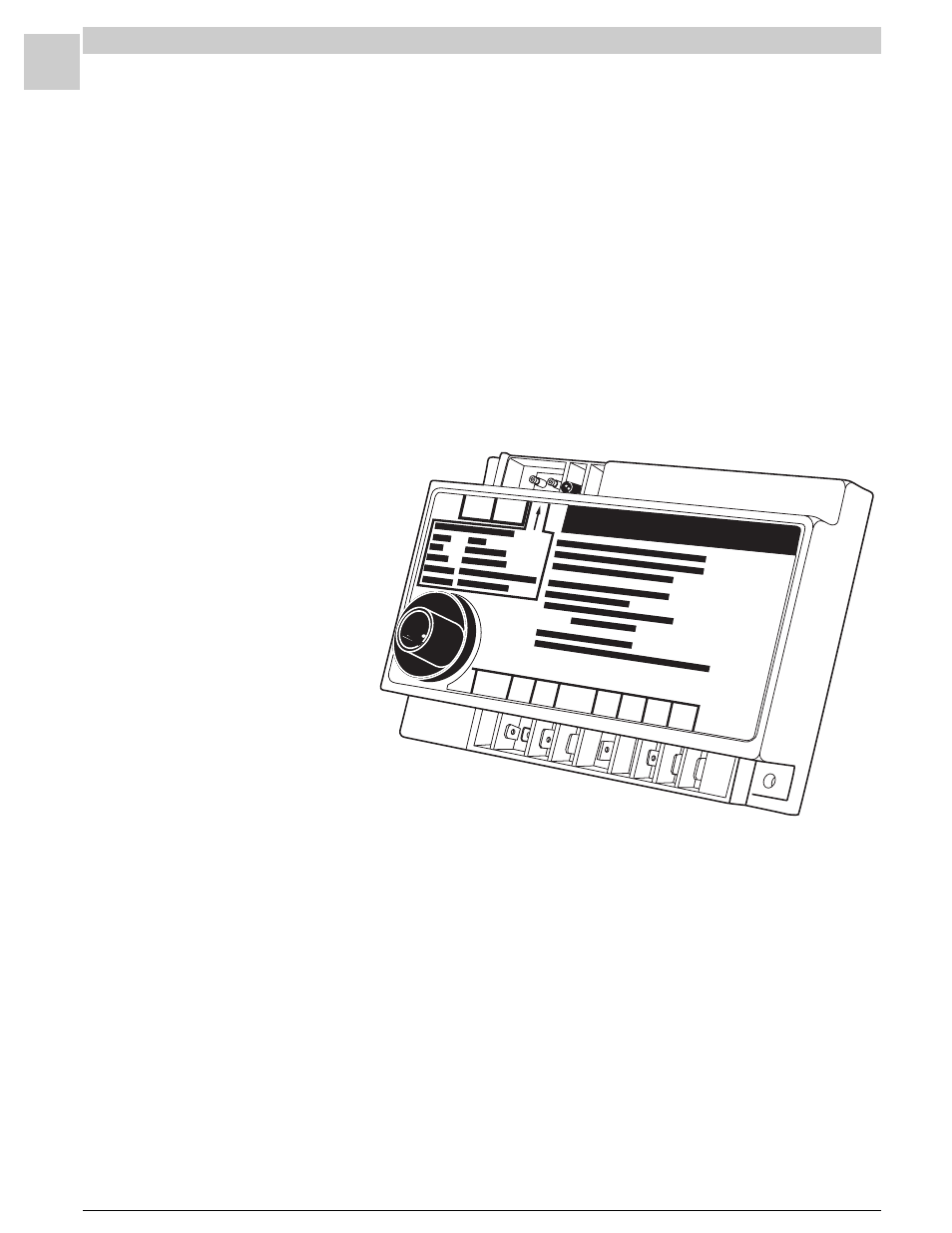

FIGURE 5-6 Fenwal Triton 2461D Ignition Control
