Service Reference Manual UNIT TEAR DOWN
3-5
SRM-HW/HWC 8/99

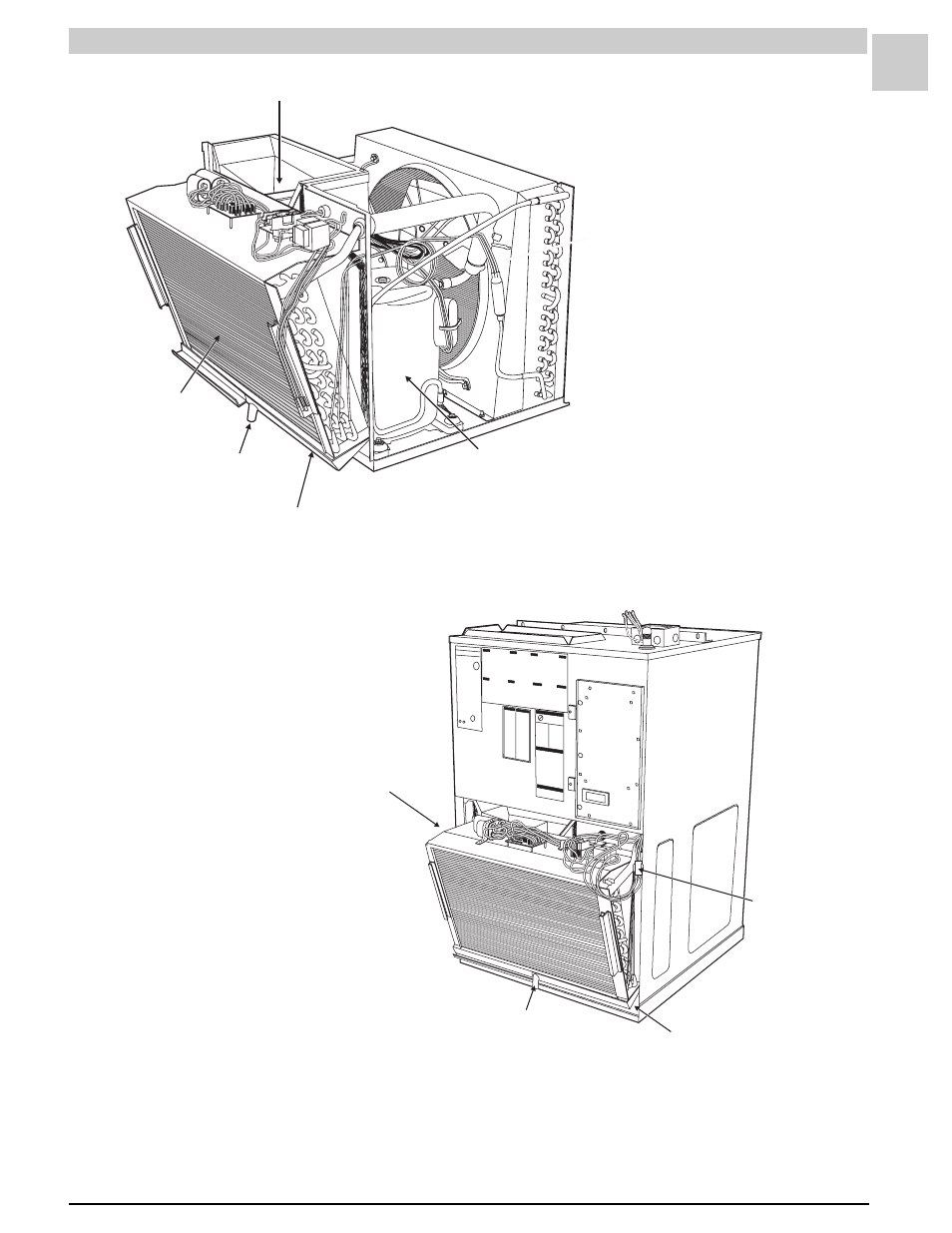

EVAPORATOR BLOWER MOTOR
COMPRESSOR
EVAPORATOR DRAIN PAN
EVAPORATOR
EVAPORATOR DRAIN
TUBE CONNECTION
Figure 3-3
LOW VOLTAGE
MOLEX PLUG
PERMAGUM SEAL
EVAPORATOR DRAIN
TUBE CONNECTION
DRAIN HOSE (NOT PICTURED)
ARMSTRONG P/N 03613A001
17" LONG
.63" (5/8") I.D.
.13" WALL THICKNESS
CHASSIS SHOWN
PARTIALLY REMOVED
Figure 3-4
