15

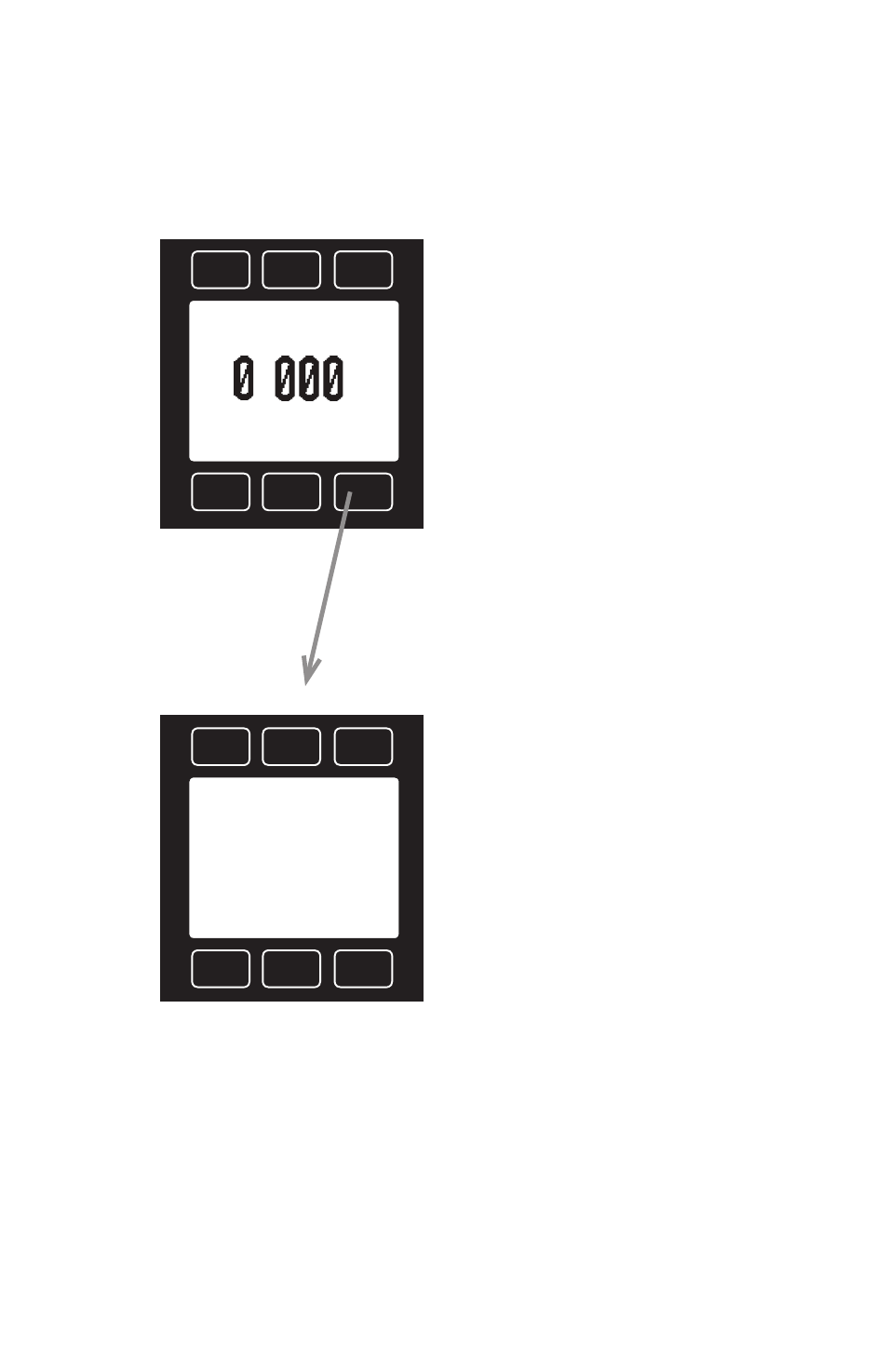

The Main display shows the pressure in
the units specified at time of order.
By hitting the MENU button at the
bottom right of the screen you will
enter the Select Menu display.
DISPLAYS AND MENUS P-Series GAUGES
(Displays and Menus for PC and PCR Controllers are shown beginning page 21.)
The device screen defaults to Main display as soon as power is applied to the meter.
Select Menu
From Select Menu you can interact
with your RS-232 / RS-485 settings
or read manufacturer’s data.
Push MAIN to return to the Main display.
RS232
COMM
MFG
DATA
MAIN
MISC
Select Menu
MENU
TARE V
PRESS
PSIG
PSIG
+13.60
+
.
Main
Note: P-Series Pressure Gauges may also be ordered as portable devices as
described on page 45.
