HDC-401E

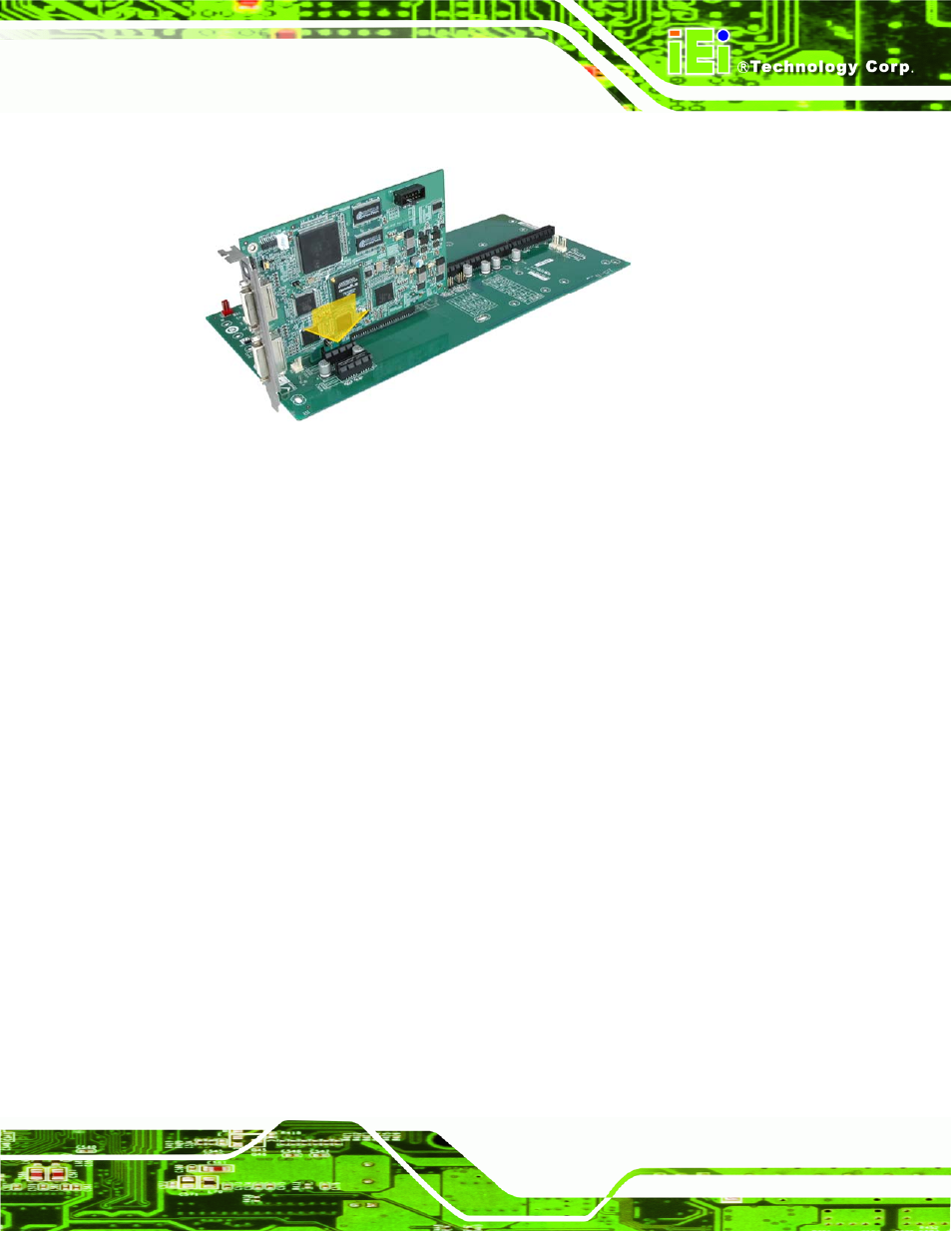

Figure 2-1: HDC-4x Series Installation
Step 4: Insert a retention screw through the top of the video capture card external
bracket into the chassis to secure the card to the chassis. Step 0:
2.4 DVI-I Devices Installation
Various DVI-I devices can be connected to the HDC-4x Series. Video input and video
output are all supported. Follow the steps below to connect the DVI-I devices to the
HDC-4x Series.
Step 1: Insert the DVI-I connector from the cable into the DVI-I input connector on the
HDC-4x Series. Make sure the connection is secure.
Step 2: Insert the DVI-I connector of the other end of the cable into the DVI-I connector
on the DVI-I device. Make sure the connection is secure.
Step 3: Use another DVI-I cable to connect the DVI-I connector of the DVI-I display
device to the DVI-I output connector on the HDC-4x Series. Step 0:
