HDC-4x Series Video Capture Card
Page 4

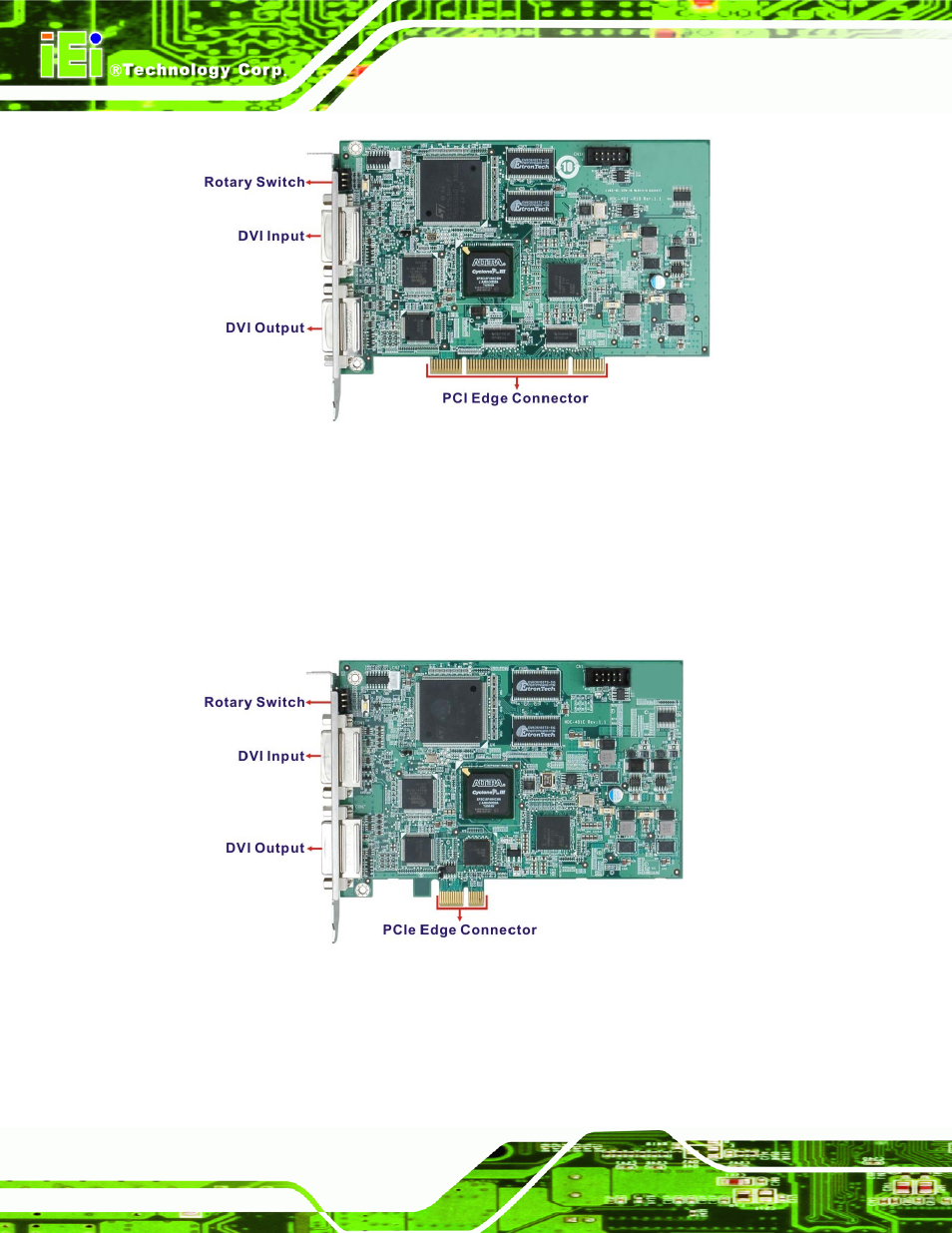

Figure 1-2: HDC-401 Connector Overview
1.4.2 HDC-401E
The HDC-401E comes with one DVI-I input connector and one DVI-I output connector. A
PCIe edge connector on the bottom of the capture card enables the HDC-401E to
interface with a motherboard.
Figure 1-3: HDC-401E Connector Overview
