Server System SR1500AL User’s Guide
13

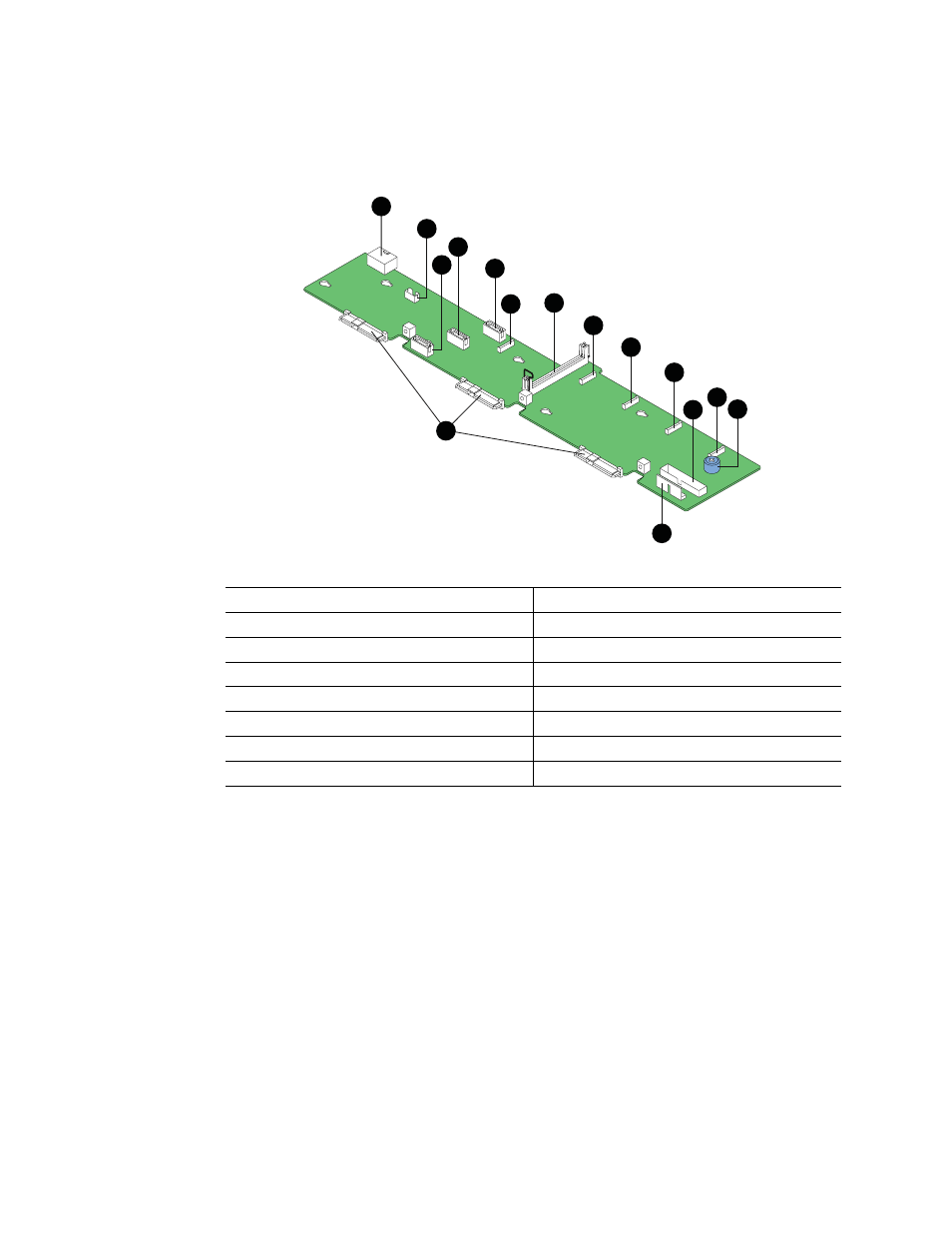

Figure 9. Passive Backplane Components
RAID Support
The Intel
®
Server System SR1500AL provides an embedded SATA controller that
supports both 1.5 and 3.0 Gbps data transfer rates. The Intel
®
Server System
SR1500ALSAS provides SAS and SATA support. Both systems can be configured for
RAID 0, 1, and 10.
The Intel
®
Server System SR1500ALSAS can be configured for SW RAID 5 by using the
Intel
®
RAID Activation Key AXXRAKSW5 accessory.
For information on configuring RAID, see the RAID software user’s guide that is
included on the Intel
®
Server Deployment Toolkit 2.0 CD.
A.
Backplane Power
I.
Fan 3 Power
B.
USB Floppy Connector
J.
Fan 2 Power
C.
SATA 0
K.
Front Panel Connector
D.
SATA 1
L.
Fan 1 Power
E.
SATA 2
M.
Screw
F.
Fan 5 Power
N.
Front Panel USB
G.
Bridge Board Connector
O.
Backplane Connectors
H.
Fan 4 Power
TP02171
E
D
B
F
A
G
H
L
K
M
J
N
I
O
C
