Figure 5. recovery jumpers – Intel SR1500AL User Manual
Page 31
Intel
®
Server System SR1500AL User’s Guide
9

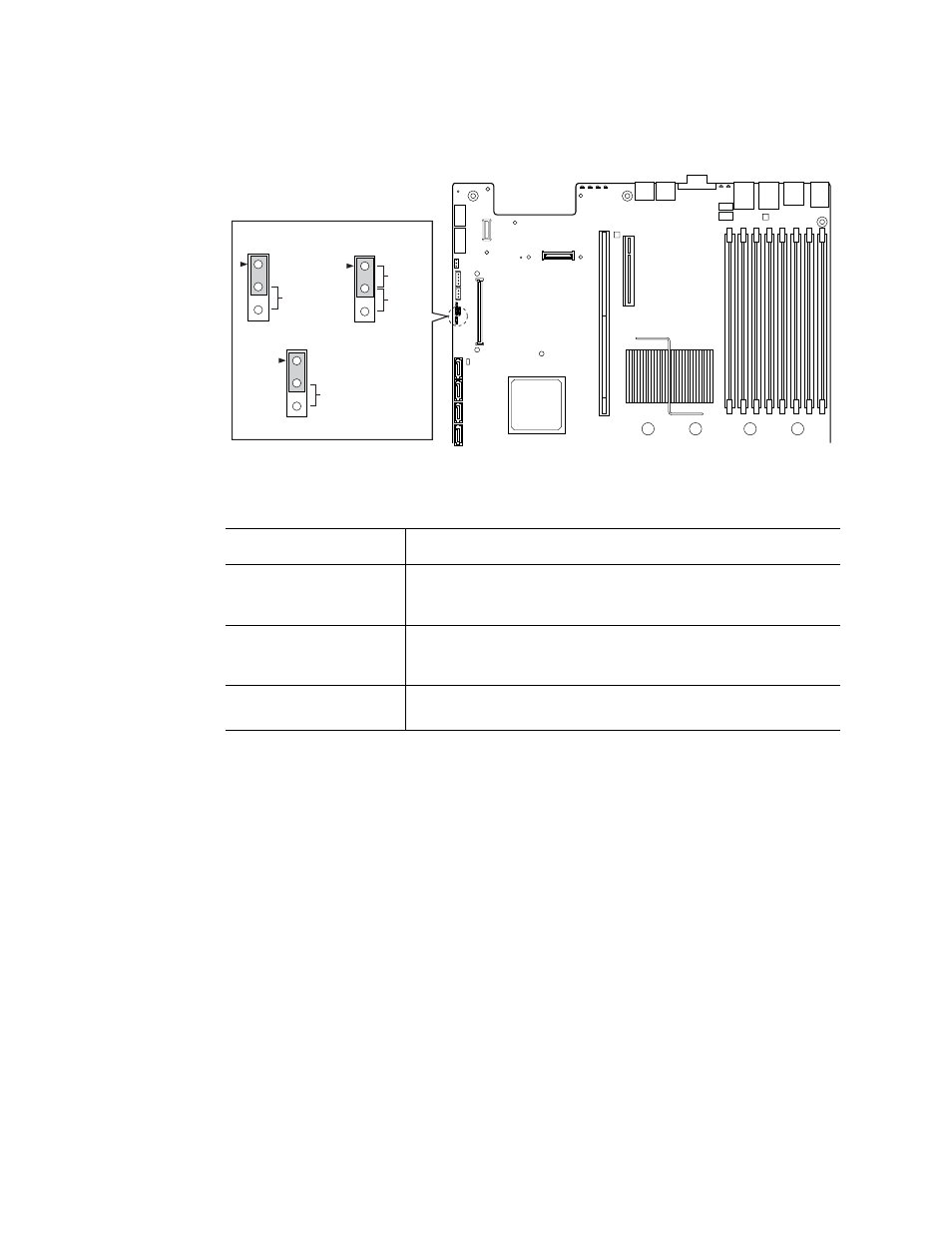

Figure 5. Recovery Jumpers
Jumper Name
Jumper Purpose
CMOS Clear
If pins 2-3 are jumpered, the CMOS settings will be cleared on the
next reset. These pins should be jumpered on 1-2 for normal
operation.
Password Clear
If pins 2-3 are jumpered, administrator and user passwords will be
cleared on the next reset. These pins should be jumpered on 1-2 for
normal operation.
BMC Force Update Mode
If pins 2-3 are jumpered, BMC Force Update Mode is enabled.
These pins should be jumpered on 1-2 for normal operation.
TP02080
3
2
Password
Reset
J1D2
J1D3
3
2
Clear
CMOS
BMC Force
Update Mode
3
2
J1D1
Disable
Enable
