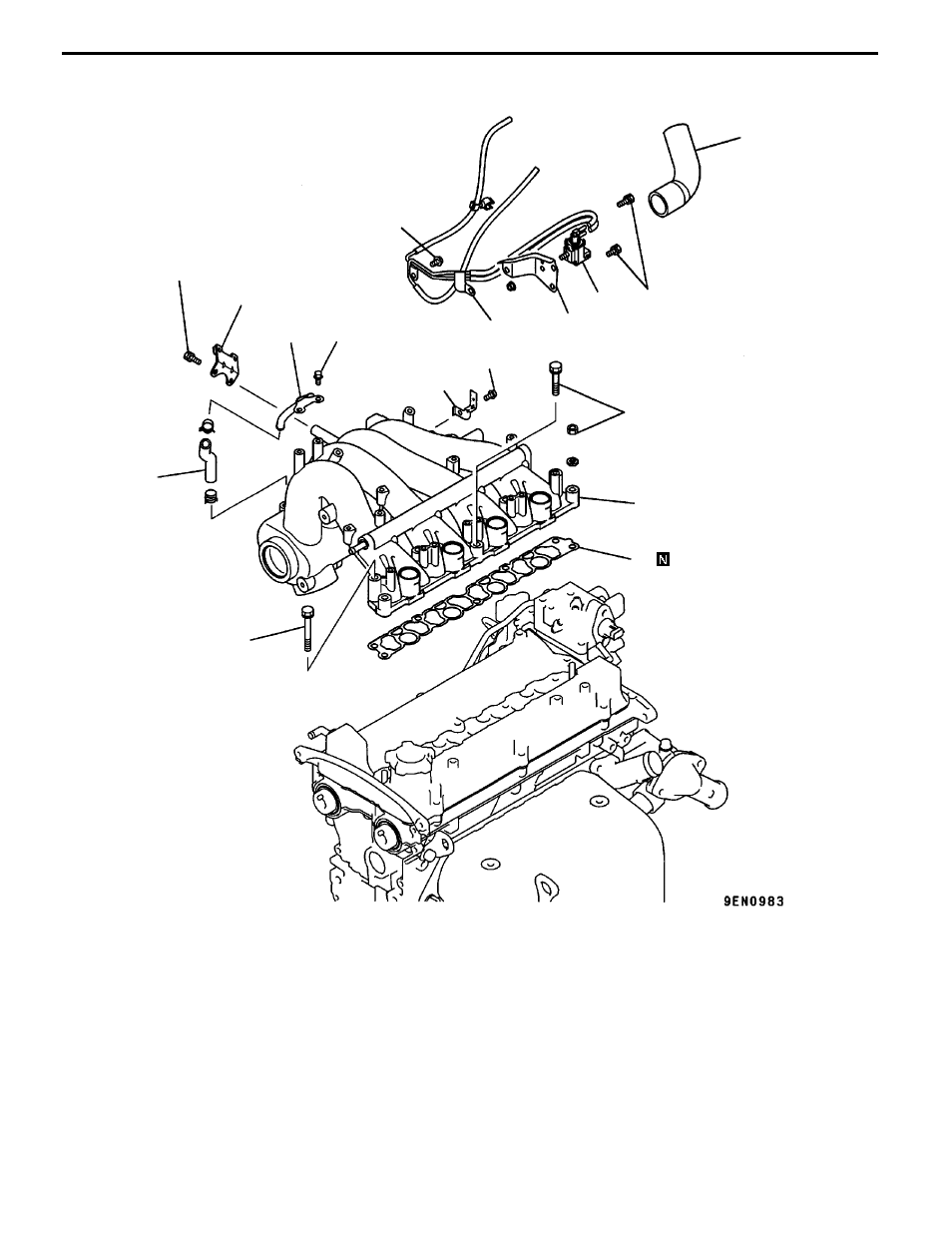

4G9 ENGINE (E - W) - Intake Manifold (GDI)
11A-6a-2
PWEE9502-D
E
Jun. 1998 Mitsubishi Motors Corporation Added
REMOVAL AND INSTALLATION
11 Nm
19 Nm
9 Nm
8
10
1
9
5
6
7
3
2
4
11 Nm
11 Nm
9 Nm
19 Nm
Removal steps
1. Air by-pass hose
2. Vacuum pipe and hose
3. Bracket
4. Solenoid valve
5. Connector bracket
6. Accelerator cable bracket
7. Vacuum hose
8. Vacuum pipe
9. Intake manifold
10. Intake manifold gasket
