4G9 ENGINE (E–W) –
Intake and Exhaust Manifold
11A-6-3
PWEE9502-B
E
Nov. 1996
Mitsubishi Motors Corporation
Revised

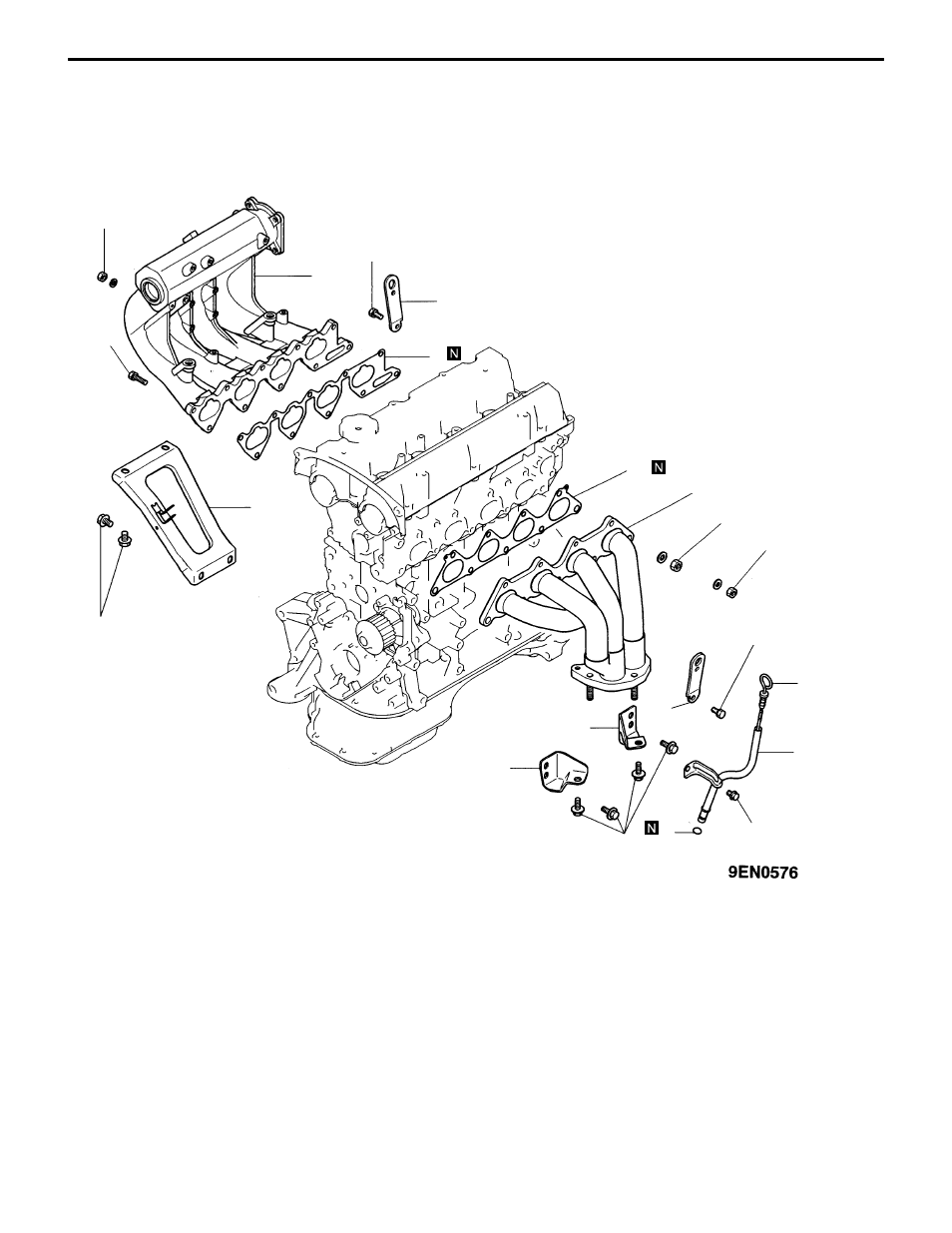

REMOVAL AND INSTALLATION
20 Nm
20 Nm
Bolt with head mark “4”
Bolt with head mark “7”
31 Nm
29 Nm
18 Nm
12 Nm
19 Nm
19 Nm
14 Nm
7
6
5
8
9
10
11
12
4
1
3
2
Bolt with head mark “4”
Bolt with head mark “7”
12 Nm
19 Nm
Removal steps
1. Engine hanger
2. Intake manifold stay
3. Intake manifold
4. Intake manifold gasket
5. Oil level gauge
6. Oil level gauge guide
7. O-ring
8. Engine hanger
"
A
A
9. Exhaust manifold bracket A
"
A
A
10. Exhaust manifold bracket B
11. Exhaust manifold
12. Exhaust manifold gasket
PWEE9502-I
E
Mar. 2001
Mitsubishi Motors Corporation
Revised
