11a-5a-4, 4g9 engine (e-w), Removal and installation Page 56
Page 56
www.mivec.co.nz
4G9 ENGINE (E-W) -
Throttle Body and EGR System (GDI)
11A-5a-4

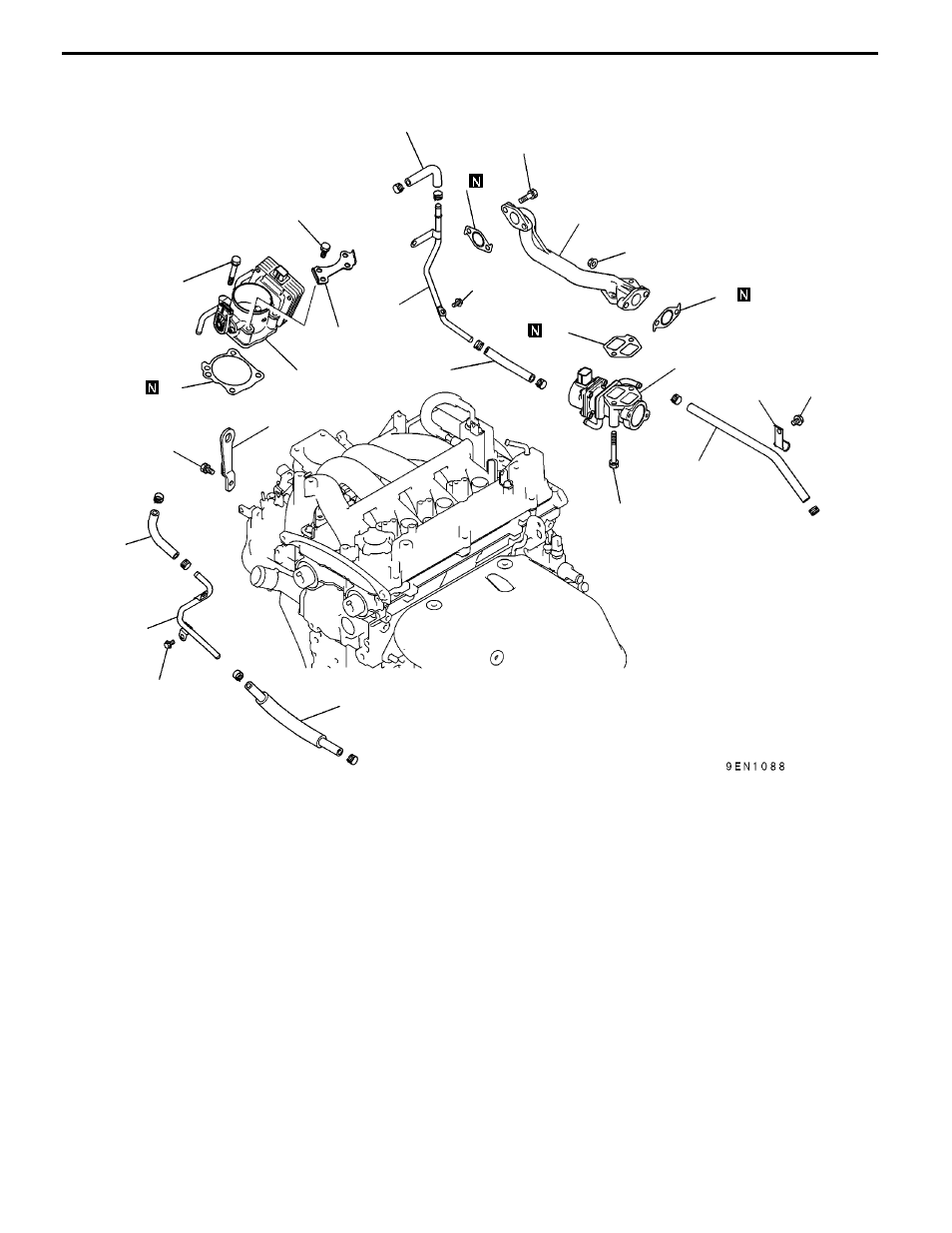

REMOVAL AND INSTALLATION
13 Nm
23 Nm
18 Nm
15
6
11
1
9
2
8
4
7
14
3
16
11 Nm
18 Nm
18 Nm
13
18 Nm
14
12
5
11 Nm
10
18 Nm
Removal steps
1. Water hose
2. Water hose
3. Water hose
4. Water hose
5. Water hose
6. Water hose clamp
7. Water pipe
8. Water pipe
9. Throttle body stay
10. Throttle body
"AA 11. Throttle body gasket
12. EGR valve
13. EGR valve gasket
14. EGR valve support
15. Gasket
16. Engine hanger
PWEE9502-H
E
July 2000
Mitsubishi Motors Corporation
Revised
