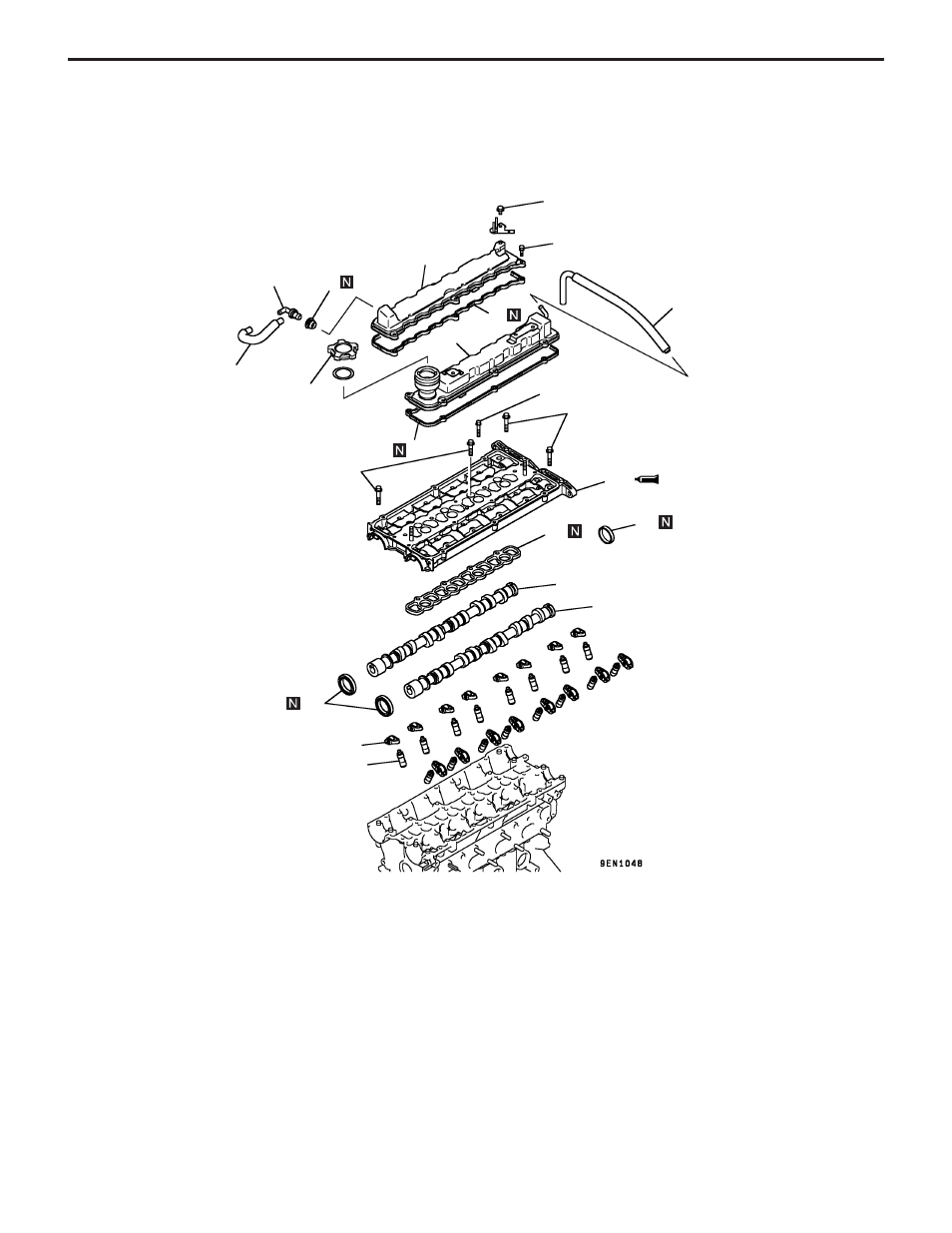

4G9 ENGINE (E–W) – Rocker Arms and Camshafts
11A-8-3a
PWEE9502
E
May 1995 Mitsubishi Motors Corporation
REMOVAL AND INSTALLATION GALANT (From 2001 model)>
21 Nm
21 Nm
11 Nm
2
1
3
5
15
10
8
12
14
6
10 Nm
7
9
3.5 Nm
11
13
16
17
4
Removal steps
1. P.C.V. hose
2. P.C.V. valve
3. P.C.V. valve gasket
4. Breather hose
5. Oil filler cap
6. Rocker cover, intake
7. Rocker cover gasket, intake
8. Rocker cover, exhaust
9. Rocker cover gasket, exhaust 10. Oil seal
11. Circular packing
"IA 12. Beam camshaft cap
13. Beam camshaft cap gasket
14. Intake camshaft
15. Exhaust camshaft
16. Rocker arm
AA" "FA 17. Lash adjuster
