4G9 ENGINE (E-W) - Rocker Arms and Camshafts
11A-8-8
PWEE9502 E May 1995 Mitsubishi Motors Corporation

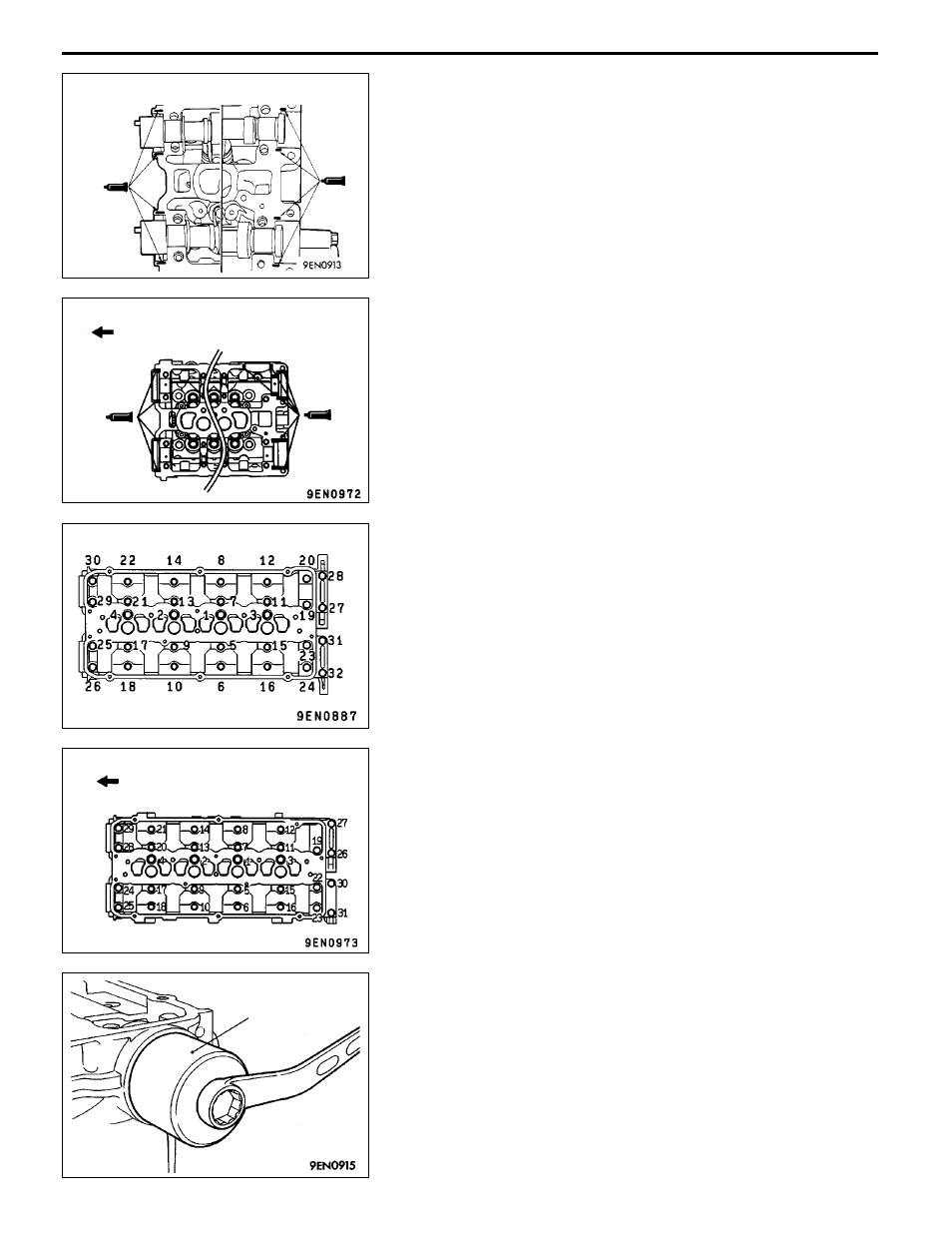

(4) Apply sealant to the illustrated position of the cylinder
head upper surface.
Specified sealant:
Mitsubishi Genuine Part No. MD970389
or equivalent
(5) Install the beam camshaft cap before the sealant applied
becomes dry and hard.
(6) Tighten the bolts to the specified torque in the order shown
in the illustration.
M6 bolt 11Nm
M8 bolt 21Nm
Caution
The M8 bolts plated green cannot be reused. Always
replace such bolts with M8 bolts finished by glossy
plating which are available separately.
The M8 bolt finished by glossy plating is reusable;
if the caps have already been assembled with such
bolts, then reassemble the caps using them.
(7) Install the camshaft oil seal (use the special tool) and
the thrust case
before the sealant applied becomes dry and hard.
(8) Wipe off squeezed out excess sealant from the
circumference of the beam camshaft cap.
SPACE STAR (1999 model), SPACE RUNNER>
PWEE9502-H E July 2000 Mitsubishi Motors Corporation Revised
Engine front side
SPACE STAR (From 2001 model), GALANT, PAJERO io>
SPACE STAR (1999 model), SPACE RUNNER>
Engine front side
SPACE STAR (From 2001 model), GALANT, PAJERO io>
MD998713
