3800g User’s Guide

12 - 5

Standard Cable Pinouts

USB

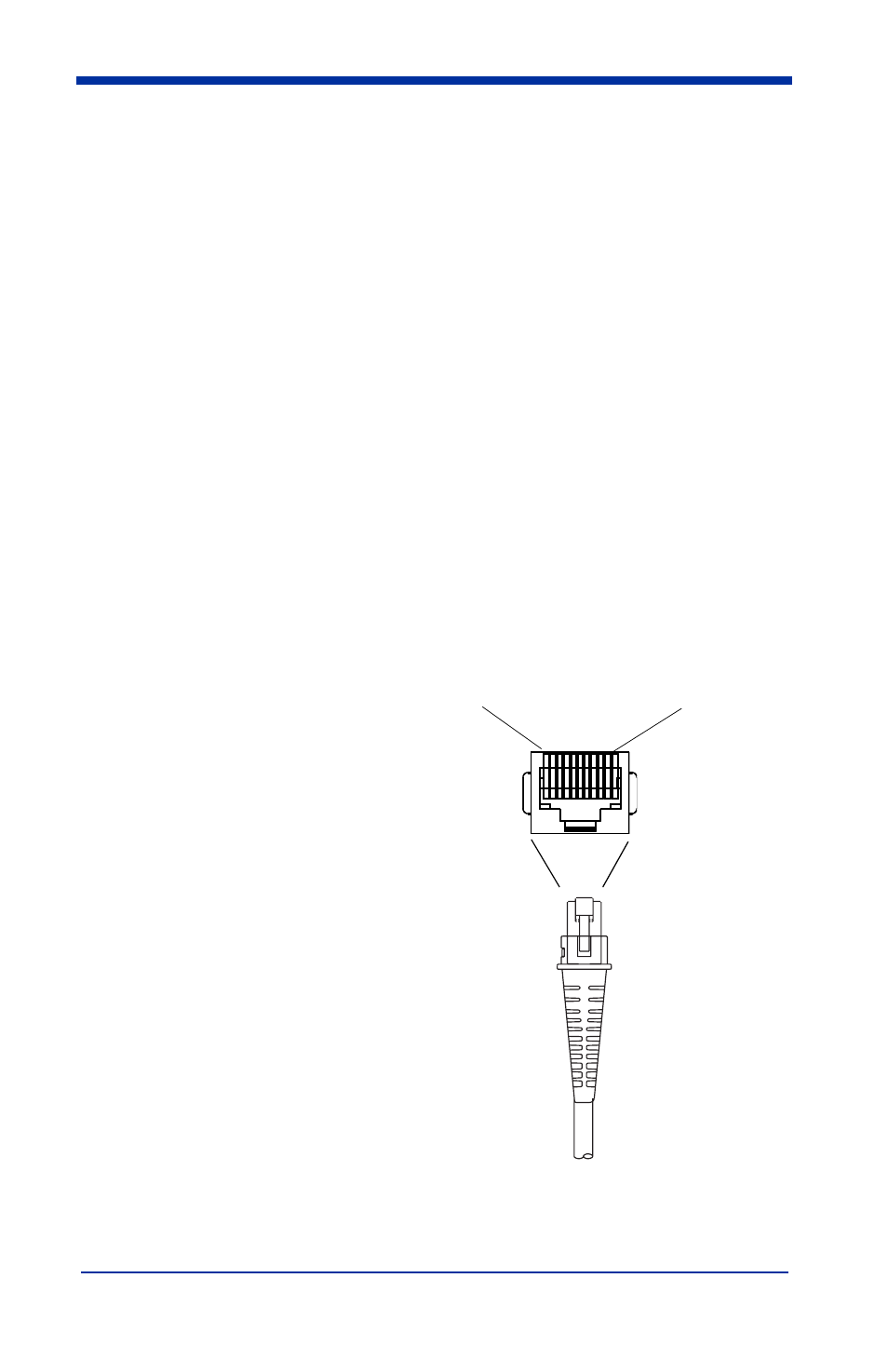

10 Pin Modular Plug

connects to the imager handle

1

2

D

ata +

3

T

ied to supply power

4

S

upply ground

5

6

7

5

volt supply power input

8

9

10

Data -
