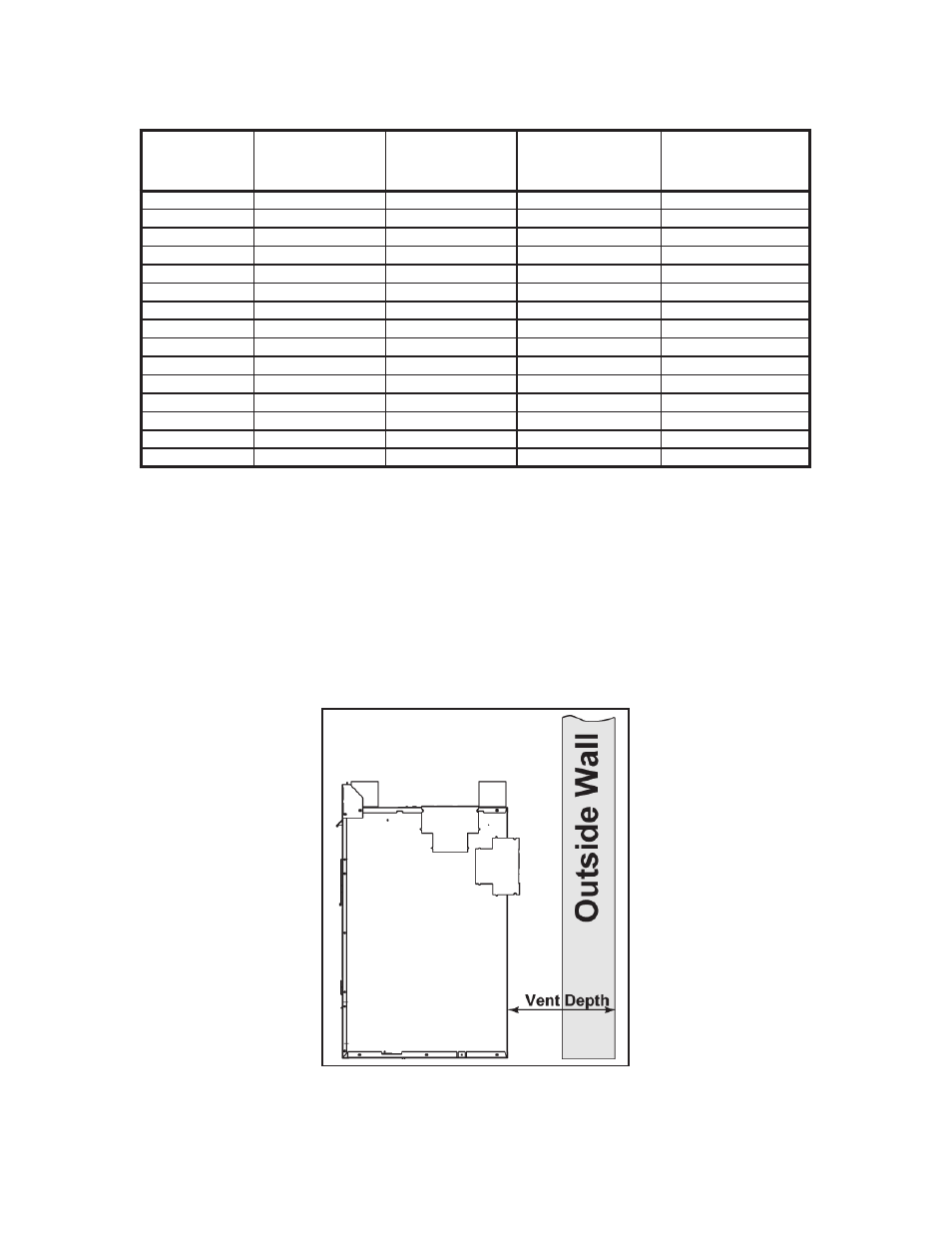

Vent depth is measured from the back of the appliance to the outer edge of the exterior wall. See Table 1 and Figure 1.
Figure 1 - Measuring Required Vent Depth
Table 1
TRAP CAP SPECIFICATION CHART
Appliance
DVP-TRAPK1
Top Vent
Depth
DVP-TRAP1
Rear Vent
Depth
DVP-TRAPK2
Top Vent
Depth
DVP-TRAP2
Rear Vent
Depth
Novus 4-1/2 in. to 6-1/4 in. 3-1/2 in. to 4-3/4 in. 7 in. to 11 in. 5-1/2 in. to 9-1/2 in.
NXT 4-1/8 in. to 5-7/8 in. 4-5/8 in. to 6-3/8 in. 6-1/2 in. to 10-1/2 in. 7-1/4 in. to 11-1/4 in.
Caliber 4-1/8 in. to 5-7/8 in. 3-5/8 in. to 5-3/8 in. 6-1/2 in. to 10-1/2 in. 6-1/4 in. to 10-1/4 in.
Maxus 4-1/2 in. to 6-1/4 in. 4-1/8 in. to 5-7/8 in. 6-7/8 in. to 10-7/8 in. 6-3/4 in. to 10-3/4 in.
GNTC50 5 in. to 6-3/4 in. 4-7/8 in. to 6-5/8 in. 7-3/8 in. to 11-3/8 in. 7-3/8 in. to 11-3/8 in.
Designer* 4 in. to 5-3/4 in. 5-3/4 in. to 7-1/2 in. 6-3/8 in. to 10-3/8 in. 8-1/8 in. to 12-1/8 in.
Titan 3-1/2 in. to 5-1/4 in. N/A 6 in. to 10 in. N/A
6000 2-3/4 in. to 4-1/2 in. 3-1/8 in. to 4-7/8 in. 5-1/4 in. to 9-1/4 in. 5-5/8 in. to 9-5/8 in.
8000 2-3/4 in. to 4-1/2 in. 3-1/8 in. to 4-7/8 in. 5-1/4 in. to 9-1/4 in. 5-5/8 in. to 9-5/8 in.
Olympian 3-1/2 in. to 5-1/4 in. N/A 6 in. to 10 in. N/A
Multisided 7-1/2 in. to 9-1/4 in. 3-1/8 in. to 4-7/8 in. 10 in. to 14 in. 5-5/8 in. to 9-5/8 in.
Gem 4-1/2 in. to 6-1/4 in. N/A 7 in. to 11 in. N/A
SL units N/A 3-1/8 in. to 4-7/8 in. N/A 5-5/8 in. to 9-5/8 in.
ICON 3-1/2 in. to 5-1/4 in. N/A 6-1/2 in. to 10-1/2 in. N/A
GDST5244I** 4 in. to 5-3/4 in. N/A 6-3/4 in. to 7-3/4 in. N/A
* Top vented appliance - Designer needs a DVP12 after the elbow.
** GDST5244I requires a DVP12 and DVP6 after the elbow.
