Hustler Turf ATZ 928150 - Manual (Page 9)

108604 10/08 2-3

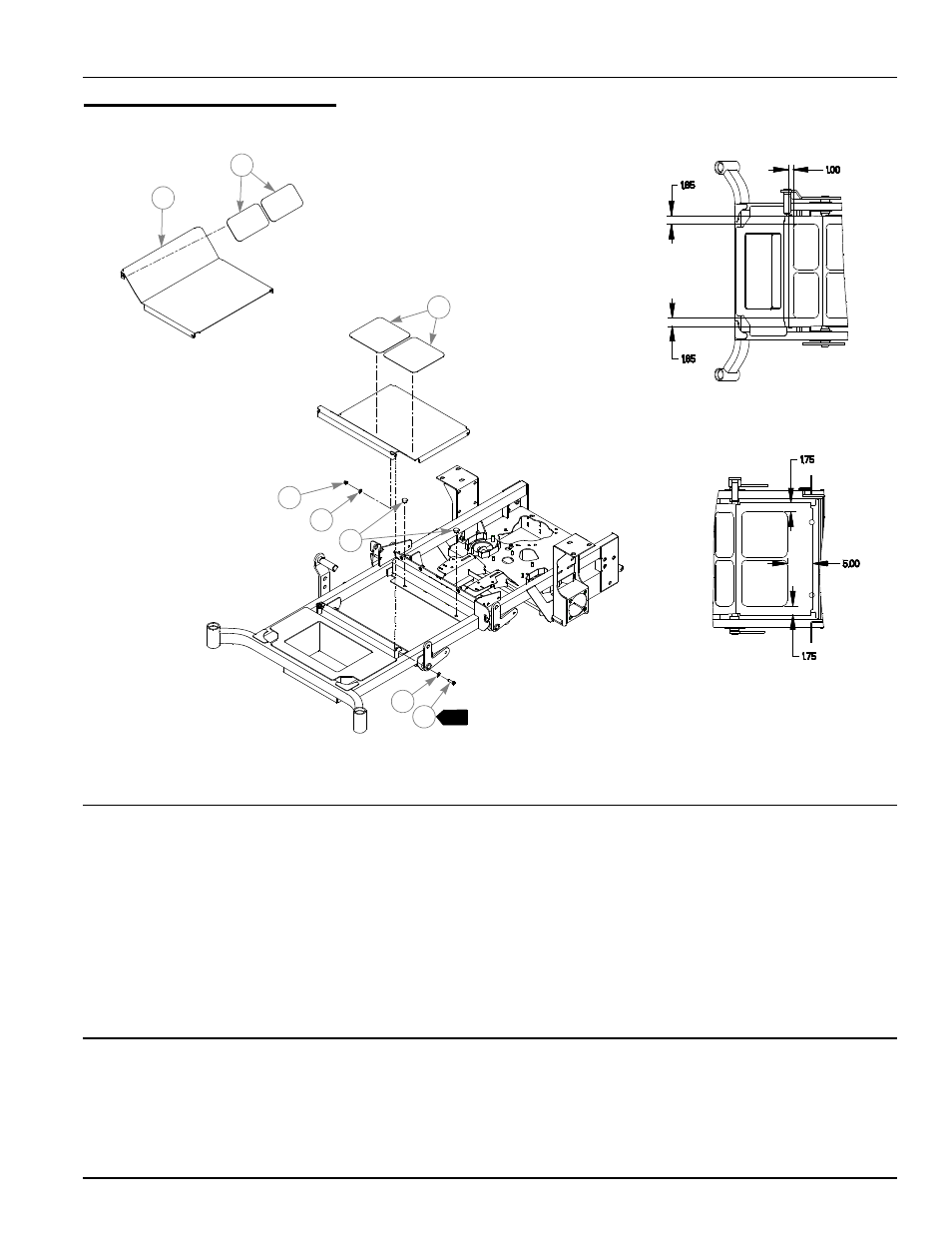

Footrest Assembly
NOTES:
1. Do not tighten, Floor must be able to pivot on these bolts.
ITEM
NO.
SERVICE
PART NO.
MFG. PART
NO.
QTY. DESCRIPTION
1 359547 359547 2 STEP TREAD
2 395533 395533 1 FLOOR PLATE
3 305615 305615 2 STEP TREAD
4 086660 086660 2 NT .375-16 HX LK NY
5 767954 767954 4 FW .406 X .812 X .060 SAE HD ZN
6 052860 052860 2 CS .375-16 X 1.25 HX G5 ZNYC
7 781880 781880 2 RUBBER BUMPER
1
2
1
3
4
5
5
6
7
